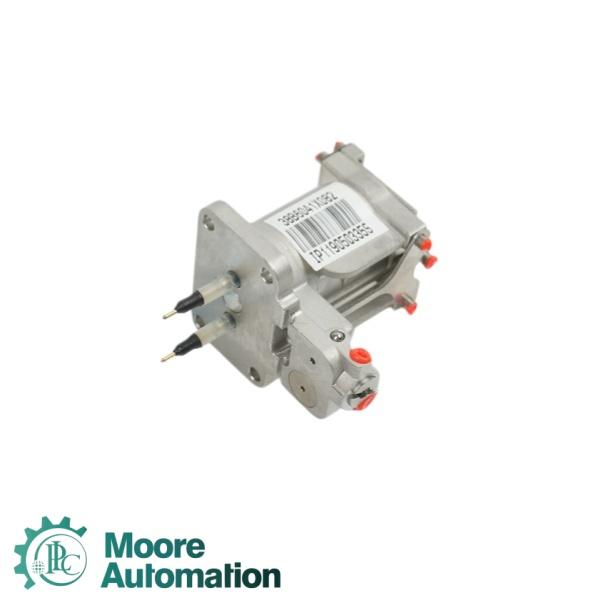

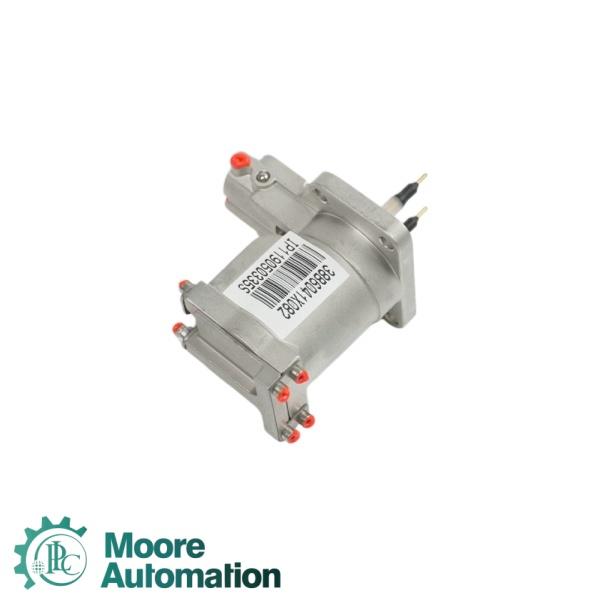

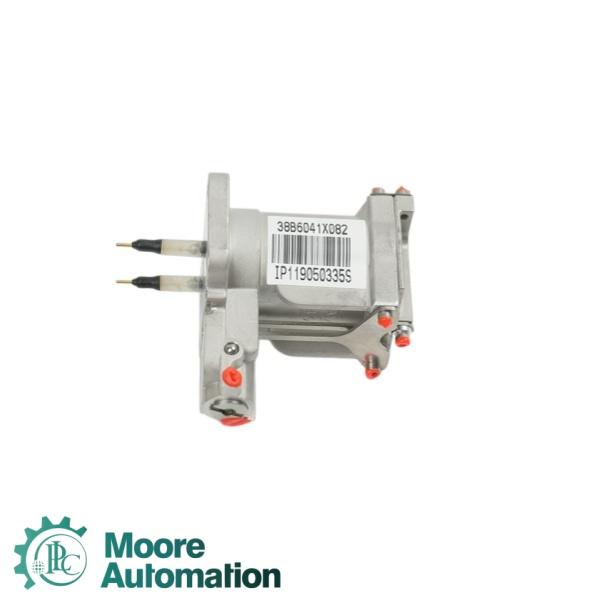

Fisher 38B6041X082 I/P Converter Kit Assembly

The Fisher 38B6041X082 is a precision industrial Current-to-Pressure converter kit assembly engineered as an internal electro-pneumatic module for Fisher FIELDVUE DVC5000 and DVC6000/DVC6200 series digital valve controllers. It serves as the primary translation interface within the controller housing, taking a low-power electrical analog signal from the main circuit board and converting it dynamically into a proportional pneumatic pilot pressure. This converted micro-pneumatic signal is fed directly into the relay stage to position the main process control valve. Packaged as a modular field-replaceable kit with essential mounting elements and internal gasket interfaces, it allows for quick drop-in maintenance to ensure ongoing loop calibration, optimal air usage efficiency, and high-linearity process throttling.

Operational Input Current: 4 to 20 mA

Maximum Loop Circuit Voltage: 42V DC maximum

Operating Ambient Temperature: -40°C to 85°C

Storage Temperature Capability: -55°C to 90°C

Signal Conversion Accuracy: ≤ ±0.5% of total signal span

Dynamic Response Timing: ≤ 0.2 seconds

Q1:What core industries does the Fisher brand serve, and what is its primary market role?

A: Fisher is a global market leader in severe-service control valves, regulators, and digital valve controllers. Its products are primarily utilized in capital-intensive industries with demanding process safety and flow requirements, such as Oil & Gas, Petrochemical, Power Generation, Chemical Processing, and Life Sciences. The brand is trusted to manage extreme pressures, cryogenic temperatures, and highly corrosive fluids.

Q2: What distinguishes Fisher’s control valve design technology from budget competitors?

A: Fisher distinguishes itself through advanced material science and flow diagnostics. Key proprietary technologies include Fisher Whisper Trim™ and Cavitrol™, which engineered internal geometries designed to mitigate high-velocity hydrodynamic noise and damaging cavitation. Furthermore, their continuous investment in computational fluid dynamics allows them to customize valve interiors to resist premature erosion and severe wear.

Q3: How does the Fisher brand address industrial digitalization and the "smart factory" trend?

A: Fisher bridges the gap between mechanical hardware and digital automation through its FIELDVUE™ series of Digital Valve Positioners and ValveLink™ diagnostic software. Instead of treating valves as isolated mechanical components, Fisher transforms them into smart field devices that track internal friction, air consumption, and assembly degradation, enabling operators to practice predictive maintenance.
