Product CPV10-GE-DN2-8 525630

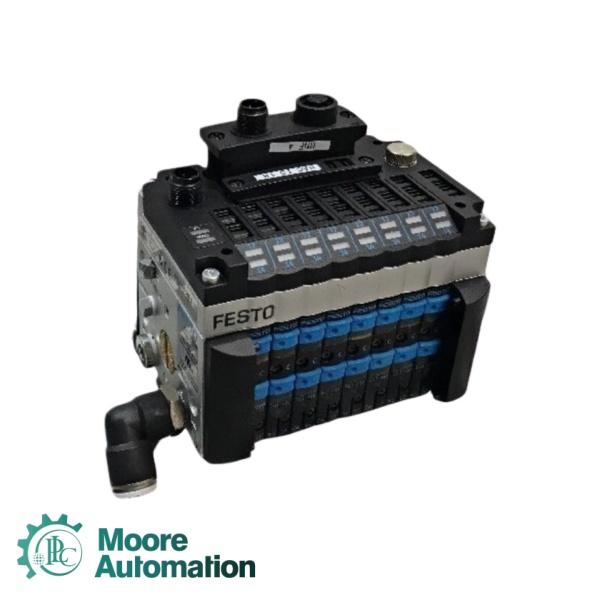

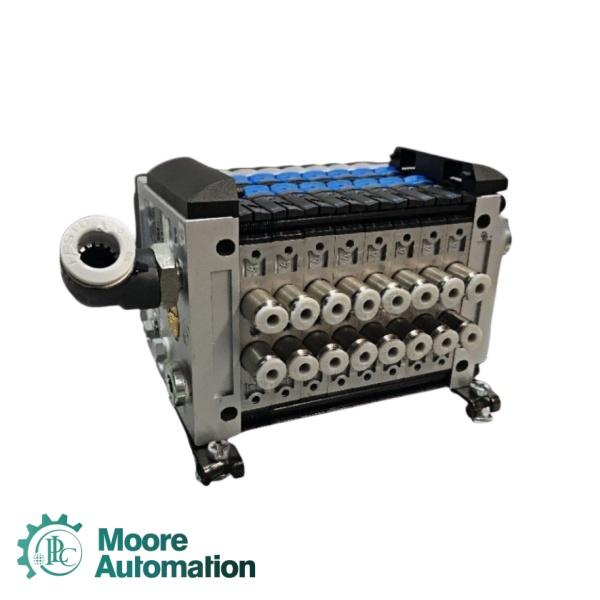

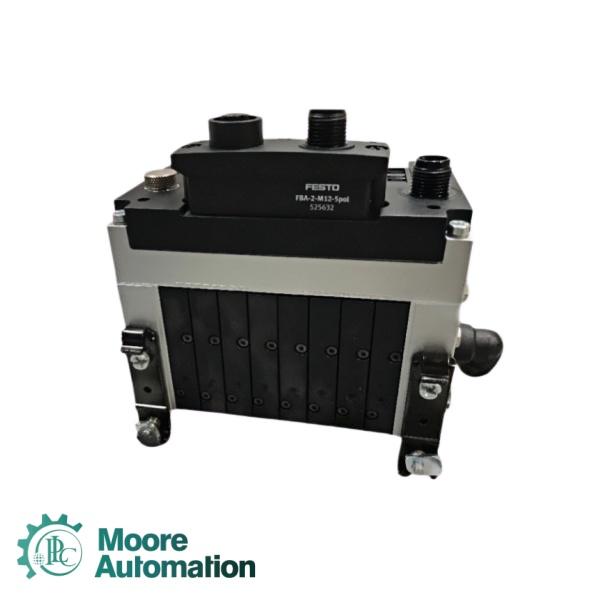

The CPV10-GE-DN2-8 525630 is an Electrical Interface Module manufactured by Festo for the CPV10 series valve terminals . It acts as a critical communication bridge, converting digital control signals into pneumatic actions for compact automation systems . This module features a direct DeviceNet fieldbus interface for seamless integration into industrial networks .

Technical Specifications

Features

➟Direct DeviceNet Fieldbus Integration: The module features a built-in DeviceNet slave interface, allowing direct connection to DeviceNet networks without additional gateway hardware. It can be added to a network slave list after EDS file installation .

➟High Channel Density for Compact Systems: With 16 inputs and 8 outputs, the module provides substantial I/O capacity in a compact form factor, making it suitable for complex automation tasks in space-constrained environments .

➟Visual Display for Local Monitoring: The integrated 320 × 240 dot display with 16 gradation colors enables clear visualization of system data, status monitoring, and local diagnostics without requiring a separate HMI device .

➟Ample Screen Data Storage Capacity: With 20 Mbytes of screen data capacity, the module can store complex screens, multiple image files, and detailed graphical representations using BMP or JPG formats .

➟Flexible Data Handling Capabilities: The interface supports up to 1,000 numeral units and scale settings, enabling accurate data input, real-time monitoring, and precise process control across a wide range of applications .

FAQ

➪ Q1: What is the difference between pneumatic and electric automation technology from Festo?

A1: Pneumatic drives use compressed air to generate linear or rotary motion and are ideal for simple, cost-effective applications such as clamping, lifting, gripping, and blocking . Electric drives use servo or stepper motors driving ball screws or toothed belts, offering higher precision, stiffness, and dynamic response . Electric linear actuators can achieve speeds up to 10 m/s, acceleration up to 50 m/s², and repeatability of ±15 µm . Pneumatic servo positioning (soft stop) is a "soft" positioning technology—because air is compressible, the actuator can be pushed away by external force when in a controlled position .

➪ Q2: What are the key considerations when selecting a pneumatic cylinder from Festo?

A2: Key considerations include: operating pressure (typically up to 12 bar) , cylinder type (single-acting vs. double-acting, piston rod vs. rodless), stroke length, mounting style, and environmental conditions such as temperature, humidity, and corrosive exposure . Festo also offers standard cylinders conforming to ISO standards including circular (ISO 6432), compact (ISO 21287), and profile/rod cylinders (ISO 15552) . For specialty applications, options include guided cylinders, tandem cylinders, multi-position cylinders, and bellows cylinders .

➪ Q3: How does Festo support the design and specification of electric drive systems?

A3: Festo provides the Electric Motion Sizing Tool, an online design tool that helps specifiers and machine builders select correctly sized drives by entering application parameters such as motion profile, mass, speed, and dwell times between movements . The tool factors in intermittent vs. continuous operation duty cycles, vibration conditions, and lubrication requirements . Festo also publishes application notes and white papers on topics including compressed air quality standards (ISO 8573-1), corrosion resistance class (CRC), clean room suitability, and ATEX explosion protection .
