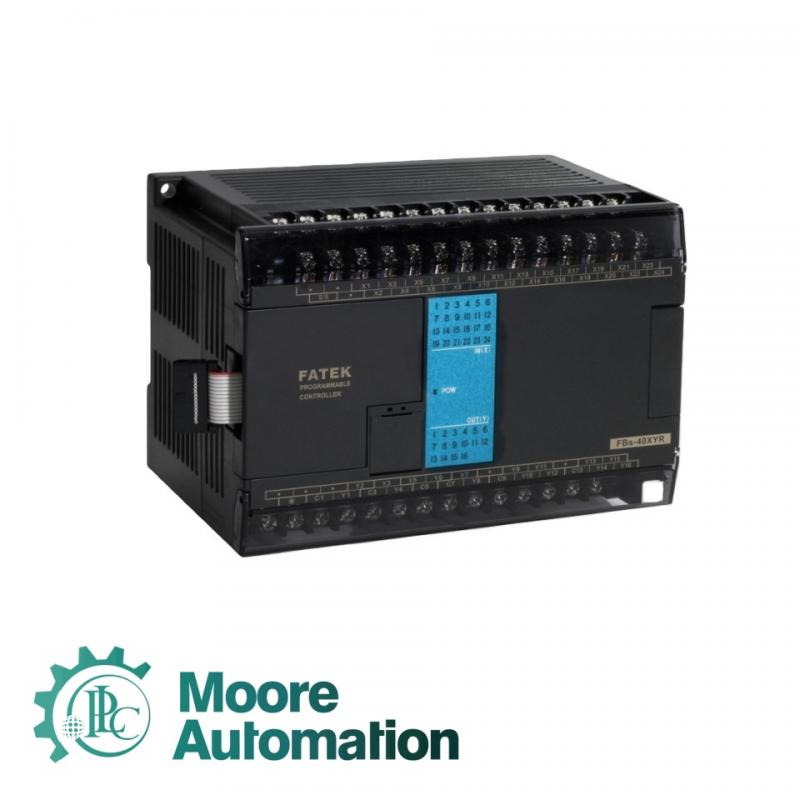

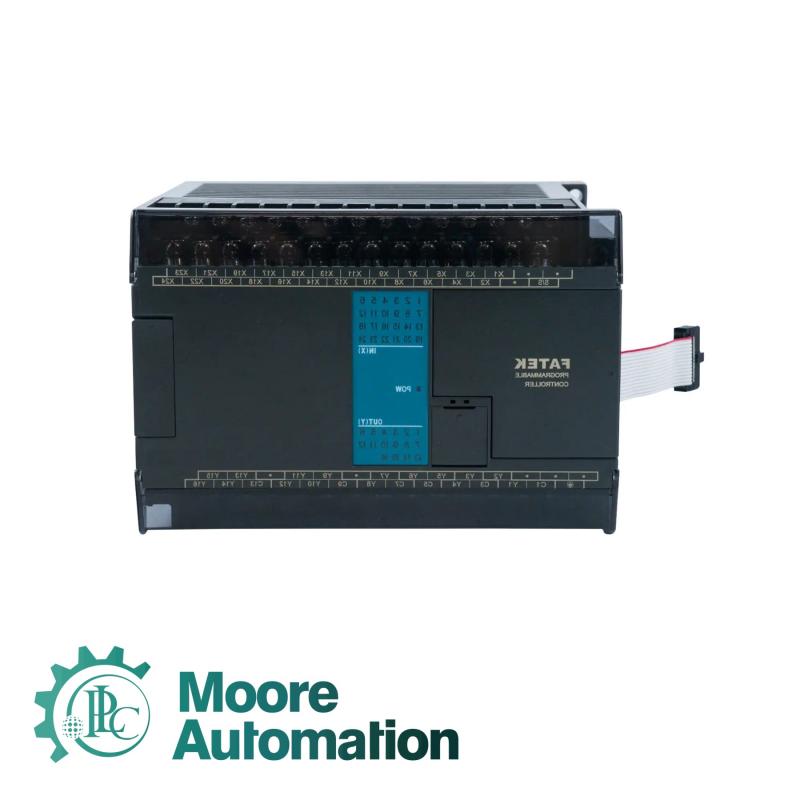

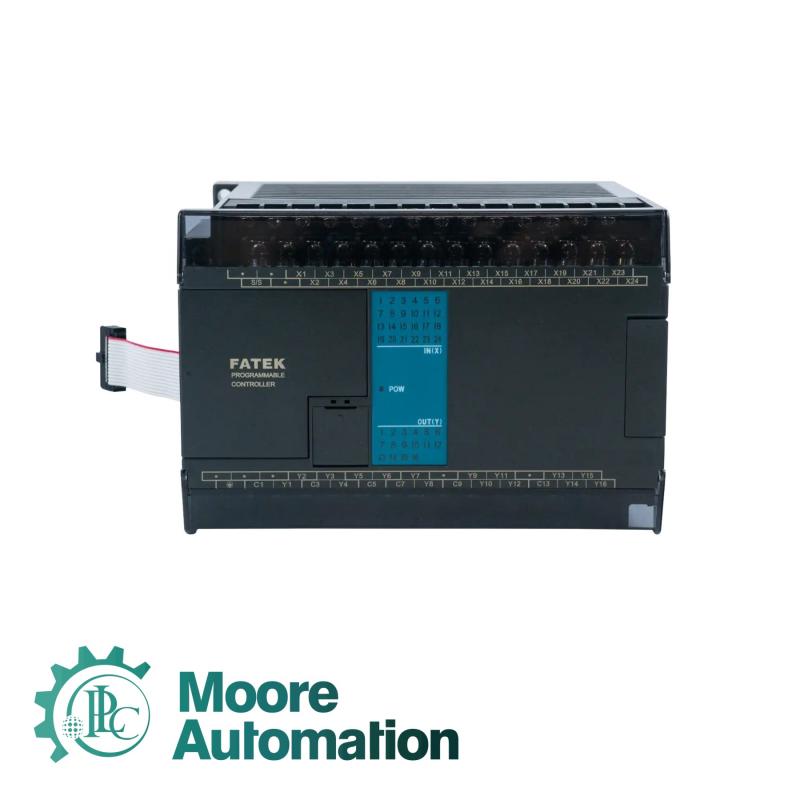

FATEK FBS-40XYR Digital I/O expansion module

FATEK FBS-40XYR Digital I/O expansion module

FATEK FBS-40XYR Digital I/O expansion module

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Taiwan
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Item Info

Product Name: FBS-40XYR

Brand: FATEK

Product Origin:Taiwan

Order(MOQ): 1

Payment: T/T

Shipping Port: Xia men

Contact

John Yang

Email:sales3@askplc.com
Mobile(Whats App):86-18150117685

Description

FATEK FBS-40XYR is a high-performance digital input/output expansion module designed specifically for FBS series PLCs. This module provides additional I/O channels to expand the control capabilities of the PLC system, enabling direct control of more sensors, actuators, and peripheral devices. The module supports high-speed response and optical isolation protection, ensuring stability and anti-interference ability in industrial environments. Adopting a DIN rail installation design, it is easy to install, maintain, and upgrade the system, and supports hot plug identification and configuration through the PLC host.

Key Info

Digital Input (DI): 16 channels, 24 VDC, PNP/NPN optional
Digital output (DO): 16 channels, 24 VDC, transistor output, maximum 0.5A/channel
Input current: minimum 3 mA/channel
Input impedance: ≥ 4.7 k Ω
Input/output isolation: Optical isolation 1 kV DC, inter channel protection
Communication interface: Connected to FBS PLC host through a dedicated bus
Working voltage: DC 24 V ± 10%
Working current: approximately 250 mA (typical load)
Power consumption: up to approximately 6 W
Working temperature: 0 ° C~+55 ° C
Storage temperature: -20 ° C~+70 ° C
Working humidity: 5%~90% RH (no condensation)

FAQ

Q: How many digital inputs and outputs does FBS-40XYR provide?

A: The module provides 16 digital inputs (DI) and 16 digital outputs (DO), totaling 32 channels, and can expand PLC control capabilities.

Q: What are the input voltages and types of modules?

A:The digital input is at 24 VDC level and supports PNP/NPN sensor signals. The minimum input current is 3 mA and the input impedance is ≥ 4.7 k Ω.

Q: What are the digital output characteristics of the module?

A: The output is an open collector output of the transistor, with a maximum load current of 0.5 A per channel and a voltage of 24 VDC.

Q: Does the module have isolation protection?

A: Yes, the module adopts optocoupler isolation (1 kV DC) design to ensure electrical isolation between channels and systems, enhancing anti-interference ability.
