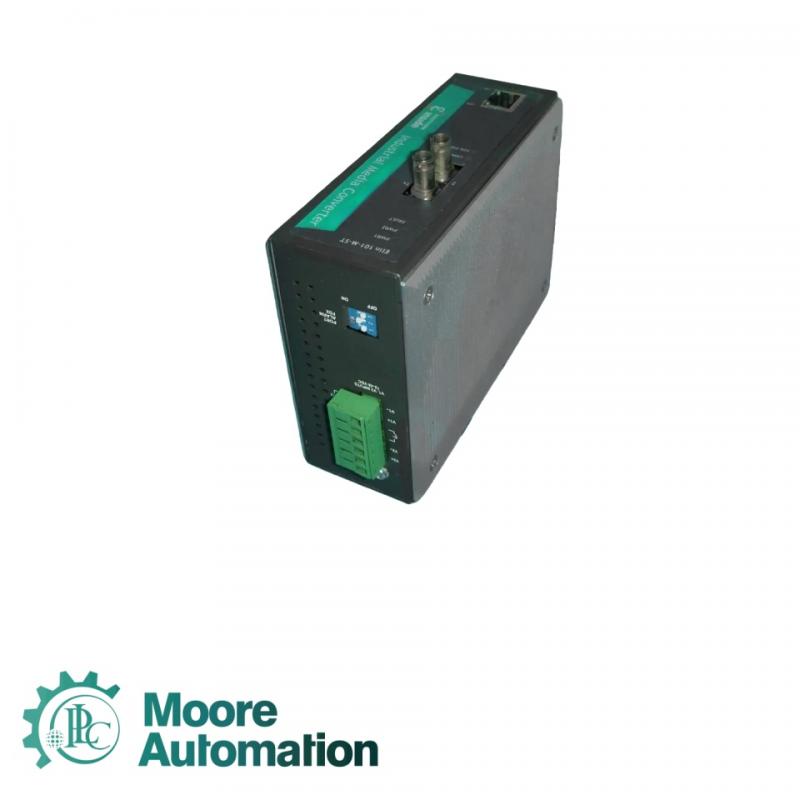

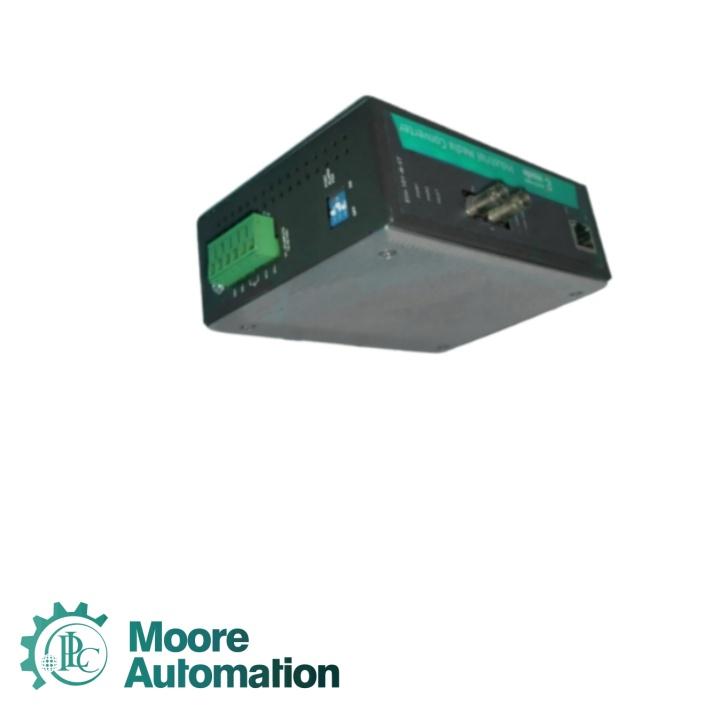

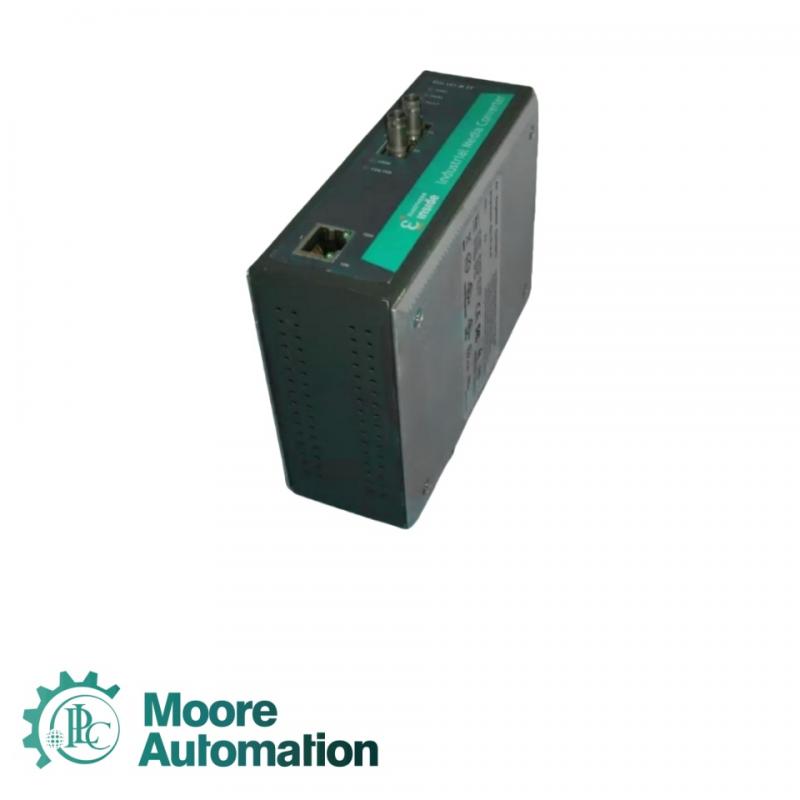

EUROTHERM Elin 101-M-ST switch module

EUROTHERM Elin 101-M-ST switch module

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
the United Kingdom
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

❖Please consult with John Yang

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

❖About the Product

The EUROTHERM Elin 101-M-ST Switch Module is a reliable and high-precision industrial switching module designed for use in automation, control, and monitoring systems. It serves as an interface between field devices and control systems, providing fast and accurate switching performance. Built with EUROTHERM’s robust electronic design standards, this module ensures stable operation under demanding industrial conditions such as high temperature, electrical noise, and vibration.

❖Product Data

Rated input voltage: DC 24 V
Input voltage range: DC 18–30 V
Input current: 7 mA/point
Input isolation: Optical isolation between channels and system bus
Input signal delay: < 1.5 ms
Output type: Relay output
Number of output channels: 8 channels
Rated output voltage: DC 24 V / AC 250 V (max)
Maximum output current: 2 A per point
Switching capacity: 60 W (DC) / 500 VA (AC)
General characteristics
Power supply voltage: DC 24 V ±10%
Power consumption: ≤ 4 W
Isolation resistance: ≥ 100 MΩ @ 500 V DC
Insulation voltage: 1500 V AC between I/O and system bus
Module status indication: Power, input, and output LEDs
Operating temperature: -20°C ~ +60°C
Storage temperature: -40°C ~ +85°C

❖FAQ

Q1: What is the main function of the EUROTHERM Elin 101-M-ST module?
A1: It functions as a digital switch module for controlling and monitoring field devices, converting control signals into relay or transistor outputs.

Q2: How many input and output channels does it provide?
A2: The module provides 8 digital input channels and 8 relay output channels.

Q3: What is the rated input voltage?
A3: The input section operates at DC 24 V nominal (range: 18–30 V DC).

Q4: Can this module switch both AC and DC loads?
A4: Yes. It can switch DC loads up to 24 V and AC loads up to 250 V, with a maximum current of 2 A per point.
