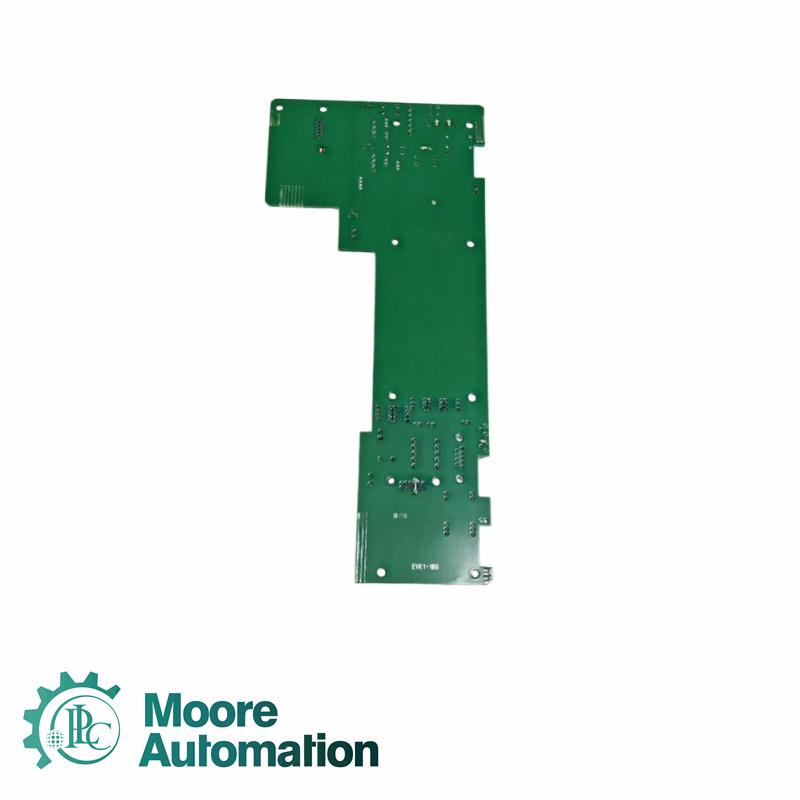

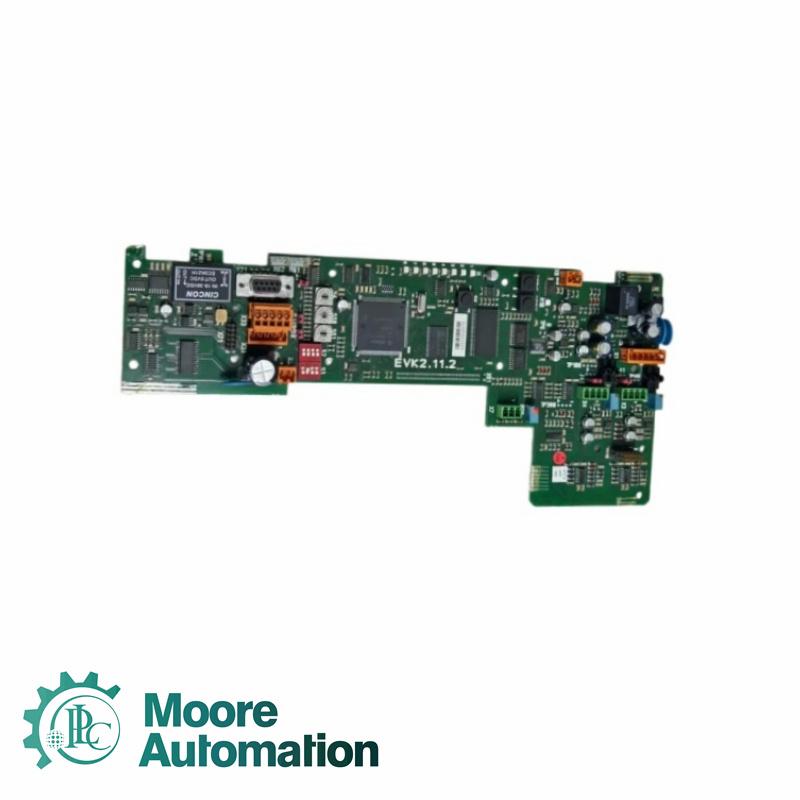

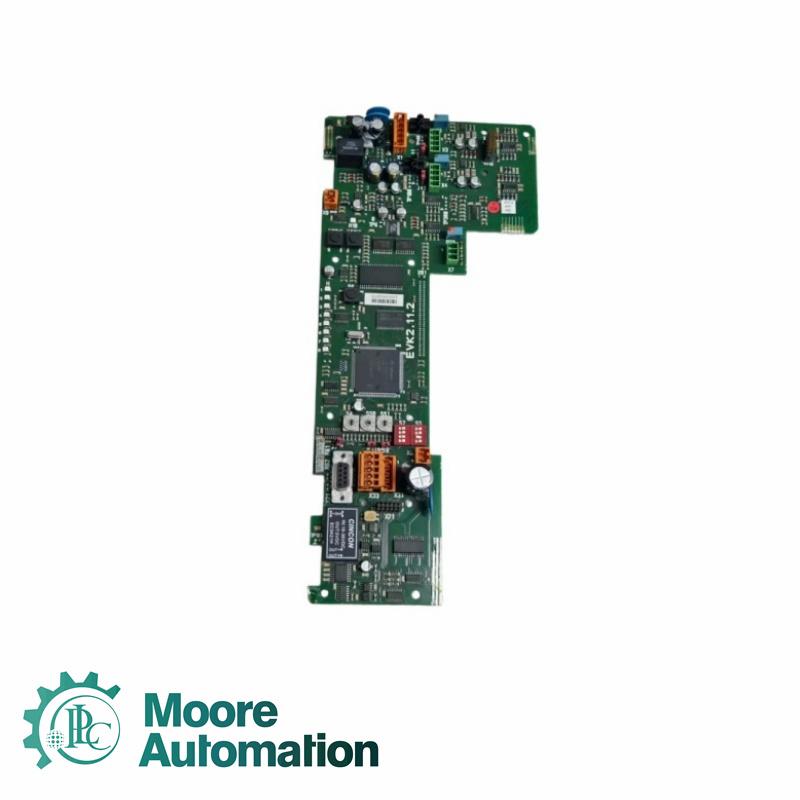

EMG ​​​​EVK2.11.2 Control Board

Contact info

Email:sales3@askplc.com

Mobile:86-18150117685

Website:https://www.controldcs.com/

Manager:John Yang in moore automation

Item Overview

EMG EVK2.11.2 is actually the control board (electronic unit) of the German EMG Automation web guiding system. It is usually installed inside the sensor or in the junction box next to the sensor and is responsible for processing infrared photoelectric signals.

Performance Specifications

Input Signal:

Infrared light intensity from EVK series receiver probe

Analog Output Signal:

Typically ±10 V (corresponding to strip edge offset from measurement centerline)

Diagnostic Signal:

Sensor contamination alarm (DirtySignal) triggered when lens transmittance is below threshold

Light Source Modulation:

High-frequency modulated infrared light to ignore ambient light interference

Measurement Linearity:

±1% within effective measurement window (typically ±25 mm or ±50 mm)

Industrial Applications

Cold Rolling Finishing Line: Ensures precise strip centering before the slitter, reducing edge waste.

Aluminum/Copper Foil Production Line: Due to the fragility of thin foil, EVK's non-contact measurement avoids damage to the strip.

Paper and Corrugated Box Plants: Used for high-speed paper machine alignment, ensuring neat winding.

Winder/Unwinder Control: Mounted on a moving trolley, enabling EPC (Edge Position Control).

FAQ

Question

Answer

Q: What is the EVK2.11.2?

A: It is a Control board.

Q: What shipping methods are used for EVK2.11.2?

A: Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

Q: How are the EVK2.11.2 packaged?

A: EVK2.11.2 packaging generally involves multiple layers of protection to ensure safe transit.

Q: How to Check Price and Availability for EVK2.11.2?

A: Please contact John Yang for sales at +86-18150117685 or request a quote.

Q: How long is the warranty period of EVK2.11.2?

A: We offer a standard one-year warranty for all new and original products.
