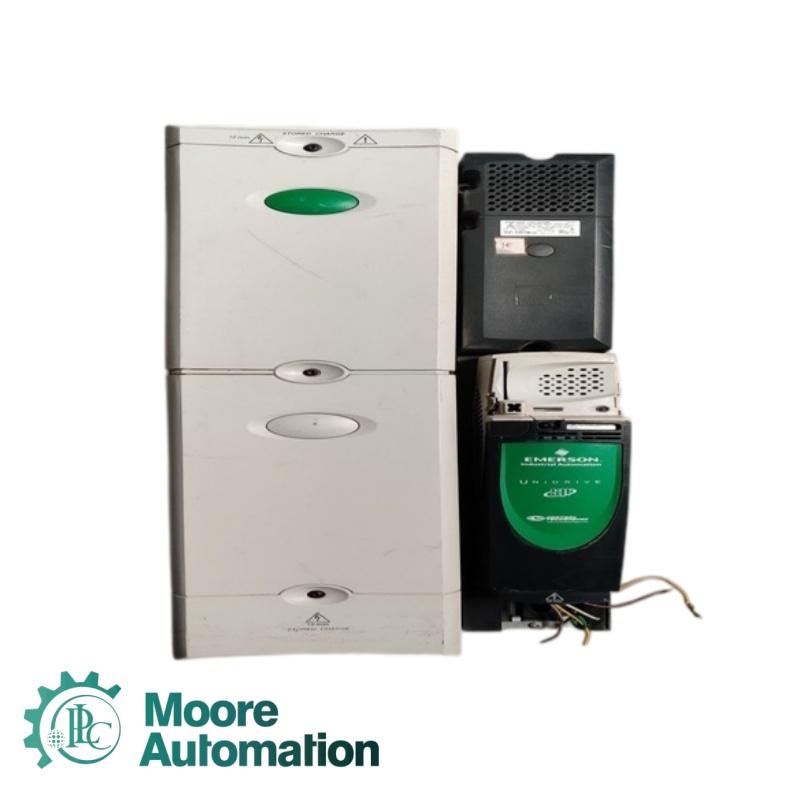

Emerson SPMD1424 Unidrive SPM High-Power Modular Drive Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Item NO.:
SPMD1424
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 year
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

Specifications

The Emerson SPMD1424 is a high-power Unidrive SPM modular drive module for 400 V class industrial motor-control systems. Official Control Techniques literature identifies normal-duty ratings up to 350 A and 200 kW at 400 V, with heavy-duty ratings up to 290 A and 160 kW. The DC-in/AC-out modular design supports scalable drive stacks, regenerative configurations and rapid module-level maintenance for production-critical machinery.

Product familyUnidrive SPM

ModelSPMD1424

Module typeDC-in / AC-out drive module

Voltage class380–480 VAC, 3-phase

Normal-duty current350 A max continuous

Normal-duty power200 kW at 400 V

Normal-duty output300 hp at 460 V

Heavy-duty current290 A max continuous

Heavy-duty power160 kW at 400 V

Heavy-duty output250 hp at 460 V

Application Industry

Heavy industrial drivesProvides high-current modular motor control for demanding production equipment.

Crane and material handlingSupports scalable power stacks in hoist, trolley and gantry applications.

Regenerative drive systemsIntegrates with compatible SPM rectifier and energy-recovery equipment.

Lifecycle replacementProvides an exact-model spare for installed Unidrive SPM systems.

FAQ

Is SPMD1424 a complete standalone inverter?

SPMD1424 is a modular drive component. Confirm the controller, rectifier, inductors, fuses and system accessories required for operation.

Which duty ratings are documented?

Official literature lists 350 A / 200 kW normal duty and 290 A / 160 kW heavy duty for the 400 V class configuration.

Can SPMD1424 be used in a parallel power stack?

The Unidrive SPM platform supports modular and parallel architectures, but the exact controller, inductors, fusing and derating must follow the installed design.

What should be checked before replacement?

Match the complete model, power-stack arrangement, DC-bus voltage, firmware, cooling, current rating, inductors and saved parameters.

What pre-shipment service does Moore Automation provide?

Moore Automation can verify labels, inspect terminals, provide available official references and share shipment photographs before dispatch.

Company Service

✓ Part VerificationExact model and rating confirmation

◉ Module InspectionTerminal, fan and label checks

⌁ System MatchingSPM controller and stack review

↗ Fast LogisticsTracked worldwide delivery from available stock

◇ Warranty HandlingResponsive after-sales support

▤ Technical DocumentsOfficial Control Techniques references when available

Need Emerson SPMD1424?

Contact Moore Automation for pricing, availability and technical information.

Request a Quote →

Emailsales6@askplc.com

Phone / WhatsApp+86-17359287459

Address32D units, GuoMao Building, No 388 Hubin South Road, Siming district, Xiamen, China
