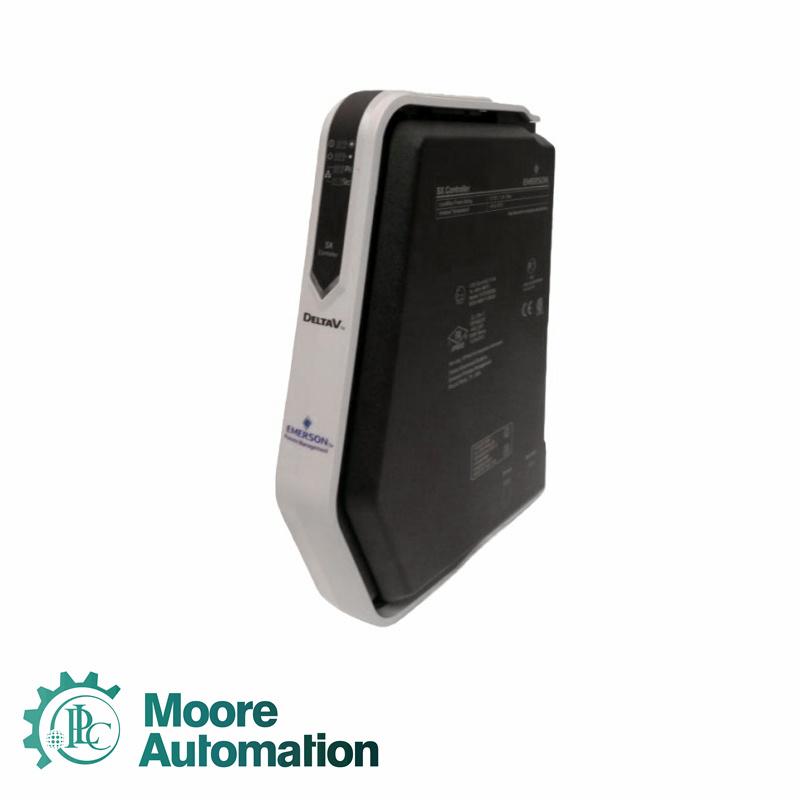

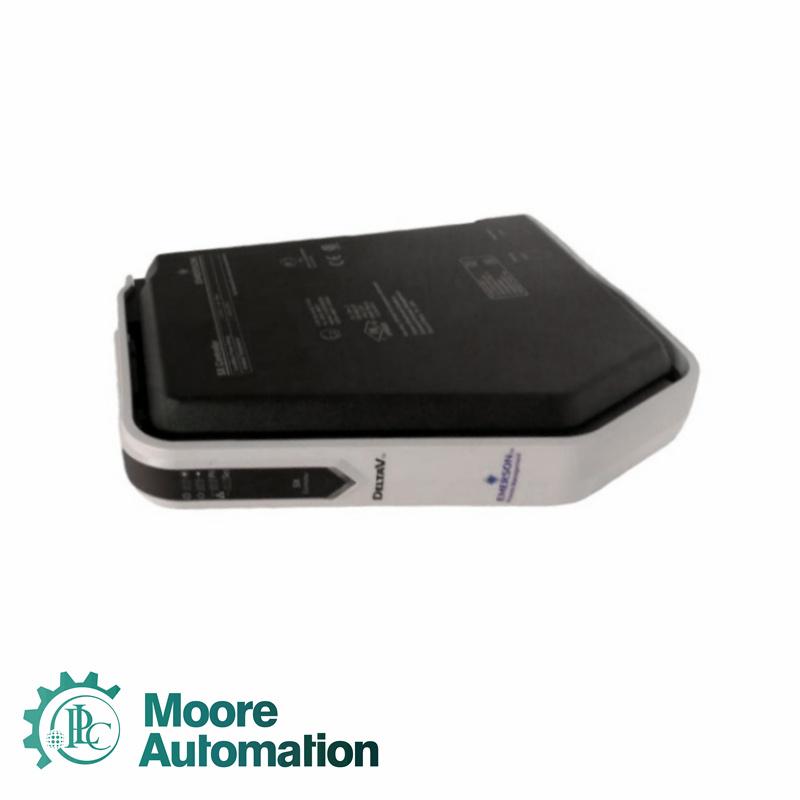

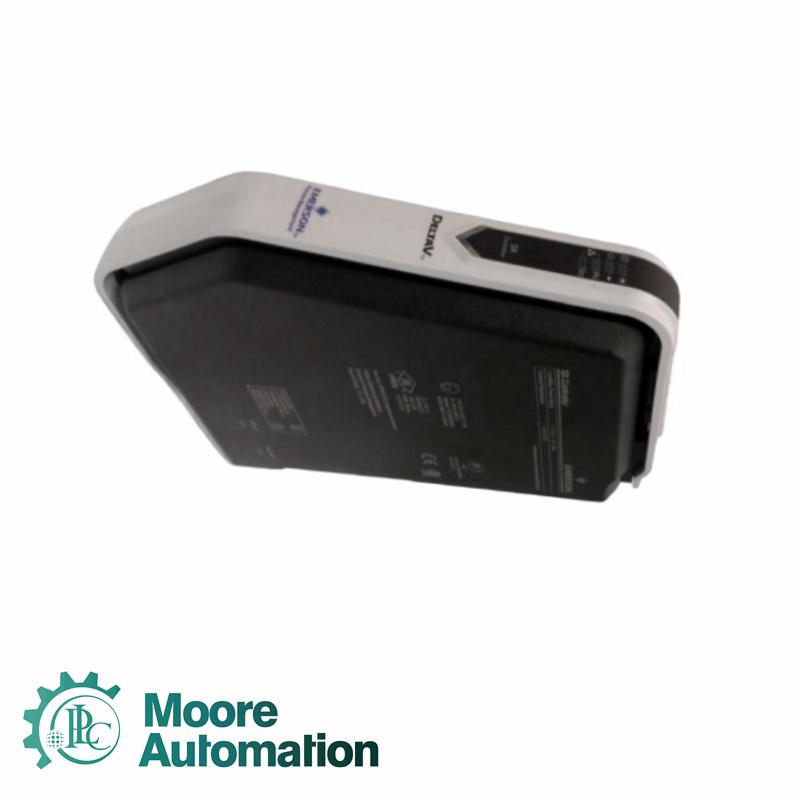

EMERSON KJ2005X1-BK1 SE3007 DeltaV SX Controller Module

Sale Manager: John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

KJ2005X1-BK1 SE3007------In stock & Full New

The SX Controller primary function is to execute control modules that are designed to meet the specific control requirements of the plant. These control modules use process signals from the controller’s I/O subsystem and provide communication of process data to the rest of the DeltaV control system for operator interaction and data collection. Each controller node can be installed as a simplex or redundant node. The controllers are connected to the I/O carriers, which are mounted to the right of the controller carriers. Up to 8 carriers with 8 cards each can be connected to the local bus I/O, for a total of 64 traditional I/O cards. In addition to the 8 local I/O carriers, each controller can communicate with an additional 16 Remote I/O units hosting traditional card based I/O. In addition to traditional I/O cards, the local bus supports fieldbus technologies, including FOUNDATION Fieldbus, Profibus DP, DeviceNet and AS-i protocols. The I/O subsystem also supports Serial interface cards as well as the Ethernet I/O interface. These various I/O products provide a wide range of interfaces to meet the needs of your control application.

KJ2005X1-BK1 SE3007------In stock & Full New

Redundant Control Network:8-pin RJ-45 connector

Benefits：
Scalable Controllers. The SX Controller complements theSQ Controller by providing additional CPU and Memoryfor those applications that need more control capacity:
1.Late Changes. You can easily upgrade an SDPlus or SQ Controller to an SX to handle project scope changes late in the project. Simply replace the SD Plus or SQ with the SX and all existing configuration, documentation and hardware design remain the same — forgiving.

2.Speed. The SX Controller supports all the features you’ve come to expect from the DeltaV system: self-addressing, automatic I/O detection. All these features are designed to make your projects execute faster — just plug and play!

3.Redundant Architecture. The SX Controller supports 1:1 redundancy for increased availability. Redundant SD Plus or SQ Controllers can be upgraded to SX Controllers online — robust!

4.Quick Assembly. The S-series hardware has been designed for speed of project execution. Carriers snap to standard DIN rails and controllers and S-series IO snap into position without the use of retaining screws.

5.Easy to Use. Controllers are also easy to configure. Simply connect the SX to the DeltaV network and auto-sense it from DeltaV Explorer. Add the controller and all its IO cards to the system database and all components are automatically addressed and communicating.

6.Field Proven Architecture. The SX Controller is an evolution of the DeltaV MX Controller. The new design delivers installation and robustness enhancement while still using the same processor and OS that has proven itself in the field. All IO cards run the latest software enhancements of corresponding M-series IO cards and deliver the same field proven, reliable operation.

KJ2005X1-BK1 SE3007------In stock & Full New

KJ2005X1-BK1 SE3007------In stock & Full New

KJ2005X1-BK1 SE3007------In stock & Full New

Other items in stock worth checking

KJ2005X1-BK1 SE3007------In stock & Full New
