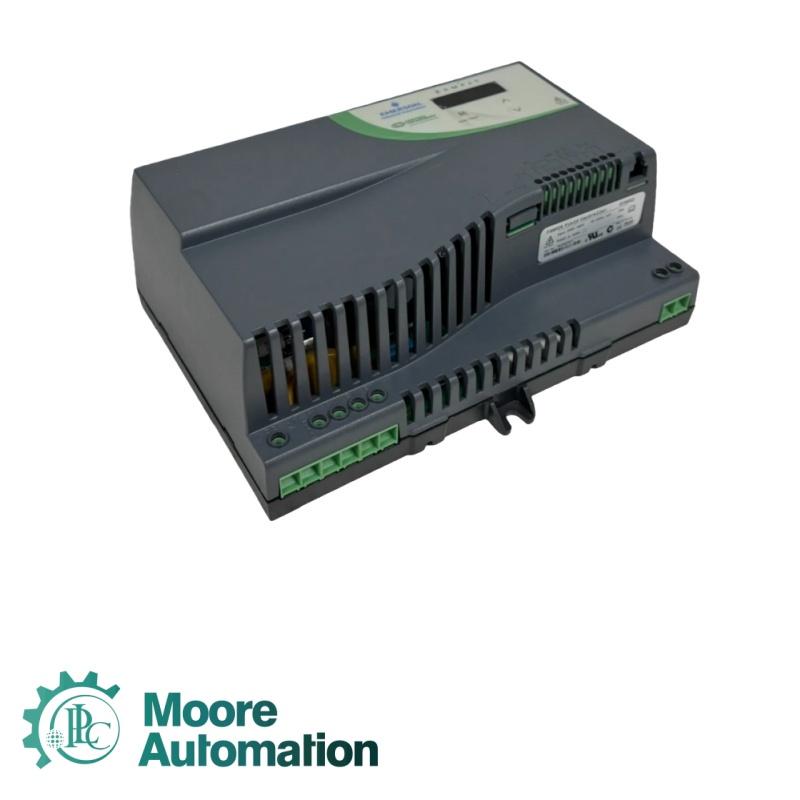

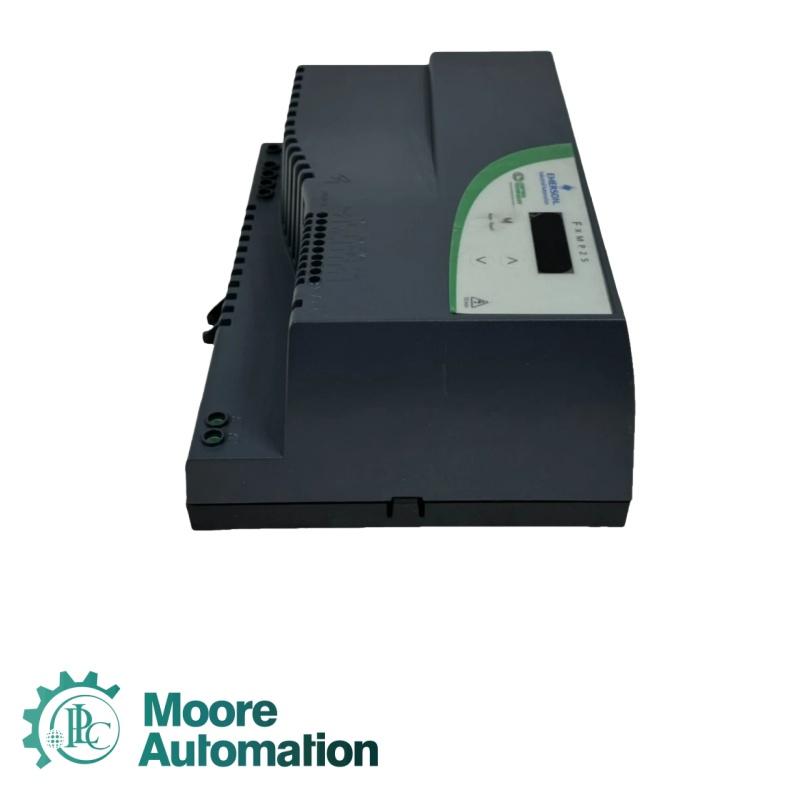

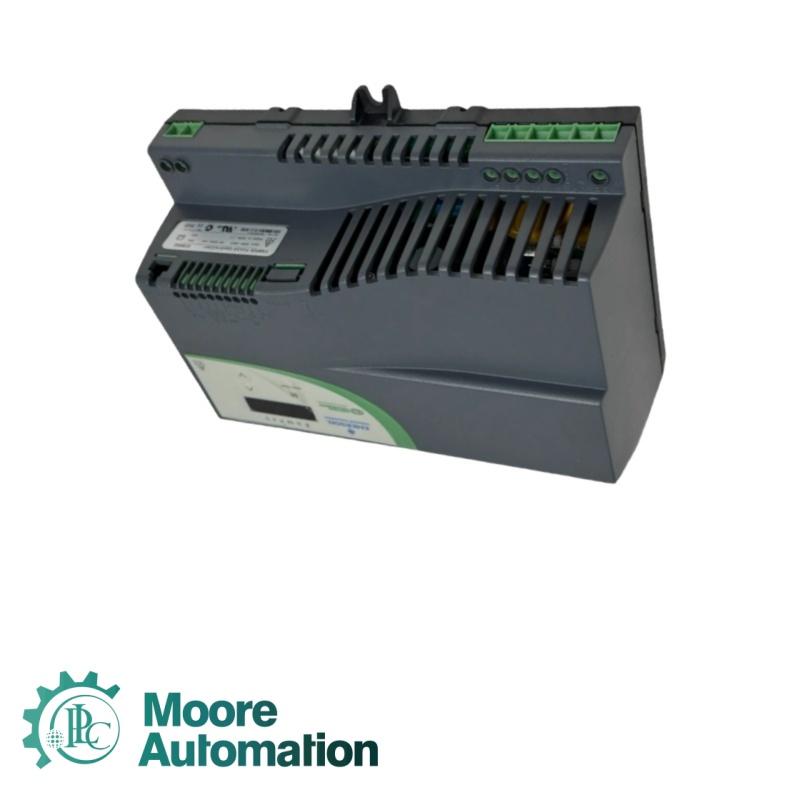

EMERSON FXMP25 Field controller

Manufacturer：EMERSON

Country of Origin:USA

Shipping from:Xiamen, Fujian

Part number： FXMP25

Part Type:New

Quality: 100% original and 100% brand

100% brand new

1-year coverage

Sales manager:

John Yang

WhatsApp:

+86 18150117685

Email:

sales3@askplc.com

Rated Continuous AC Input Current: 26 A (worst-case operating conditions)
Rated Continuous DC Output Current: 25 A (40°C ambient temperature, 1000m altitude; derating required at higher temp/altitude)
AC Supply Voltage Range: 208–480 V AC (nominal), voltage tolerance ±10%
AC Supply Frequency: 50/60 Hz (no specified tolerance)
Field Output Voltage Range: 0–500 V DC (calculated from mains voltage and firing angle)
Field Firing Angle Range: 0.0–180.0 ° (0° = full voltage applied to motor field)
Digital Input (Ion, Terminal 1): Single-ended, negative logic (0V common); voltage range 0–24 V DC; absolute maximum voltage -18–30 V DC; load 2.4mA at 0V (sink); input threshold (High: 11V, Low: 9V); update rate 4ms
Analog Input (Iref, Terminal 3): Current demand input; full scale voltage 0–10 V DC; absolute maximum voltage -18–30 V DC; input resistance 44kΩ; resolution 10 bits; sample period 4ms
10V User Output (Terminal 5): Voltage tolerance ±2%; rated output current 5mA; overcurrent protection (current limited above 5mA, no trip)
Analog Outputs (If/Va, Terminals 6/7): Single-ended voltage; range 0–10 V DC; maximum output current 5mA; minimum load resistance 2kΩ; 5mA short circuit protection; resolution 10 bits; update period 4ms
Fail Relay (Terminals 8/9/10): Form C contact; rating 250/125 V AC (category 1/2, 5A nominal resistive load), 5A/30 V DC; energized when power applied and FXMP25 is fault-free; update period 4ms
Operating Temperature Range: 0–55°C (32–131°F); output current derating (21.5A @50°C, 16A @55°C)
Minimum Power-up Temperature: -15°C (5°F)
Storage Temperature Range: -40–70°C; maximum storage time 2 years (low voltage capacitors), 10 years (DC bus capacitors)
Maximum Relative Humidity: 90% non-condensing at 50°C
Altitude Range: 0–3000m; current derating 1% per 100m above 1000m (max 20% derating at 3000m)
Protection Class (IP Rating): IP20 (pollution degree 2, dry/non-conductive contamination only)
Overall Dimensions (W×H×D): 247mm × 168.5mm × 123.5mm (9.72in × 6.63in × 4.86in)
Net Weight: 1.70kg (3.70lb)

✦100% Brand New – Sealed in original factory packaging.

✦Warranty: 12 months for all products.

✦Packaging: Original cartons included.

✦Delivery: Typically shipped within 3 days after payment.
