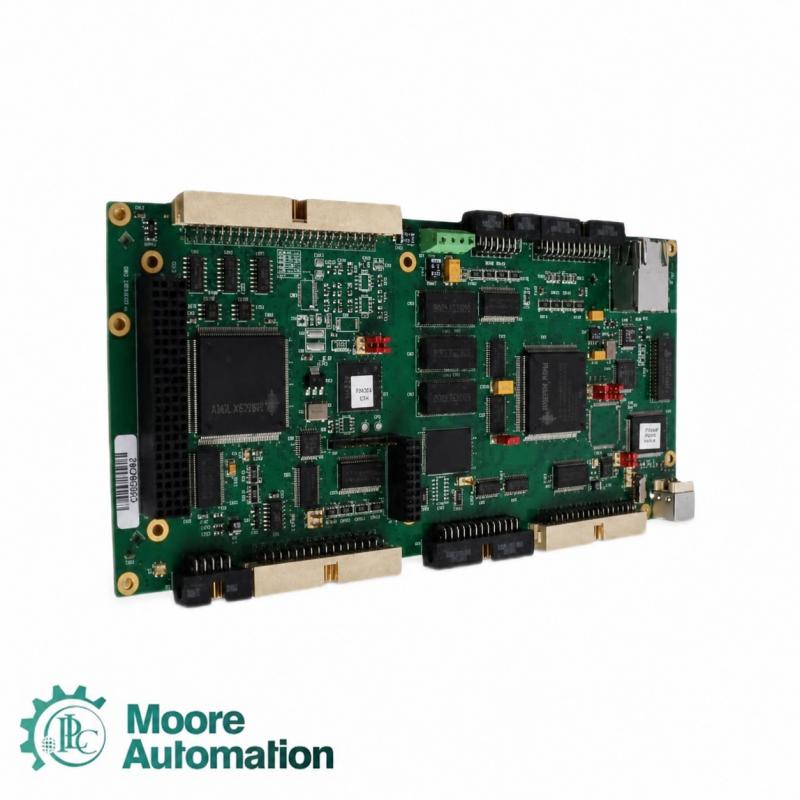

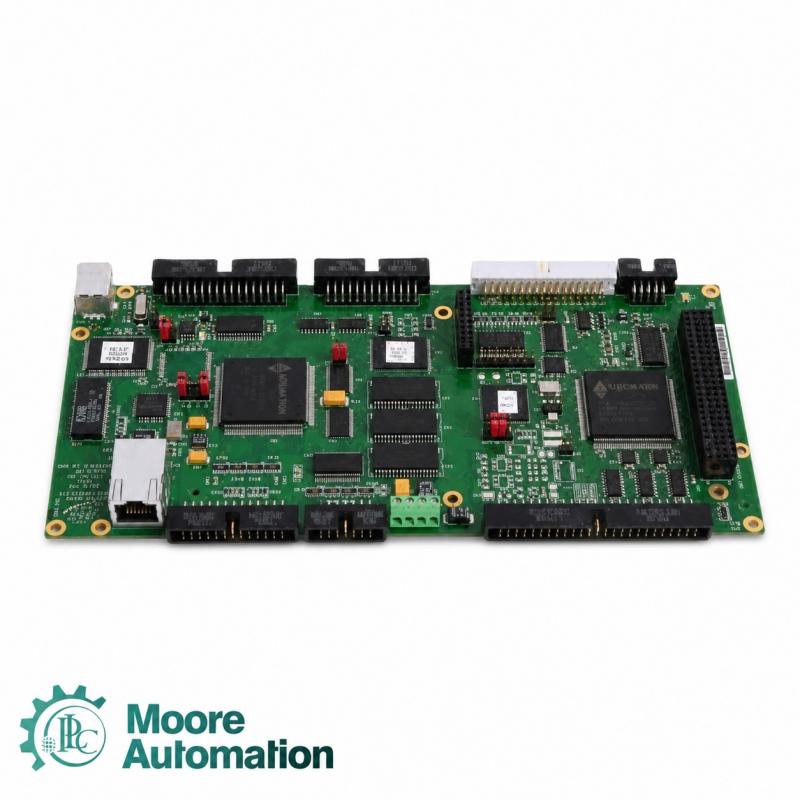

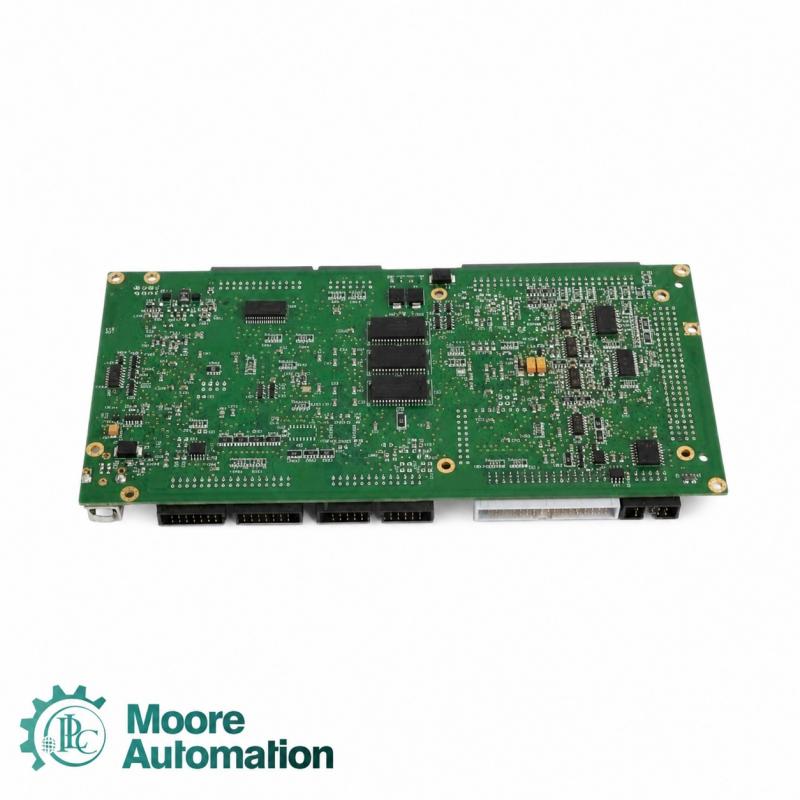

 DELTA PMAC2A-ETH 603871-109 Turbo PMAC Clipper Motion Controller Board
PMAC2A-ETH 603871-109 PMAC2A-ETH 603871-109 PMAC2A-ETH 603871-109

DELTA PMAC2A-ETH 603871-109 Turbo PMAC Clipper Motion Controller Board

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    USA

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The DELTA PMAC2A-ETH 603871-109 is a multi-axis motion-controller board in the DELTA Turbo PMAC Clipper Series. It provides four standard servo or stepper channels, 32 general-purpose TTL I/O points, four encoder inputs, two handwheel inputs, and USB 2.0, 100Base-T Ethernet and RS-232 communications. The DELTA PMAC2A-ETH 603871-109 supports ±10 V analog or pulse-and-direction commands for coordinated industrial motion applications.
Controller architectureMulti-axis stand-alone Turbo PMAC2
Logic power5 V DC ±5%, 4 A / 20 W
Standard axis control4 servo or stepper axes
Flag input voltage5–24 V DC
Host communicationsUSB 2.0, 100Base-T Ethernet, RS-232
Standard analog output±10 V, 12-bit filtered PWM
General-purpose I/O32 TTL points
Operating temperature0 to +45 °C
Encoder inputs4 plus 2 handwheel inputs
Storage temperature−25 to +70 °C
Application Industry
01
Multi-axis machine controlCoordinates servo or stepper axes in packaging, assembly and special-purpose machinery.
02
Robotics and handling systemsProvides deterministic trajectory control with encoder feedback and digital I/O.
03
CNC and precision positioningSupports analog or pulse-and-direction drive commands for coordinated motion.
04
Test and automation equipmentConnects to host computers through Ethernet, USB or RS-232 for supervisory control.
FAQ
How many axes does the DELTA PMAC2A-ETH 603871-109 control?
The Turbo PMAC Clipper manual specifies four standard servo or stepper channels, with system options depending on the configured hardware.
Which host communications are available?
The controller provides USB 2.0, 100Base-T Ethernet and RS-232 host communications.
What drive-command types are supported?
The standard hardware supports ±10 V filtered-PWM analog output or pulse-and-direction control.
What power supply is required?
The manual specifies regulated 5 V DC within ±5%; a typical eight-axis configuration requires 4 A or 20 W.
Can Moore Automation verify the board revision before shipment?
Yes. Moore Automation can check the complete model, hardware revision, connector configuration and replacement compatibility before shipment.
Company Service
◎ Compatibility CheckModel, revision and system matching before shipment
✓ Quality InspectionVisual and functional inspection details available
↗ Global LogisticsExport packing and worldwide delivery support
⌁ Technical GuidanceInstallation and replacement assistance
◇ Warranty SupportClear warranty and after-sales process
▤ Document ServiceAvailable manuals and datasheets supplied
