 Delta Electronics PFB1224UHE DC Axial Fan
PFB1224UHE PFB1224UHE PFB1224UHE

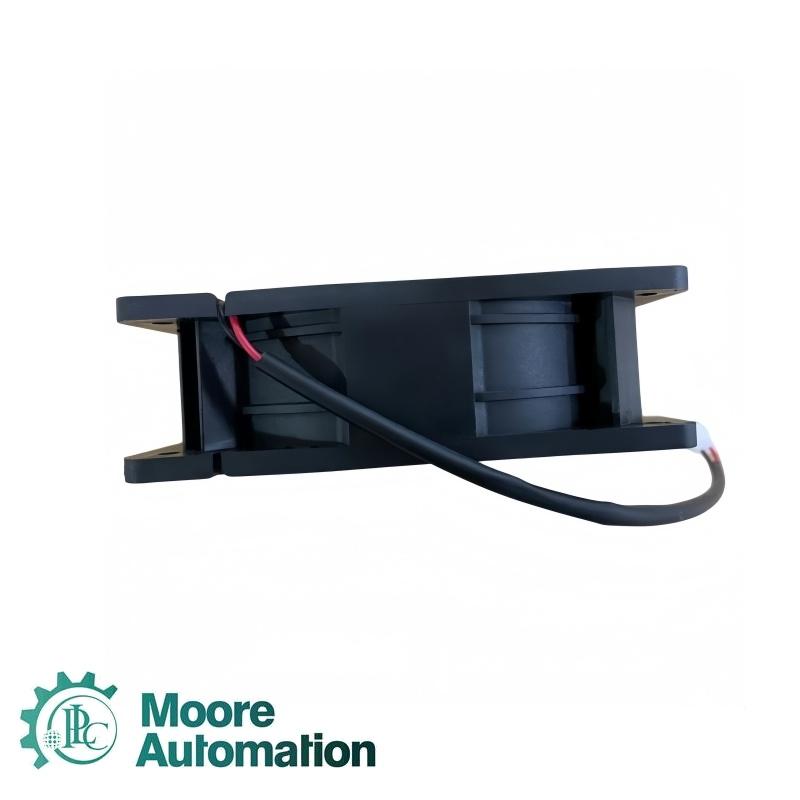

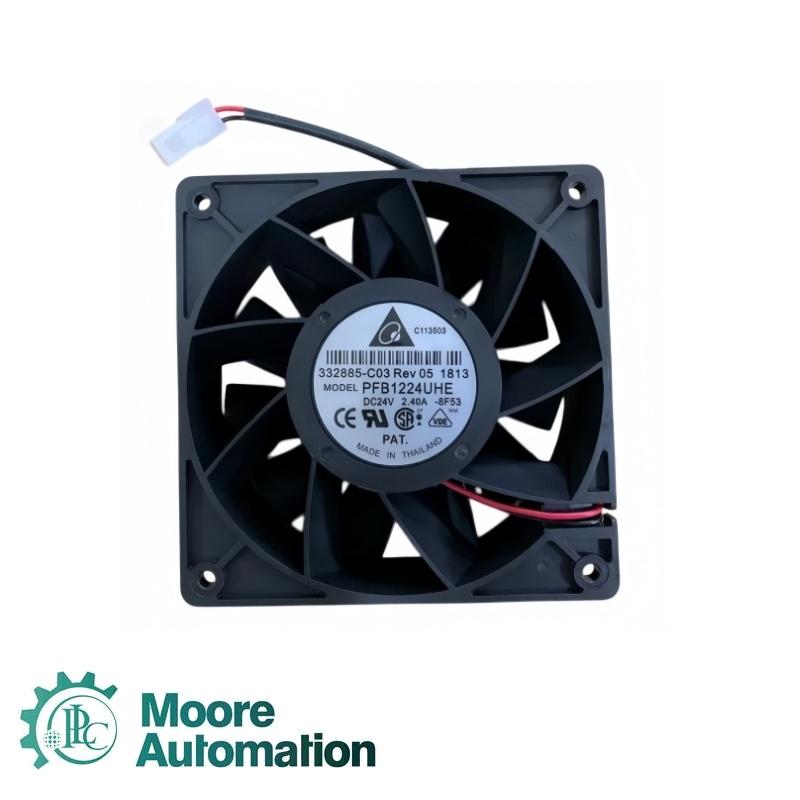

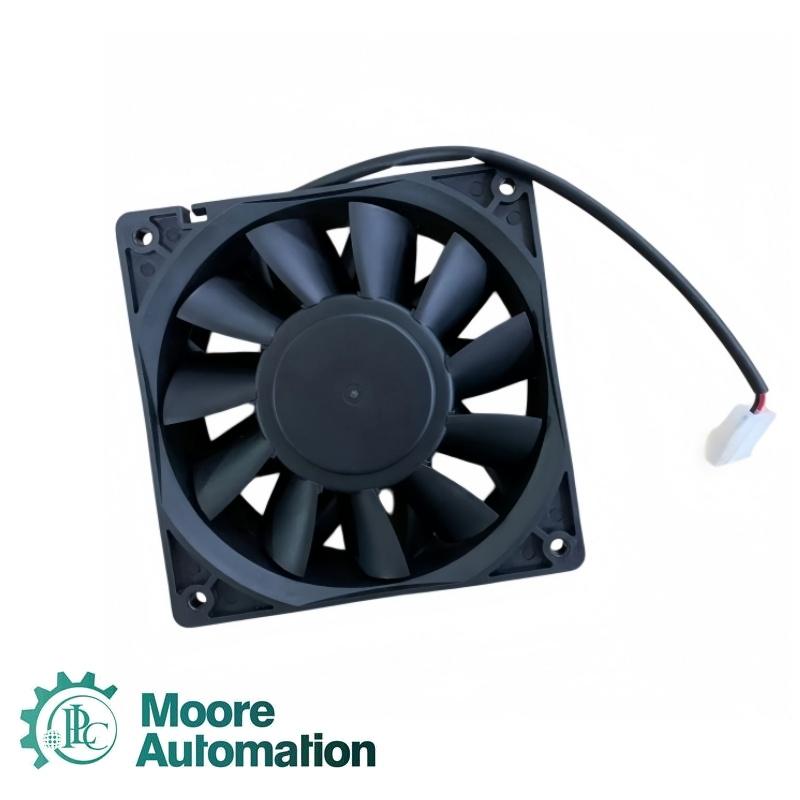

Delta Electronics PFB1224UHE DC Axial Fan

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    Taiwan

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
The Delta Electronics PFB1224UHE is a PFB-series 24 VDC brushless axial-flow fan for high-airflow thermal management. Official Delta documentation specifies a 120 × 120 × 38 mm frame, ball bearings, 5500 rpm speed, 7.160 m³/min maximum airflow, and 35.877 mmH₂O maximum static pressure. Confirm the required function suffix and wiring arrangement before installation.
ManufacturerDelta Electronics
ModelPFB1224UHE
SeriesPFB
Fan typeDC brushless axial-flow fan
Dimensions120 × 120 × 38 mm
Rated voltage24 VDC
Operating voltage range14.0 to 26.5 VDC
Rated current2.00 A
Input power48.0 W
Speed5500 rpm
Maximum airflow7.160 m³/min (252.85 CFM)
Maximum static pressure35.877 mmH₂O (1.412 inH₂O)
Acoustical noise66.5 dB(A)
Bearing typeBall bearings
Impeller and frame materialPlastic, UL 94V-0
Weight380 g
Lead wireUL 1007 AWG 24 or equivalent
Wire polarityRed: positive; black: negative
Operating temperature-10 to +60 °C
Life expectancy70,000 hours at 40 °C
RotationClockwise viewed from nameplate side
External coverOpen type
Insulation resistance10 MΩ minimum at 500 VDC
Dielectric strength500 VAC, 50/60 Hz, 1 minute; 5 mA maximum
Application Industry
01
Industrial power suppliesHigh-airflow cooling for power-conversion equipment operating from a 24 VDC fan supply.
02
Automation control equipmentForced-air thermal management for control electronics and industrial automation assemblies.
03
Motor drives and power electronicsCabinet or chassis airflow where the documented fan dimensions and pressure performance fit the design.
04
Equipment cooling replacementService replacement after confirming the mounting envelope, voltage, airflow direction, and required function suffix.
FAQ
What supply is required for PFB1224UHE?
Use a 24 VDC supply within the documented 14.0 to 26.5 VDC operating range and provide capacity for the 2.00 A rated current.
What mounting space should be reserved for PFB1224UHE?
Allow for a 120 × 120 mm square frame with 38 mm depth, plus clearance for airflow and lead-wire routing.
How should PFB1224UHE be wired during installation?
Connect the red lead to positive and the black lead to negative, and verify the function suffix before connecting any additional lead.
What airflow performance can engineers expect from PFB1224UHE?
At rated conditions, the documented maximum airflow is 7.160 m³/min and the maximum static pressure is 35.877 mmH₂O.
What should be checked before replacing an existing fan with PFB1224UHE?
Verify rated voltage, operating range, frame size, thickness, airflow direction, connector or lead arrangement, and the required sensor or control suffix.
How is locked-rotor protection handled on PFB1224UHE?
The current shuts down when the rotor is locked; remove the obstruction and confirm free rotation before returning the equipment to service.
