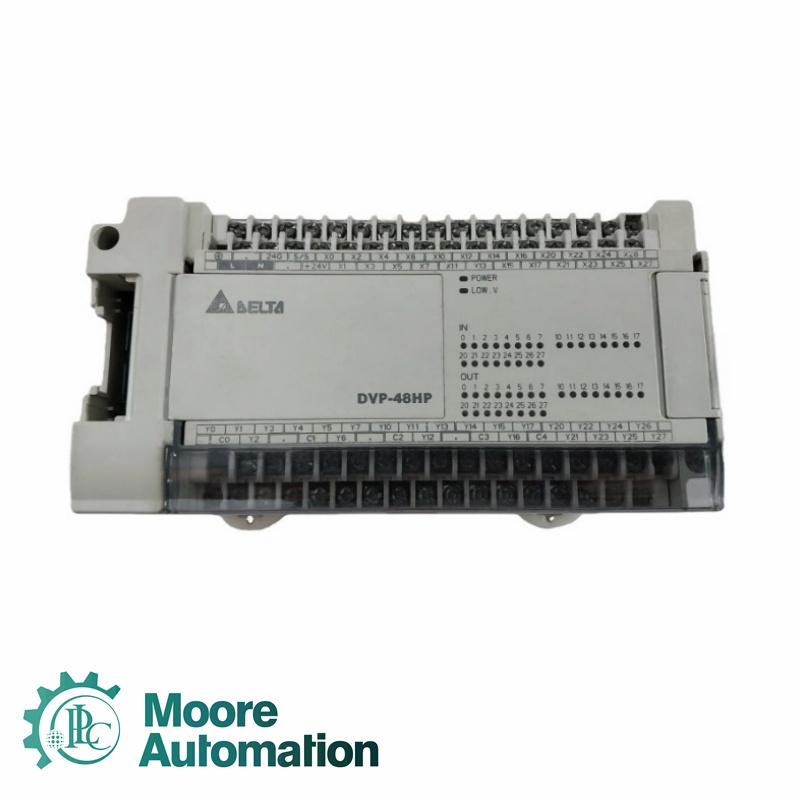

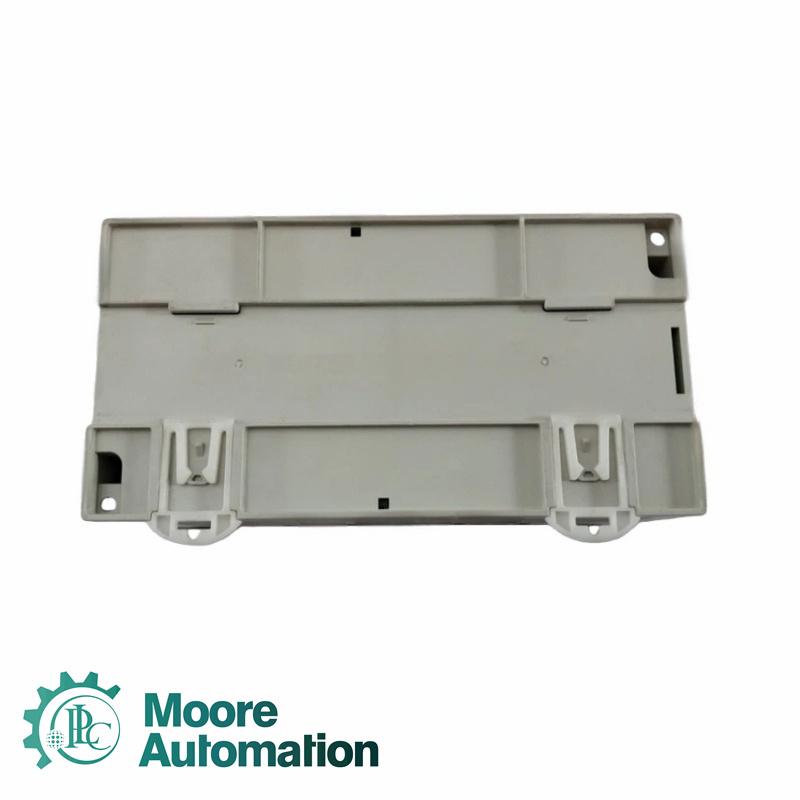

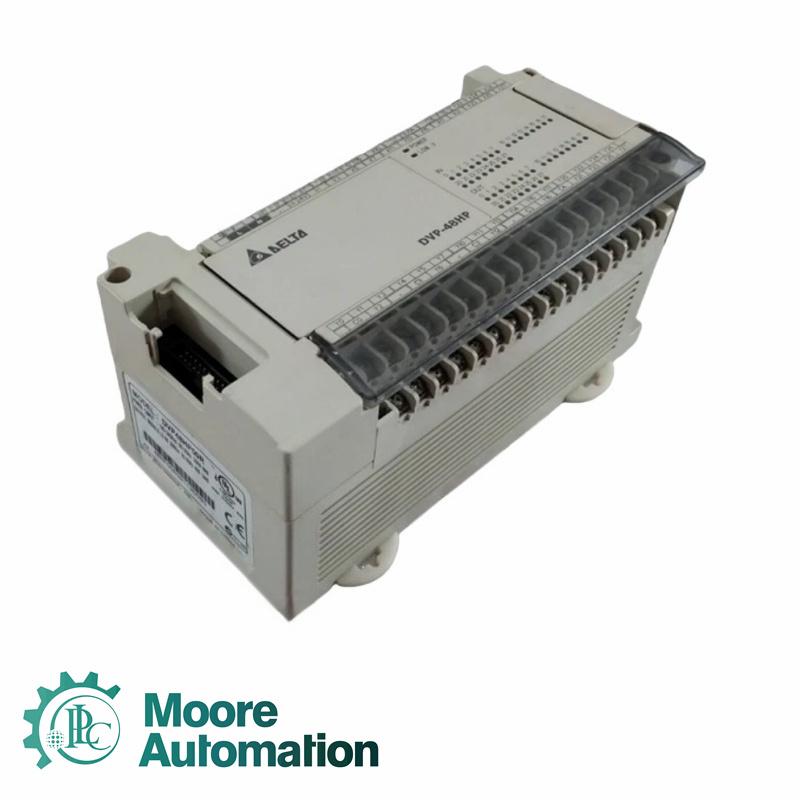

DELTA DVP48HP00R DVP-48HP Programmable Logic Controller

Contact info

Sale Manager: John Yang

Email :  sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

Main info

Part ID: DVP48HP00R DVP-48HP

Type: Programmable Logic Controller

Packaging: Original packaging

Warranty period: 1 year

Delivery time: 1-3 days

Transportation period: DHL FEDEX EMS UPS TNT

Payment method: T/T

Condition: Original new

Shipping Port: Xiamen, China

MOQ: 1 Piece

Specification

Power Supply Voltage:24V DC (20.4–28.8V DC, -15% to +20%) / 100–240V AC (-15% to -10%), 50/60Hz ±5%
Power Consumption:30 VA
24V DC Supply Current:500 mA
24V DC Output Short-Circuit Protection:Yes
Surge Voltage Withstand:1,500V AC (Primary–Secondary), 1,500V AC (Primary–PE), 500V AC (Secondary–PE)
Insulation Resistance:5 MΩ minimum (500V DC between all I/O points and ground)
Noise Immunity:ESD 8 kV Air Discharge; EFT Power Line 2 kV, Digital I/O 1 kV, Analog & Digital; RS 26 MHz–1 GHz, 10 V/m
Communication I/O Withstand Voltage:250V
Grounding:The grounding wire must be at least as thick as the power supply L and N wires; when using multiple PLCs, ensure common grounding
Operating Environment:Temperature 0–55°C, Humidity 50–95%, Pollution Degree 2
Storage Environment:Temperature -25–70°C, Humidity 5–95%
Weight:Approximately 616 g / 576 g
Dimensions:90 (W) × 174 (H) × 82.2 (D) mm
Power Supply:100–240V AC
Input Unit:24 points
Input Type:DC type (Sink/Source)
Transistor Output:5–30V DC, 0.3A per point at 40°C

Shipping

1.For the in stock items, we will ship to you within 3 days after received payment

2.We can shipping all over the world via DHL,UPS,FEDEX,TNT and EMS.

3.If you have shipping agent please tell us before shipment.

4.We will packing the parts with strong box, if you have any special needs, please notify to us.

5.We usually ship up to before 4:30 PM, after shipment we will sent the tracking number to you. It will takes

7~15 days to received the packages

6.When you received the package, please email to us.
