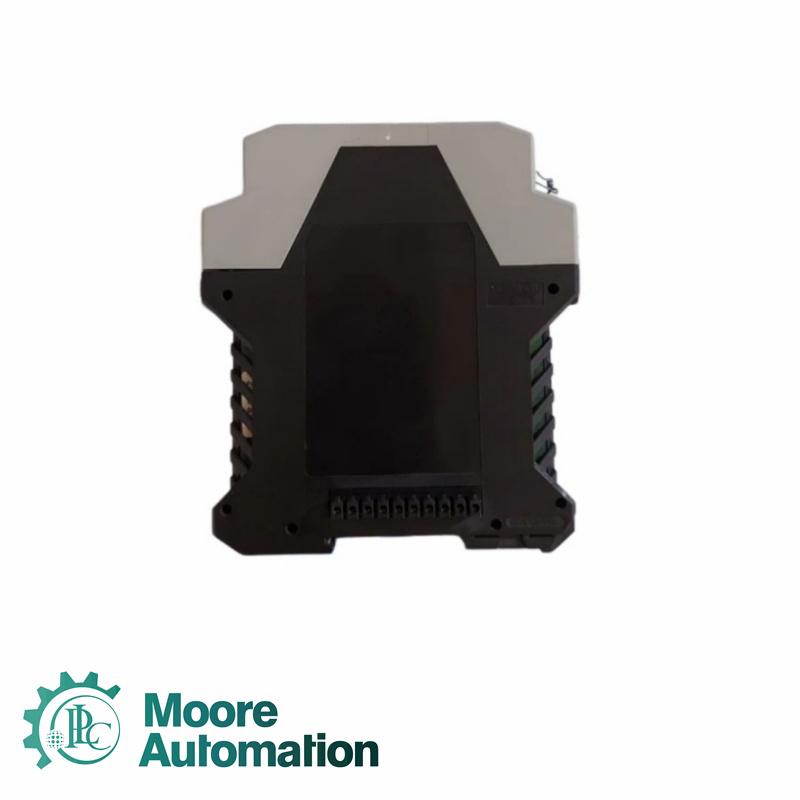

Consilium 5100070-02A Bus Isolator

5100070-02A divides the backbone bus into segments. Its dual functionality isolates communications and basic backup signals between the stretched system parts and provides power to the control panel (e.g. Control Panel M 4.3). For details on assembling a system and definitions of common system terms, refer to the Installation Manual.

Product Name: Consilium Bus Isolator M
Function: Divides backbone bus into segments, isolates communications, provides power to control panel
Operating Voltage Range: 19-30 VDC
Current Consumption (at 24V): 30 mA
Cable Terminals: 2.5 mm²
Operating Temperature Range: -40°C to +70°C
Weight (with housing): 210 g ±5%

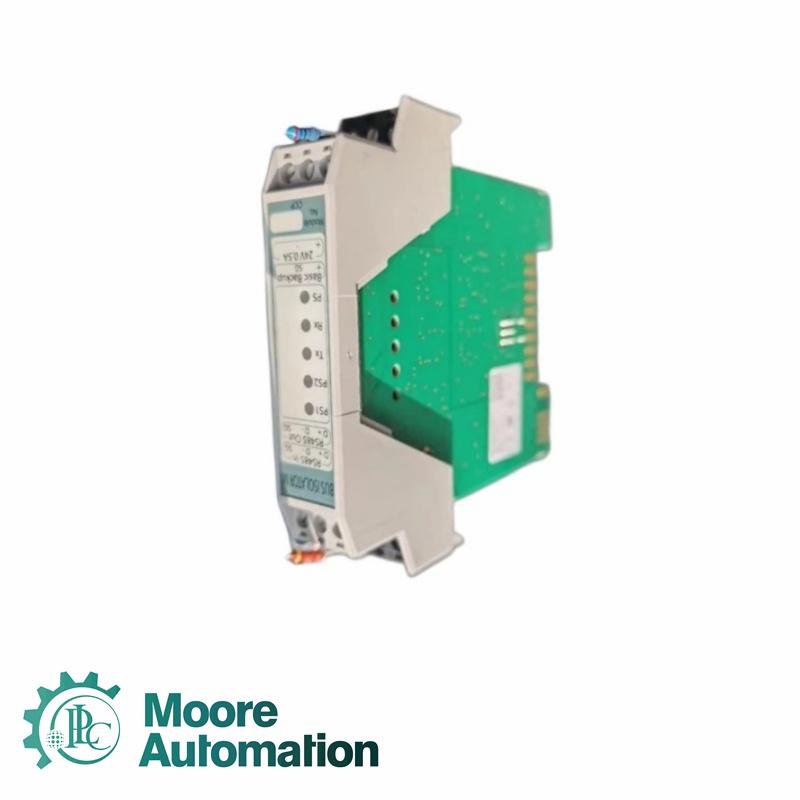

Indicators: LEDs indicate status of inputs/outputs

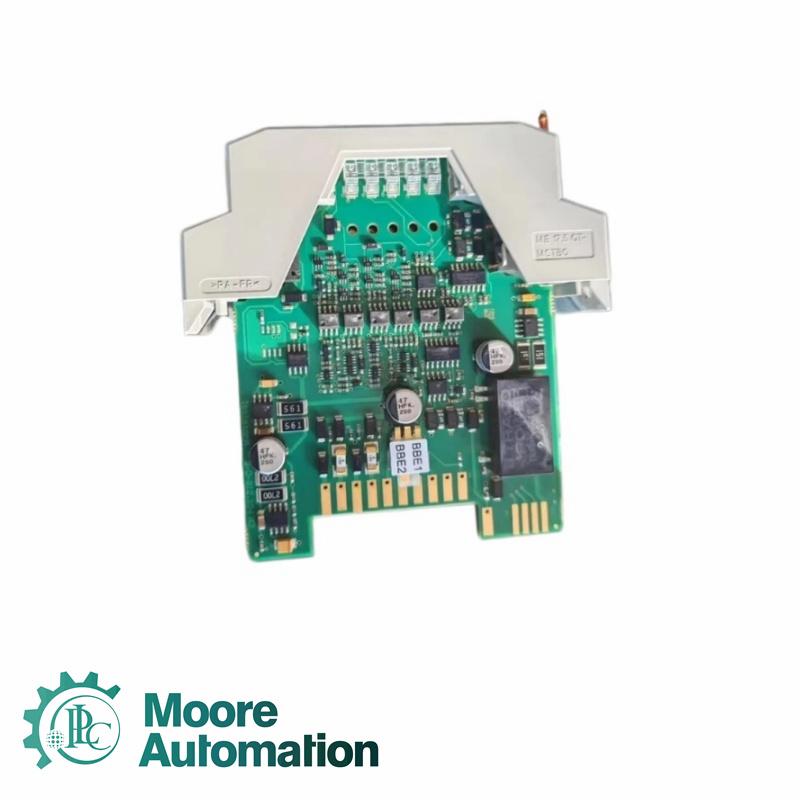

Channel Selector: Two units required per segment, DIP switch BBE1 for first, BBE2 for second
Connections: RS485

Q1: What is the primary function of the BUS ISOLATOR M 5100070-02A?
A1: The BUS ISOLATOR M 5100070-02A divides the backbone bus into segments, isolates communication and backup signals, and provides power to control panels like the Control Panel M 4.3.

Q2: What operating voltage range does the BUS ISOLATOR M 5100070-02A support?
A2: It operates within 19–30 VDC. At 24 V, the current consumption is 30 mA.

Q3: How should I install the BUS ISOLATOR M 5100070-02A?
A3: Two units are required per segment for two backbone channels. Use the DIP switches to set one unit to BBE1 and the other to BBE2. Connections are made via RS485 with 2.5 mm² cable terminals.
