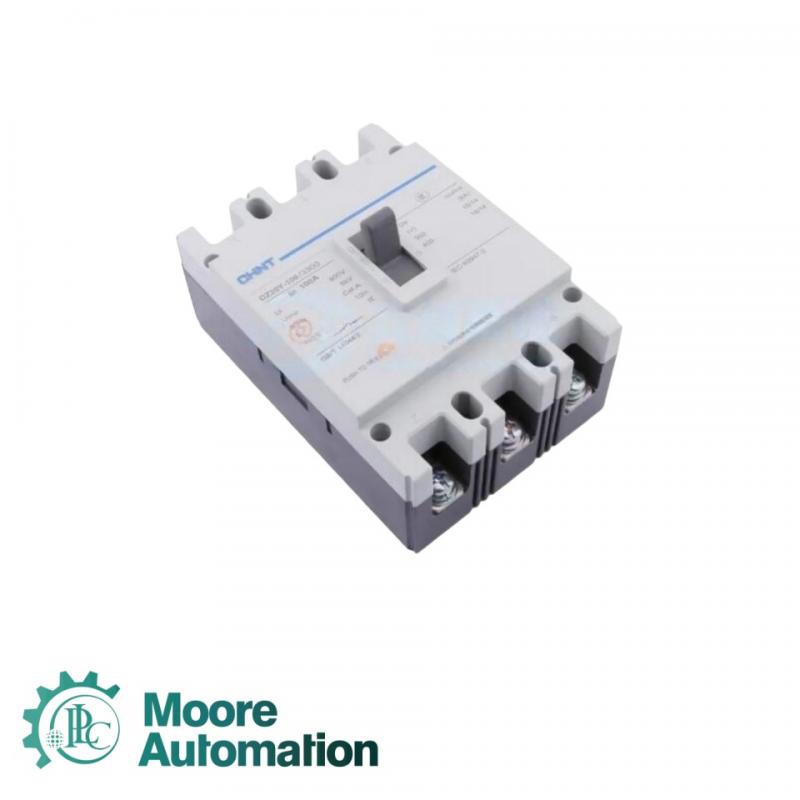

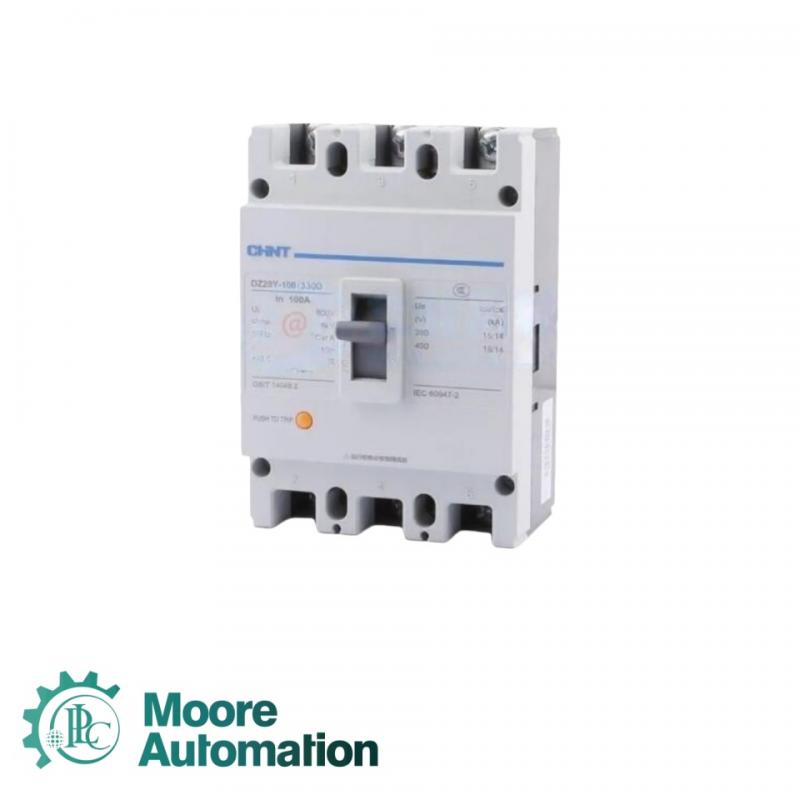

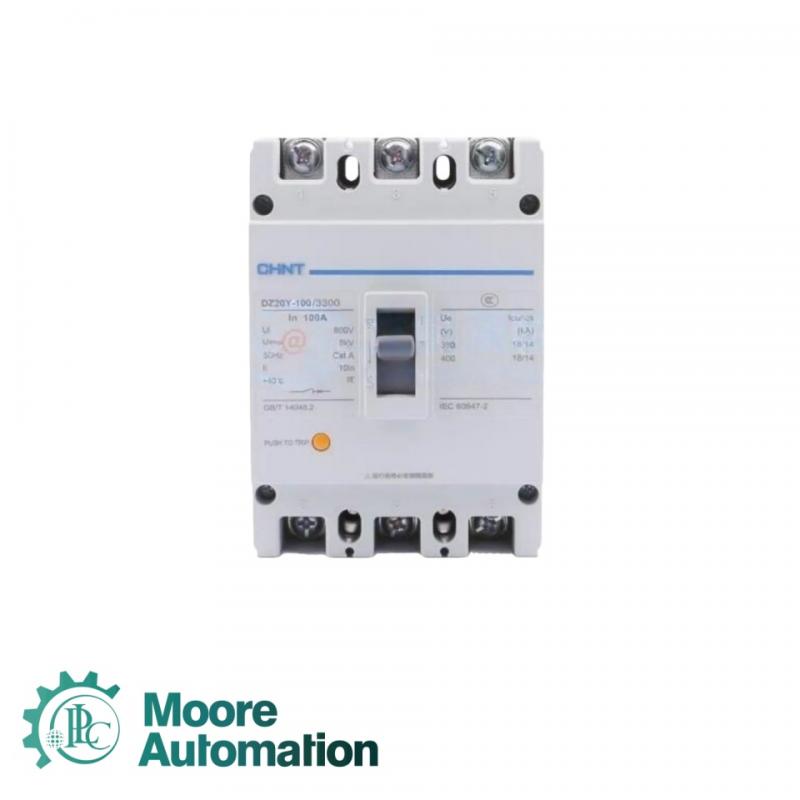

CHNT DZ20Y-100/3300 100A Circuit Breaker

Details for 6GK5005-0BA00-1AA3

Rated current (In): 100 A
Rated operating voltage (Ue): AC 400 V
Rated insulation voltage (Ui): AC 690 V
Rated frequency: 50/60 Hz
Number of poles: 3P (three poles)
Rated short-circuit breaking capacity (Icu): 50 kA (under AC 400V conditions)
Rated short-circuit operating capacity (Ics): 75% Icu
Rated impulse withstand voltage (Uimp): 8 kV
Release type: Thermal Magnetic
Overload protection feature: bimetallic strip thermal trip
Short circuit protection feature: electromagnetic instantaneous tripping
Adjustable tripping current range: 0.8~1 × In
Mechanical lifespan: ≥ 10000 operations
Electrical lifespan: ≥ 5000 operations

The CHNT DZ20Y-100/3300 100A circuit breaker is a high-performance molded case circuit breaker (MCCB) designed by Chint Electric for industrial and building power systems. This model has reliable overload, short circuit, and undervoltage protection functions, which can effectively protect the circuit and electrical equipment from damage.
