Product Overview

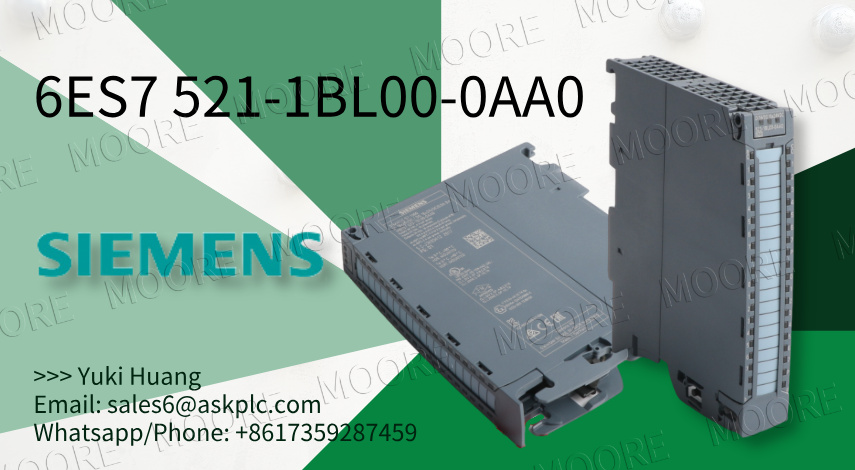

The Siemens 6ES7 521-1BL00-0AA0 is a high-performance digital input module from the S7-1500 series, designed for capturing binary signals in industrial control systems. This module supports high-speed sampling, flexible expansion, and full integration with the S7-1500 PLC, ensuring stable and reliable data acquisition in automation systems.

Key Features:

• 16 digital input channels, compatible with standard 24V DC signals

• High-speed sampling, suitable for high-frequency pulses and fast logic acquisition

• Modular design, easily integrates into the S7-1500 I/O system

• Diagnostic capabilities, supporting online monitoring and status detection

• Profinet communication, real-time data transfer to the CPU

Technical Specifications

Functional Advantages

1. High-Speed Response
   Supports millisecond-level signal acquisition, suitable for high-speed counting, pulse detection, and logic control.

2. Reliability and Safety
   Built-in opto-isolation and short-circuit protection prevent signal interference and module damage.

3. Modular Expansion
   Seamlessly connects with S7-1500 CPUs, supporting flexible I/O expansion and configuration.

4. Intelligent Diagnostics
   Online monitoring via TIA Portal allows real-time viewing of input status and fault information, improving system maintenance efficiency.

5. Strong Industrial Compatibility
   Suitable for various industrial environments, including manufacturing, energy, process control, and automation lines.

Application Scenarios

• Production Line Monitoring: Captures sensor switch signals for real-time monitoring of equipment status.

• High-Speed Counting and Pulse Acquisition: Ideal for counters and encoder signal acquisition in high-frequency applications.

• Process Control Systems: Connects with safety switches, push buttons, and signal devices to ensure stable process control.

• Automation Equipment Integration: Widely used in packaging, assembly, conveyor systems, and robotic automation.

Conclusion

The Siemens 6ES7 521-1BL00-0AA0 module is a high-performance, reliable digital input module in the S7-1500 series. With its high-speed response, modular design, and online diagnostics, it significantly enhances signal acquisition efficiency and reliability in industrial automation, providing engineers with a stable input solution for complex control systems.
