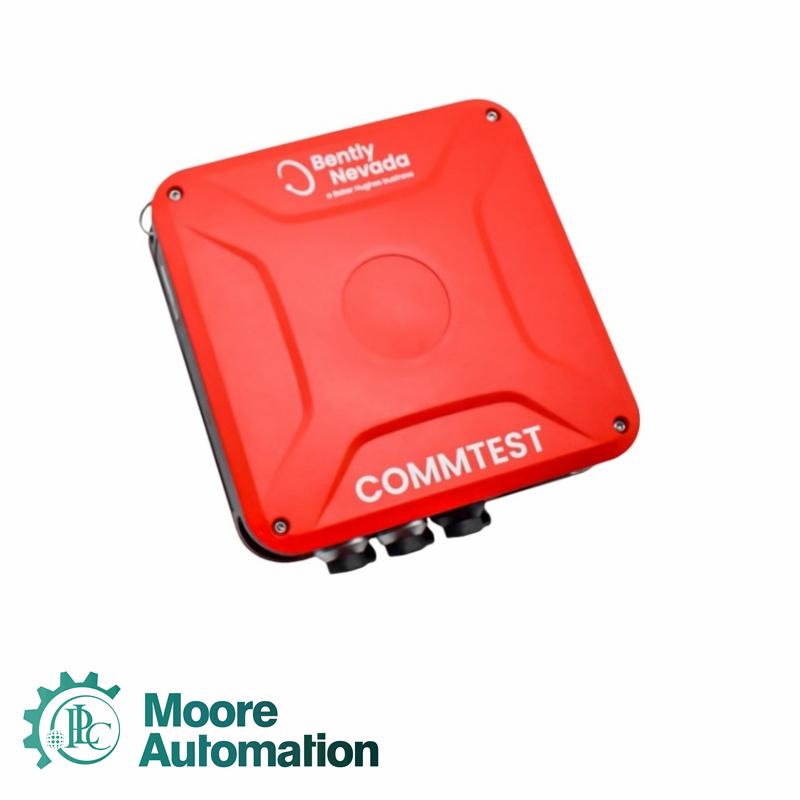

Bently Nevada COMMTEST 220 Portable Data Collector

Top Sales Manager--John Yang

Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Quick Details

Brand name:Bently Nevada

Model: COMMTEST 220

Delivery time: 1-3 days

Payment method: T/T

Quality: 100% original and 100% brand

Warranty period: 1 year

Transportation period: DHL FEDEX EMS UPS TNT

★ Brand new   ★ In stock   ★ competitive price ★ Email: sales3@askplc.com

Product Overview

Bently Nevada™ Scout™COMMTEST220 and COMMTEST240 are portable data analyzer solutions designed to monitor machinery in non-hazardous environments. These small form-factor, rugged devices take vibration recordings and upload the collected data for detailed analysis in System 1. This is a two-part solution. The COMMTEST data acquisition module uses Bluetooth to communicate with a wireless, industrial handheld device running the S1 Collector app. Vibration recordings are viewed and stored on the handheld device.The handheld runs the Android OSor Apple iOS, so you can also use it like any smartphone or tablet to take pictures and video, send text messages, check email, make phone calls, track your location, create SOS alerts, and run other enterprise apps.

★ Brand new   ★ In stock   ★ competitive price ★ Email: sales3@askplc.com

Performance Specifications

Sensor Input Channels: 2 simultaneous sampling
Compatible Sensor Types: Accelerometer, velocity, displacement, and voltage
AC Coupled Range: 16 V peak-to-peak (±8 V sensor output swing, ±80 g)
DC Coupled Ranges: 0 to 20 V, -10 to 10 V, -20 to 0 V
Connectors: 2 × LEMO for CH1 & CH2+, 1 × LEMO for Tach/Keyphasor
Analog-to-Digital Conversion: 24-bit ADC
Sensor Excitation Current: 0 mA or 2.2 mA configurable, 24 V max (2.2 mA powers IEPE/ICP-type sensors)
Sensor Detection: Measures bias voltage; warns if short circuit or not connected
Optional Laser Tach: Powered by Portable Data Collector; triggers on reflective tape 10 cm–2 m; speed 6–250 krpm
Other Sensor Types Supported: Contact, TTL Pulse, Keyphasor
Power Supply to Sensor: 5 V, 40 mA
Input Impedance & Max Values: 100 kΩ, ±28 V max
Waveform Display Range: ±20 V
Threshold Range: ±20 V, ±0.4 V accuracy
Autothreshold Mode: Signal ≥ 3 V pk-pk, machine speed ≥ 60 rpm (1 Hz), settles < 15 s, hysteresis 0.2 V configurable
Speed Range: Minimum 3 rpm (0.05 Hz), Maximum 1,200,000 rpm (20 kHz)
Signal Pulse Width: 10 µs minimum, 2% duty cycle (auto-threshold)
Accuracy: ±(0.1% + 1 cpm) up to 5 kHz, ±0.3% above 5 kHz
Dynamic Signal Range: >95 dB typical at 400 line resolution
Harmonic Distortion: < -70 dB typical
Units: g or m/s², in/s or mm/s, mil or mm or µm; peak, peak-to-peak, or RMS
Magnitude & Cursors: Overall RMS, derived pk, derived pk-pk, dual cursors, digital readouts on chart
Base Accuracy: AC signal ±1% of readings; DC level ±1% of full scale (~0.1 dB)
High Frequency Attenuation: ≤0.1 dB >100 Hz to 10 kHz; ≤3 dB >10 kHz to 40 kHz
AC Coupling Attenuation: ≤0.1 dB 10 Hz to <100 Hz; ≤3 dB 1 Hz to <10 Hz
Integration Attenuation: ≤0.1 dB 10 Hz to <100 Hz; ≤1.5 dB 1 Hz to <10 Hz (single integration)
Operating Temperature: -20 to +60°C (-4°F to 140°F)
Ambient Temperature for Charging: 0°C to 25°C (32°F to 77°F)
Storage Temperature & Humidity: -20 to +60°C (-4°F to 140°F), 95% RH; up to 35°C, 85% RH if storage >1 month
Ruggedness Drop & Sealing: MIL-STD-810F516.5-IV, 26 drops from 1.2 m onto concrete, IP65

★ Brand new   ★ In stock   ★ competitive price ★ Email: sales3@askplc.com

Hardware Features
Battery life of 10 hours allows the data collector to run all day.
Five year warranty.
Rugged, water, and dust resistant (IP-65),drop-tested.
Easy to carry: lightweight handheld unit,shoulder strap for data collector, keepers for sensors.
Safety breakaways on both shoulder strap and sensor cables.
Upgradable industrial handheld smartphone.
Handheld Push-to-Talk(PTT) button is configured to start measurements (where available).
Up to four channel simultaneous recordings (including on-route).
COMMTEST240 supports Triaxial sensors.
Up to 12,800 lines of spectral resolution,
80 kHz Fmax.
Supports accelerometer, velocity, displacement, and voltage-output sensors of AC and DC coupling types.

Software Features
Seamless on-and off-route data collection.
Route overview & easy route navigation.
Fast sensor settling and data collection.
Patented 6Pack time-saving measurement type.
Synchronous sampling, peak demod, and bump test.
Coast-down, run-up, and interval capture support.
Custom note and numeric data entry.
Rotor Balancing, dual plane, reports transferred to System 1.
Data quality warnings and easy-tounderstand alarm annunciation.
Supports operator driven reliability (ODR).
Cross Channel Phase measurement & reports.
Cross Channel FRF measurement & export UFF.
