 Bently Nevada 991-06-70-02-05 991 Thrust Transmitter
991-06-70-02-05

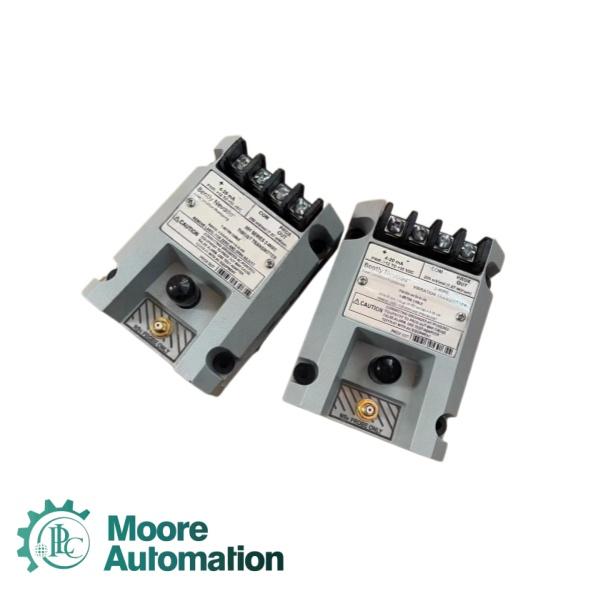

Bently Nevada 991-06-70-02-05 991 Thrust Transmitter

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Item NO.:

    991-06-70-02-05

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Product Origin:

    USA

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The Bently Nevada 991-06-70-02-05 is a loop-powered axial-thrust transmitter in the Bently Nevada 991 Series. It converts the non-contacting proximity measurement from a compatible NSv transducer system into a proportional 4–20 mA signal for continuous machinery monitoring and protection. The transmitter supports long cable runs between the field installation and receiving equipment and is configured for hazardous-area and maritime applications.
Product reference991 — thrust transmitter
Full-scale range (AA)06 — 0.6–0–0.6 mm
System length (BB)70 — 7.0 m (23.0 ft)
Mounting arrangement (CC)02 — bulkhead screws
Agency approvals (DD)05 — CSA Division 2, ATEX Zone 0 and Zone 2, with ABS maritime approval
Output signal4–20 mA
Power supply17–35 Vdc
Maximum transmitter-to-receiver distance13 km (8 mi)
Probe operating and storage temperature−52°C to +177°C (−62°F to +351°F)
Typical complete-system mass0.82 kg (1.8 lb)
Application Industry
01
Steam and Gas TurbinesMonitors axial rotor position for thrust-bearing condition assessment and machinery protection.
02
Compressors and PumpsProvides continuous thrust-position indication on critical rotating equipment fitted with compatible NSv components.
03
Remote Machinery MonitoringTransmits a standard 4–20 mA signal over distances up to 13 km to control, protection or data-acquisition equipment.
04
Hazardous and Maritime InstallationsSupports approved Division 2, ATEX Zone 0/Zone 2 and ABS maritime applications when installed according to the applicable requirements.
FAQ
What measurement range is configured for the Bently Nevada 991-06-70-02-05?
Its full-scale range is 0.6–0–0.6 mm for bidirectional axial-thrust position measurement.
What power and output signal does this transmitter use?
It operates from 17–35 Vdc and supplies a proportional 4–20 mA output.
What system length and mounting arrangement are specified?
This reference is calibrated for a 7.0 m system and uses bulkhead-screw mounting.
Which approvals are included with code 05?
Code 05 covers CSA Division 2, ATEX Zone 0 and Zone 2 approvals and includes ABS maritime approval.
Can Moore Automation help verify the matching probe and installation requirements?
Yes. Provide the existing probe, system-length, monitor-input and hazardous-area requirements so compatibility can be checked before ordering.
