Bently Nevada 991-06-70-02-00 Thrust Transmitter

Sale Manager: John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

991-06-70-02-00------In stock & Full New

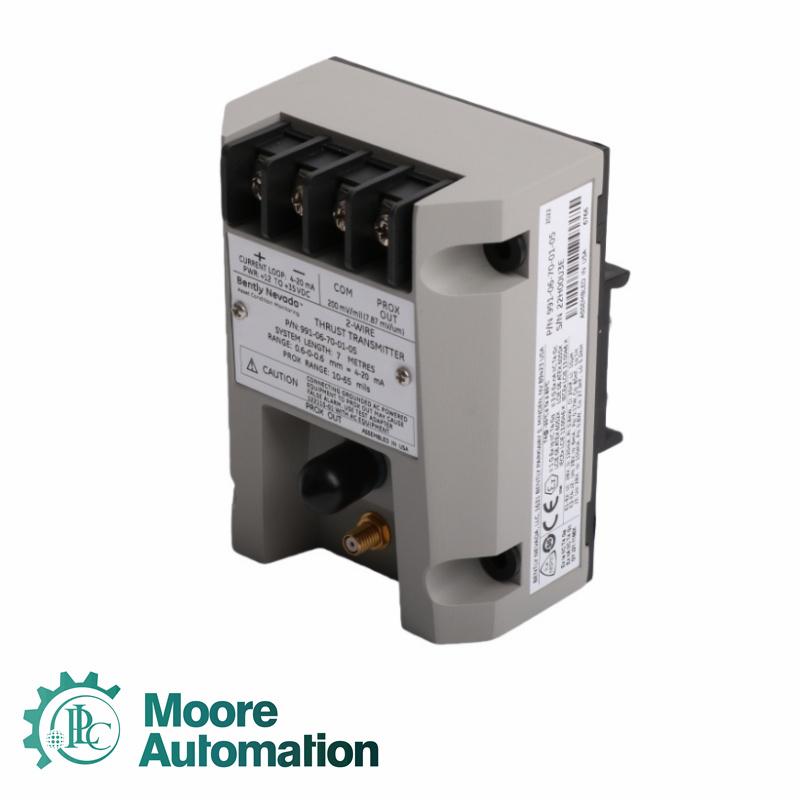

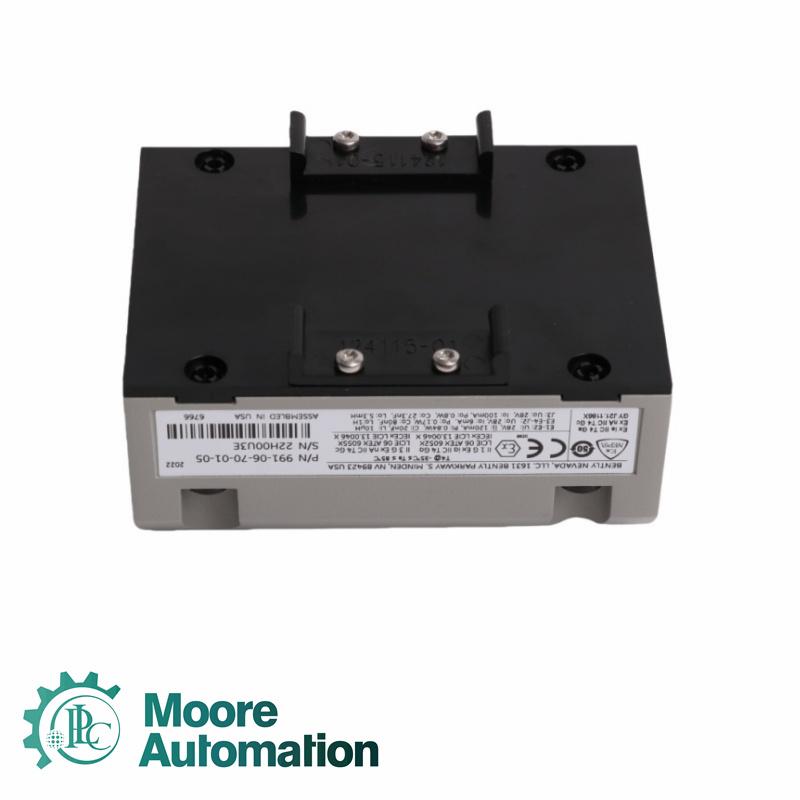

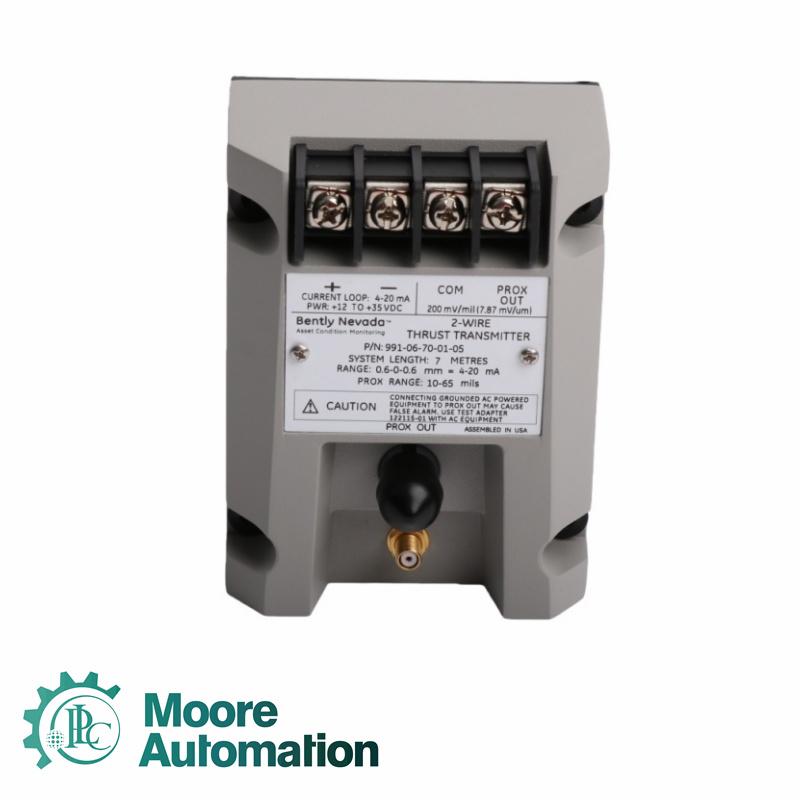

991 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional axial displacement (thrust) signal as the input to their machinery control system. The transmitter is a 2-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate engineering units proportional to the shaft’s axial position1, and provides it as a 4 to 20 mA industry-standard signal for input to the control system where machinery protection alarming and logic occurs2. The 991 transmitter provides the following notable features: l Integrated Proximitor Sensor requires no external unit l Non-isolated PROX OUT and COM terminals plus a coaxial connector provide a dynamic vibration and gap voltage signal output for diagnostics3. l Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment. l Test Input pin allows quick verification of loop signal output, using a variable DC voltage source as the input. l A Power-up Inhibit circuit eliminates signal errors due to line voltage transients. l A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection. l Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting. l Potted construction for high humidity (up to 100% condensing) environments. l Compatibility with 3300 NSv proximity probe allows transducer installation in small areas with minimal clearance, typical of centrifugal air compressors.

991-06-70-02-00------In stock & Full New

991-06-70-02-00------In stock & Full New

991-06-70-02-00------In stock & Full New

991-06-70-02-00------In stock & Full New

Other items in stock worth checking

991-06-70-02-00------In stock & Full New
