Product Infor
Brand name: Bently Nevada
Model: 990-08-50-01-05
Warranty period: 1 year
Condition: 100% original new
Transportation period: DHL FEDEX EMS UPS TNT
Full Details
Full-scale Option
0-8 mils pp (0-200 μm pp)
System Length Option
5.0 meters (16.4 feet)
Mounting Option

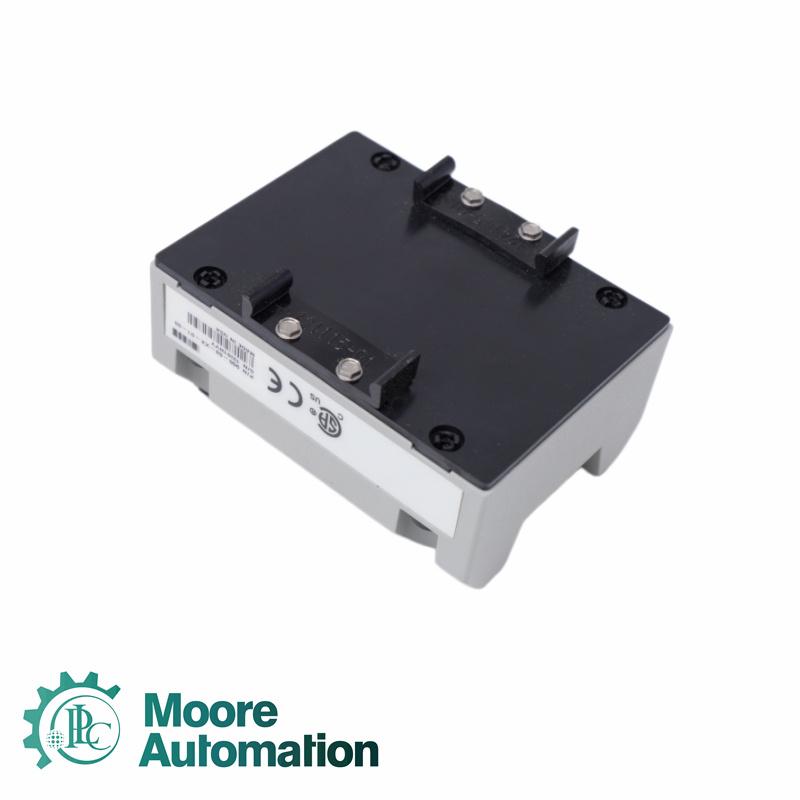

35 mm DIN rail clips
Agency Approval Option
CSA Division 2, ATEX Zone 0, ATEX Zone 2 and includes ABS maritime approval
Input
Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable
Power
Requires +12 to +35 Vdc input at the transmitter terminal
Maximum Loop Resistance
1,000 Ω including cable at 35 Vdc
Current Limiting
23 mA typical
Output Impedance
Prox Out has a 10 kΩoutput impedance calibrated for a 10 MΩload
Prox out linear range
1.4 mm (55 mils)
Prox Out incremental scale factor
7.87 mV/µm (200 mV/mil) ±6.5% typical including interchangeability errors when measured in increments of 0.25 mm (10 mils) over the linear range using a flat 30 mm (1.2 inch) target.
4 to 20 mA loop accuracy
Within ±1.5% over specified fullscale range
4 to 20 mA signal output
4 to 20 mAdc over specified fullscale range in 2-wire configuration
Zero and span
Non-interacting external adjustments
NOT OK/signal defeat
Signal output will go to less than 3.6 mA within 100 µs after a Not OK condition occurs
Qiuck Details

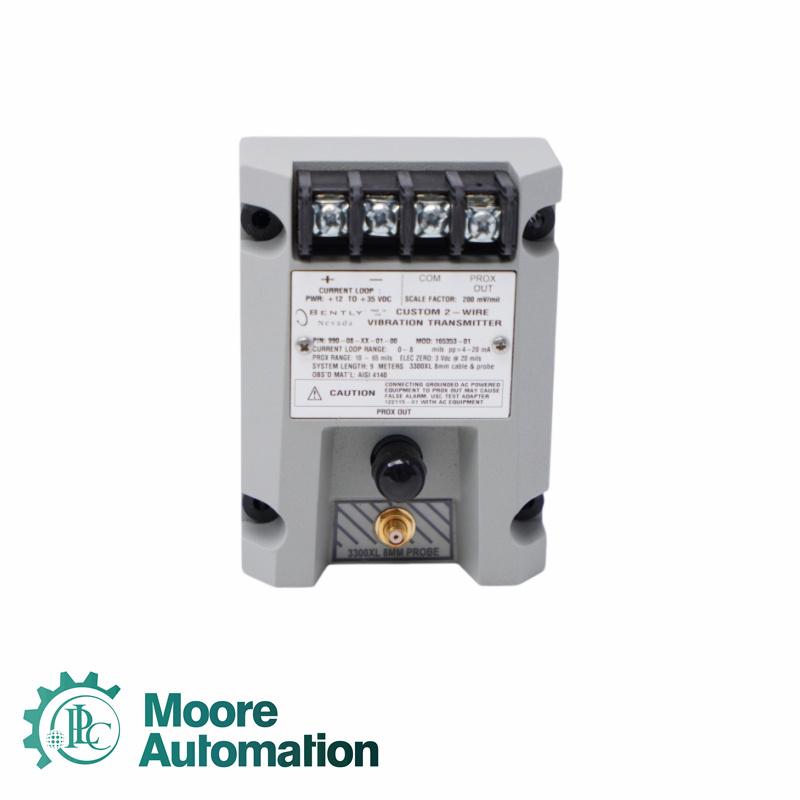

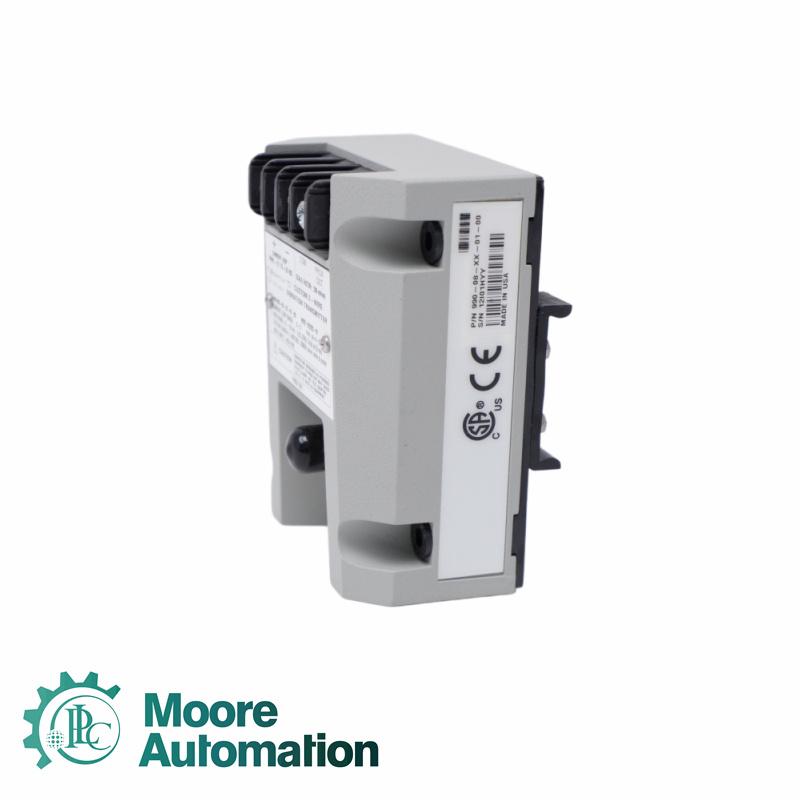

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.
|
Ask for Quotation |
|
|
|
Contact: John Yang |
|
|
Email: sales3@askplc.com |
|
|
Mobile(WhatsApp): 86-18150117685 |
Application
Chemical plants: Routine vibration monitoring for pumps and fans bearing systems.
Power plants: Motor vibration protection for auxiliary pumps and induced/draft fans.
Steel plants: Mechanical condition monitoring for cooling tower fans and dust extraction fans.
Refineries: Field vibration alarms for small and medium centrifugal and reciprocating pumps.
Cement plants: Vibration measurement for ball mills and separator bearing housings.
Careful Customer Service
Over millions spares inventory
Fast lead times deliver uptime globally
100% brand-new and original products
Competitive prices and specific dealer discounts
Frequently Asked Questions
Q: What is the full-scale range option for 990-08-50-01-05?
A: It is 0-8 mils pp (0-200 μm pp).
Q: What system length is configured for 990-08-50-01-05?
A: The system length is 5.0 meters (16.4 feet).
Q: What mounting option does 990-08-50-01-05 use?
A: It uses 35 mm DIN rail clips.
Q: What input power does 990-08-50-01-05 require?
A: It requires +12 to +35 Vdc input.
Q: What is the linear range of the 990-08-50-01-05 prox out?
A: It is 1.4 mm (55 mils).
