 Bently Nevada 86517-XX-XX-01-02 Mod: 159840-1 Accelerometer Interface Module
86517-XX-XX-01-02 Mod: 159840-1 86517-XX-XX-01-02 Mod: 159840-1 86517-XX-XX-01-02 Mod: 159840-1

Bently Nevada 86517-XX-XX-01-02 Mod: 159840-1 Accelerometer Interface Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    USA

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications

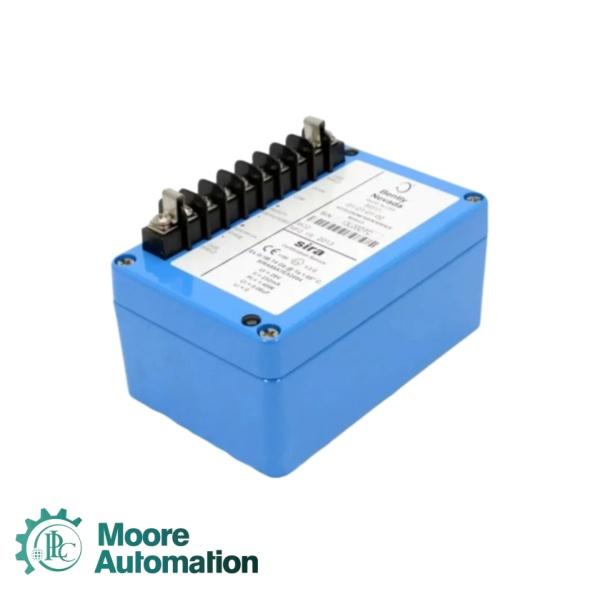

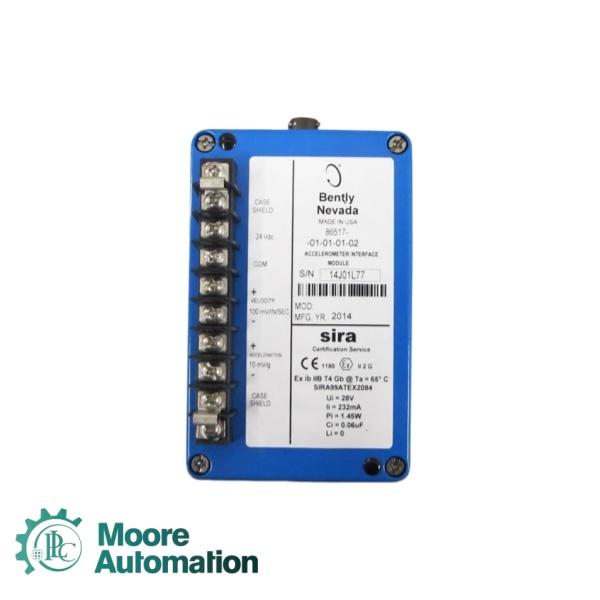

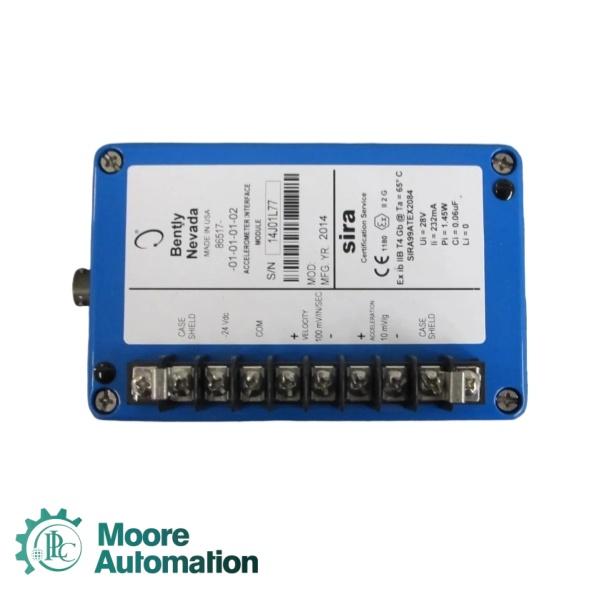

The Bently Nevada 86517-XX-XX-01-02 Mod: 159840-1 is an accelerometer interface module in the Bently Nevada 3300 Series Accelerometer Interface System. It conditions charge signals from high-temperature accelerometers for aeroderivative gas-generator and gas-turbine vibration monitoring, providing calibrated acceleration and velocity outputs for compatible monitors. The Bently Nevada 86517-XX-XX-01-02 Mod: 159840-1 specifies a −10 Vdc signal-bias option and CENELEC (SIRA) approval; the two XX fields are not assigned specific sensitivity or filter values.
Product family86517 = accelerometer interface module
Current draw22 mA maximum
DC signal bias (C)01 = −10 Vdc
Acceleration output10 mV/g peak
Agency approval (D)02 = CENELEC (SIRA)
Velocity output100 mV/in/s peak
Supply voltage−23 to −26 Vdc
Operating temperature0 to +70 °C
Application Industry
01
Aeroderivative gas turbinesConditions high-temperature accelerometer signals for turbine vibration monitoring.
02
Aeroderivative gas generatorsProvides acceleration and integrated velocity signals for machinery protection.
03
3300/95 monitoring systemsInterfaces charge accelerometers with the 3300/95 Filter Module/Vibration Monitor.
04
Modified 3300 monitor channelsSupports specified modified 3300/15 and 3300/25 monitor applications.
FAQ
What do the two XX fields mean in this supplied model?
They indicate that the transducer charge-sensitivity and filter-corner options are not specified in the provided model string; they should be confirmed from the nameplate or order record.
Which options are explicitly identified by 01-02?
The official ordering table identifies 01 as −10 Vdc signal bias and 02 as CENELEC (SIRA) approval.
What outputs does the module provide?
The module provides a 10 mV/g peak acceleration output and a 100 mV/in/s peak velocity output.
Which monitor should be checked for compatibility?
Confirm use with the 3300/95 or the applicable specially modified 3300/15 or 3300/25 monitor and the correct accelerometer.
Can Moore Automation verify the unspecified options before shipment?
Yes. Moore Automation can review nameplate photographs and available records, inspect the module, and provide available technical documents before dispatch.
