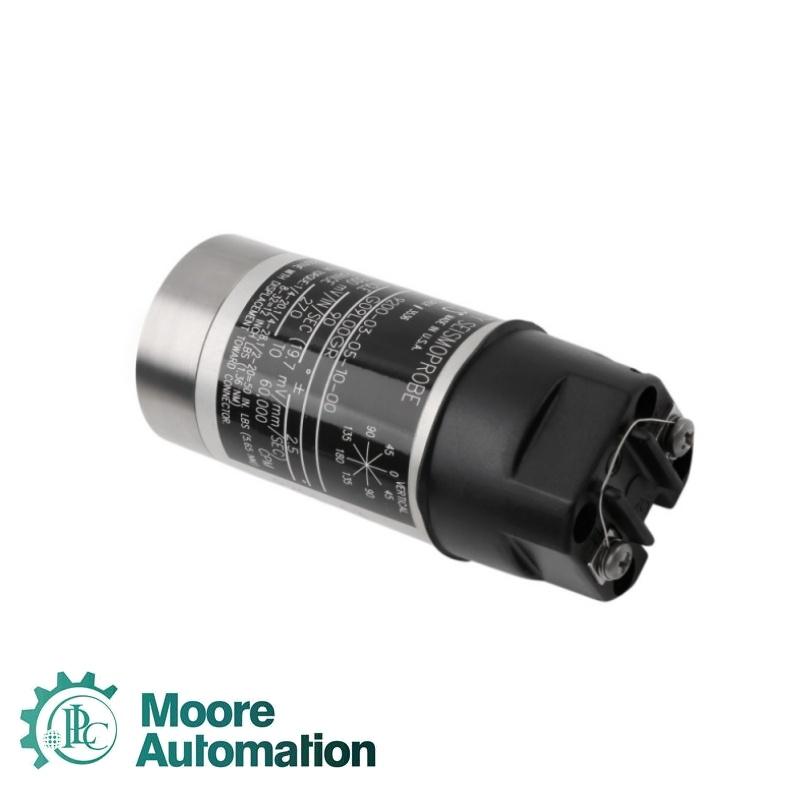

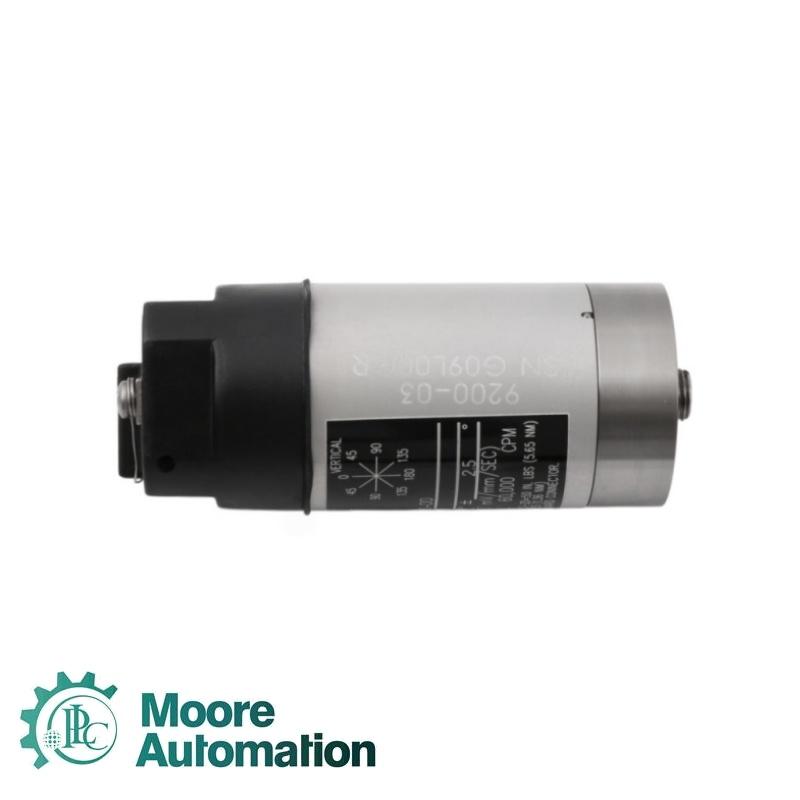

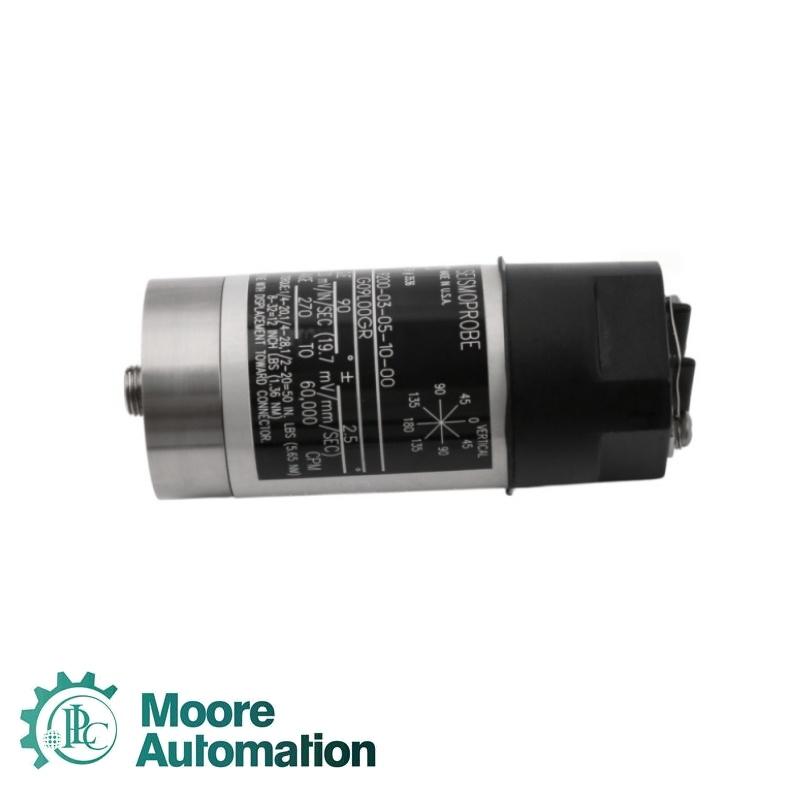

Bently Nevada 74712-06-03-04-00 High-Temperature Seismoprobe Velocity Transducer

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Mode of transport:
HS CODE:
Warranty:
1 Year
Product Origin:
Lead Time:
Service:

Product Detail

Specifications

The Bently Nevada 74712-06-03-04-00 is a high-temperature moving-coil Seismoprobe velocity transducer configured for 0° mounting, a rectangular-flange base, a side-mounted connection and no hazardous-area approval option. Official Baker Hughes data specifies 20 mV/mm/s sensitivity, a 10 Hz lower frequency limit for this mounting-angle option and operation up to 204 °C.

Product typeHigh-temperature moving-coil velocity transducer

Sensitivity20 mV/mm/s

Sensitivity tolerance±5%

Low-frequency limit10 Hz

High-frequency limit1 kHz

Mounting angle0° ±100°

Mounting baseRectangular flange

Connector orientationSide mount

Operating temperature-29 to +204 °C

Relative humidityUp to 95%, noncondensing

Approximate weight480 g

Approval optionNo approvals

Application Industry

High-temperature bearing monitoringMeasures casing or bearing-housing vibration where the ambient temperature exceeds standard transducer limits.

Turbine vibration measurementProvides absolute vibration velocity input for machinery-monitoring systems on rotating equipment.

Flange-mounted machine casesUses the rectangular flange base where the installation drawing specifies that mounting footprint.

Side-access installationsPlaces the connection on the side for machine locations with limited axial access.

FAQ

What monitoring input is required for Bently Nevada 74712-06-03-04-00?

Use a compatible velocity-transducer input that accepts the specified moving-coil sensitivity and frequency range.

What mounting angle applies to Bently Nevada 74712-06-03-04-00?

The configured option supports installation from 0° through ±100° while retaining the stated low-frequency limit.

Which mounting base is supplied with Bently Nevada 74712-06-03-04-00?

The configured assembly uses a rectangular flange; verify the hole pattern and surface preparation against the machine drawing.

Where is the connection located on Bently Nevada 74712-06-03-04-00?

The connection is arranged on the side, so sufficient lateral cable clearance is required.

Can Bently Nevada 74712-06-03-04-00 be installed in a hazardous area?

The selected approval option carries no hazardous-area approval; use only where the site classification permits it.

Company Service

✓Model ValidationFull suffix and system-fit review

⊙Label InspectionClear identification and certification-label checks

▣Secure PackingProtected packaging for electronic assemblies

↗Global DeliveryTracked international shipping from stock

◇Warranty SupportResponsive after-sales handling

▤Document ServiceOfficial manuals and certificates when available
