Bently Nevada 330910-00-16-10-01-00 3300 NSv Proximity Probes

Contact Yuki

Email:Sales6@askplc.com   |    Whatsapp: +86-17359287459

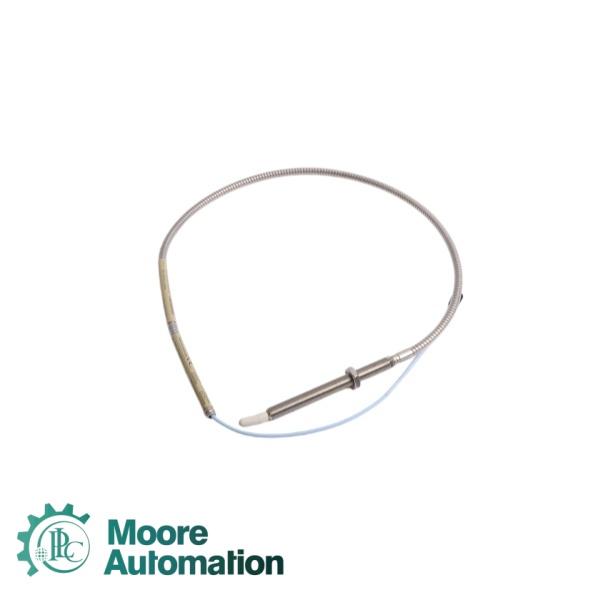

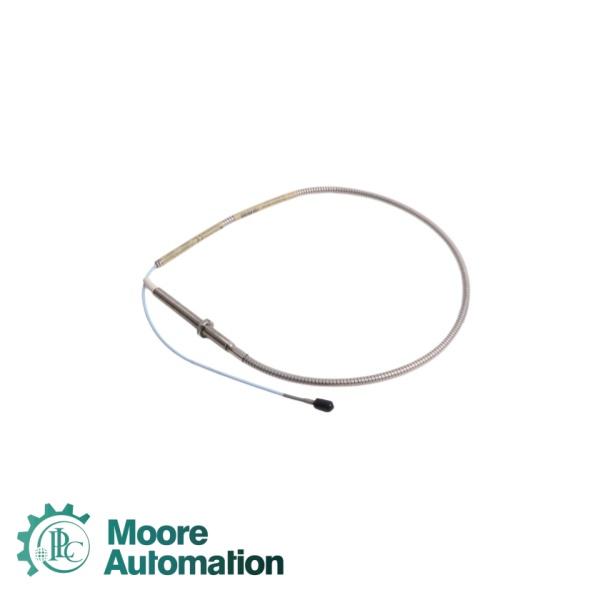

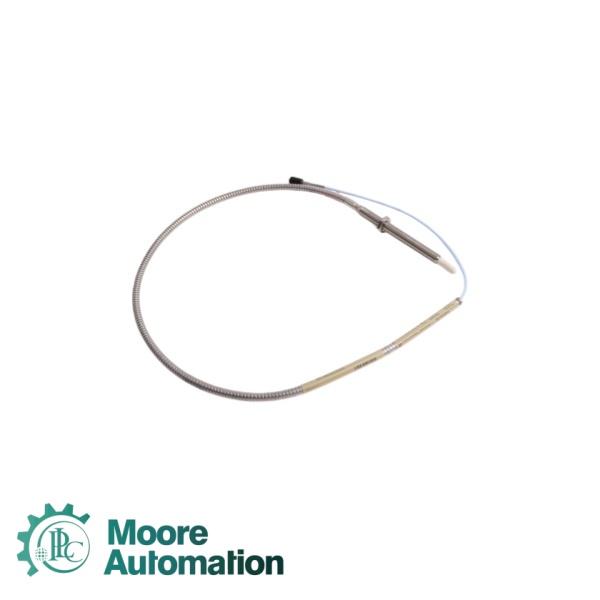

The Bently Nevada 330910-00-16-10-01-00 is a proximity probe from the 3300 NSv (Next-generation Sensor Validation) series, designed for non-contact vibration and position monitoring of rotating machinery in space-constrained environments. Featuring an M10 x 1 metric thread with stainless steel armor, a 160 mm case length, and a 1.0-meter integral armored cable terminating in a miniature coaxial ClickLoc™ connector with connector protector, this probe is specifically engineered for applications where counterbore, side-view, or rear-view restrictions limit the use of standard 5 mm and 8 mm transducer systems .

Product Details

Technical Data

➤ Average Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)

➤ Linear Range: 0.25 mm to 1.75 mm (10 to 70 mils) from target

➤ Nominal Gap (Recommended): 1.0 mm (40 mils) @ -9 Vdc

➤ Frequency Response: 0 to 10 kHz (-3 dB)

➤ Output Impedance: 50 Ω nominal

➤ Cable Impedance: 75 Ω coaxial

➤ DC Resistance (for 1.0m length): 4.2 Ω ± 0.5 Ω

➤ Pull Strength (CableLoc®): 220 N (50 lb)

➤ Minimum Bend Radius: 25.4 mm (1.0 inch)

➤ Installation Torque (Maximum): 0.56 N·m (5 in·lb)

➤ Maximum Torque (Thread Engagement): 33.9 N·m (300 in·lb)

➤ Operating Temperature: –52°C to +177°C (–62°F to +351°F)

➤ Storage Temperature: –52°C to +177°C (–62°F to +351°F)

Application

Radial Vibration Monitoring: Measuring shaft vibration relative to the bearing housing in high-speed rotating machinery .
Axial (Thrust) Position Monitoring: Monitoring shaft axial displacement to prevent thrust bearing failure .
Keyphasor® Reference Signal: Generating a once-per-turn timing marker for phase measurement and rotor balancing .
Small Shaft Monitoring: Specifically designed for shafts less than 51 mm (2 inches) in diameter, or planar targets less than 15 mm (0.6 inches) .

FAQ

Q: What is Bently Nevada known for?

A: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q: What industries does Bently Nevada serve?

A: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q: What types of measurements do Bently Nevada products provide?

A: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q: Are Bently Nevada products compliant with international standards?

A: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q: What is the 3500 monitoring system?

A: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
