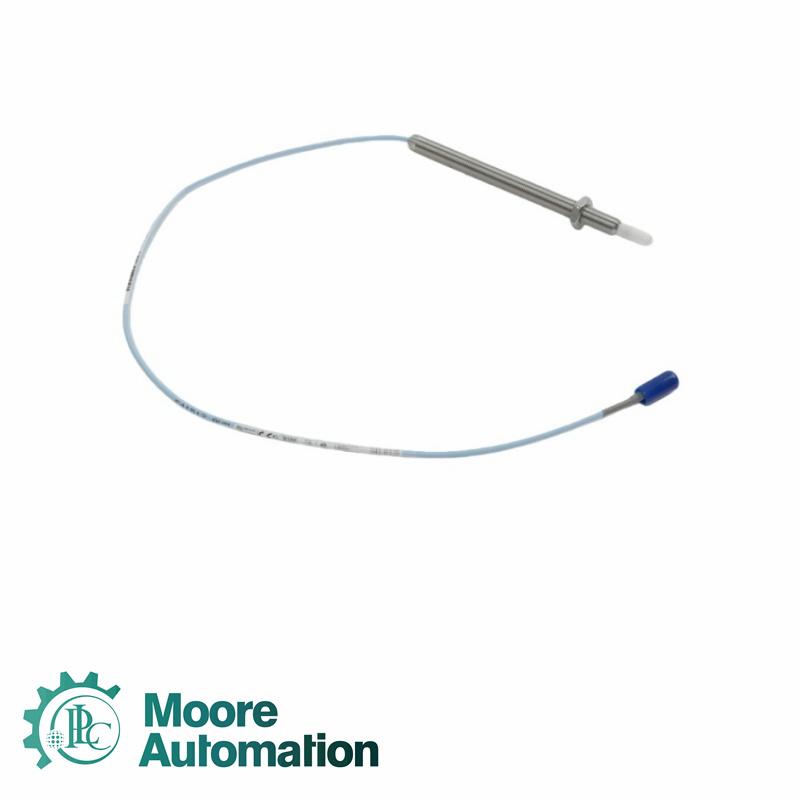

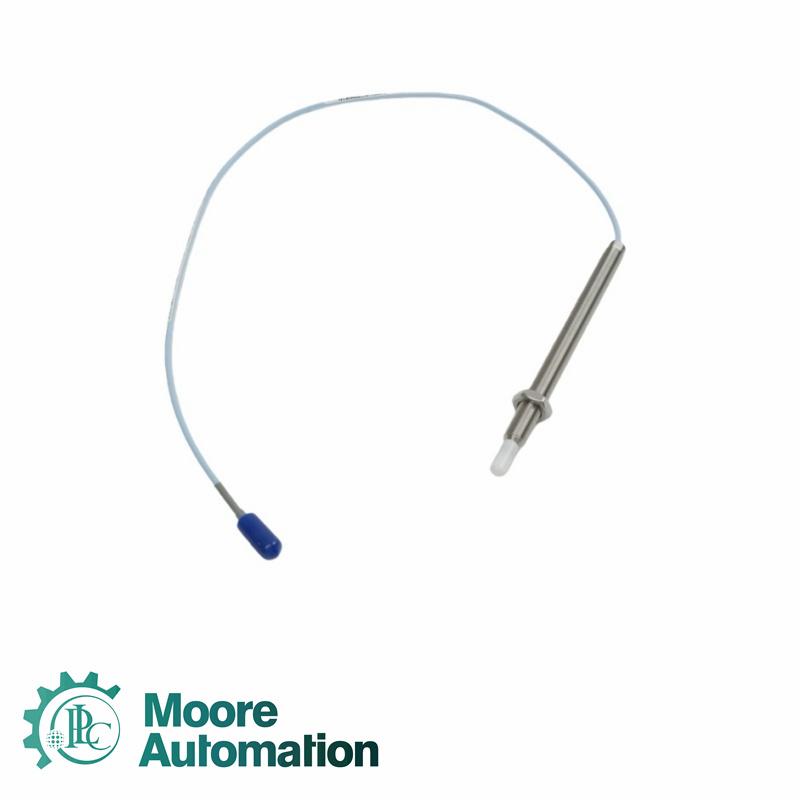

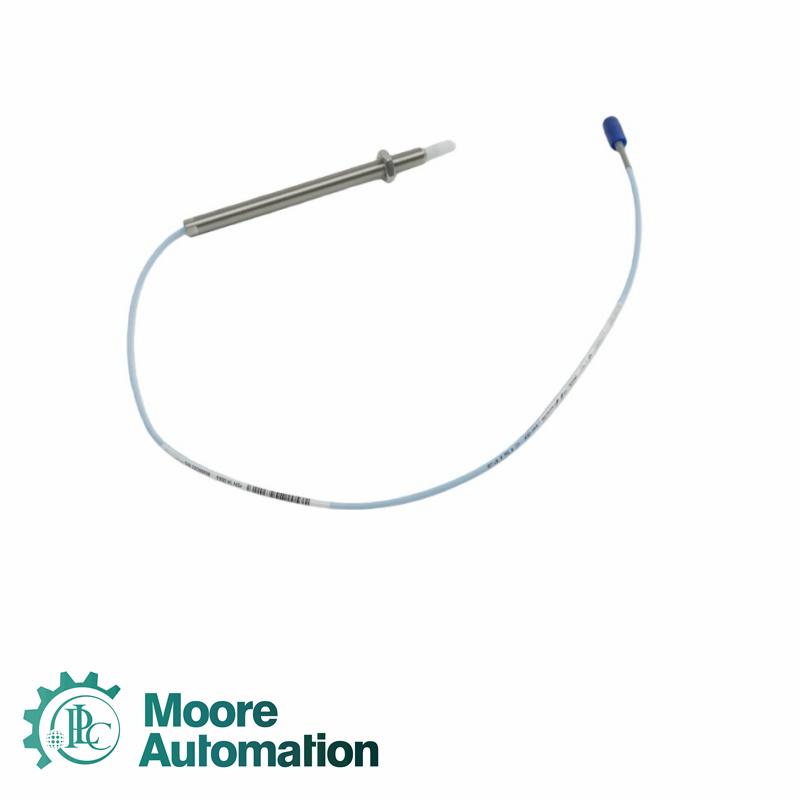

Here is the information about Bently Nevada 330905-00-18-05-02-CN
Specifications
Unthreaded length option
0 mm
Overall case length option
180 mm
Cable length option
0.5 m (20 in)
Connector and cable option
Miniature coaxial ClickLoc connector, standard cable
Agency approval option
Multiple approvals
Probe case thread
M8×1 thread
Maximum thread engagement length
12 mm
Dimensions
1.8x1.6x66cm
Weight
0.05kg
Probe temperature range
-52°C to +177°C (-62°F to +351°F)
Storage temperature range
-52°C to +177°C (-62°F to +351°F)
Probe tip material
Polyphenylene sulfide (PPS)
Probe case material
AISI 304 stainless steel (SST)
Field wiring
0.2 to 1.5 mm² (16 to 24 AWG); 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules
Linear range
1.5 mm (60 mils)
Recommended gap setting
1.0 mm (40 mils)
Output resistance
50 Ω
Supply sensitivity
<2 mV change in output voltage per 1 V change in input voltage
Product Description
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
Application
Precision Machine Tool Plants: Used for radial runout monitoring of high-precision grinding machines and machining center spindles, where the M8 size fits compact bearing housings.
Aerospace Power Plants: Applied to auxiliary equipment of small gas turbines for speed and displacement monitoring, using an extended housing to penetrate multiple thermal insulation layers.
Semiconductor Electronics Plants: Provide non-contact stable position feedback in high-cleanliness, high-frequency vibration vacuum pump systems.
Fine Chemical Plants: Used for monitoring axial displacement of small sealed pumps and mixers, with 304 stainless steel resisting various chemical media corrosion.
Special Bearing Manufacturing Plants: Applied as high-frequency displacement sensors on bearing fatigue test rigs, where PPS heads ensure measurement accuracy.
Frequently Asked Questions
Q: Why is a 180 mm housing used in the 330905-00-18-05-02-CN?
A: It enables deep installation, allowing the M8 probe to reach internal critical monitoring points in thick or complex structures.
Q: Is a 1.0 mm gap necessary for the 330905-00-18-05-02-CN installation?
A: Yes. 1.0 mm is the midpoint of the 1.5 mm linear range, ensuring optimal symmetric vibration measurement accuracy.
Q: Will the PPS head of the 330905-00-18-05-02-CN degrade at 177°C?
A: No. PPS maintains stable structure and insulation under long-term high-temperature operation.
Q: What are the advantages of the fully threaded design in the 180 mm housing of the 330905-00-18-05-02-CN?
A: It allows flexible positioning and fine adjustment of the gap anywhere along the full housing length.
Q: Does the “CN” suffix in the 330905-00-18-05-02-CN affect performance?
A: No. It indicates regional compliance or packaging, while core electrical performance remains unchanged.
|
