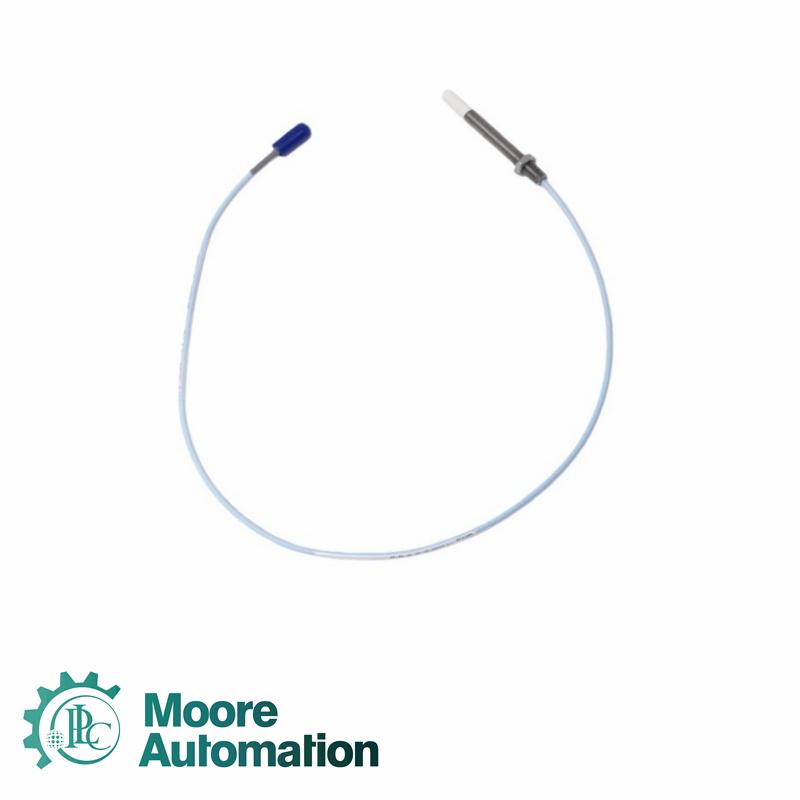

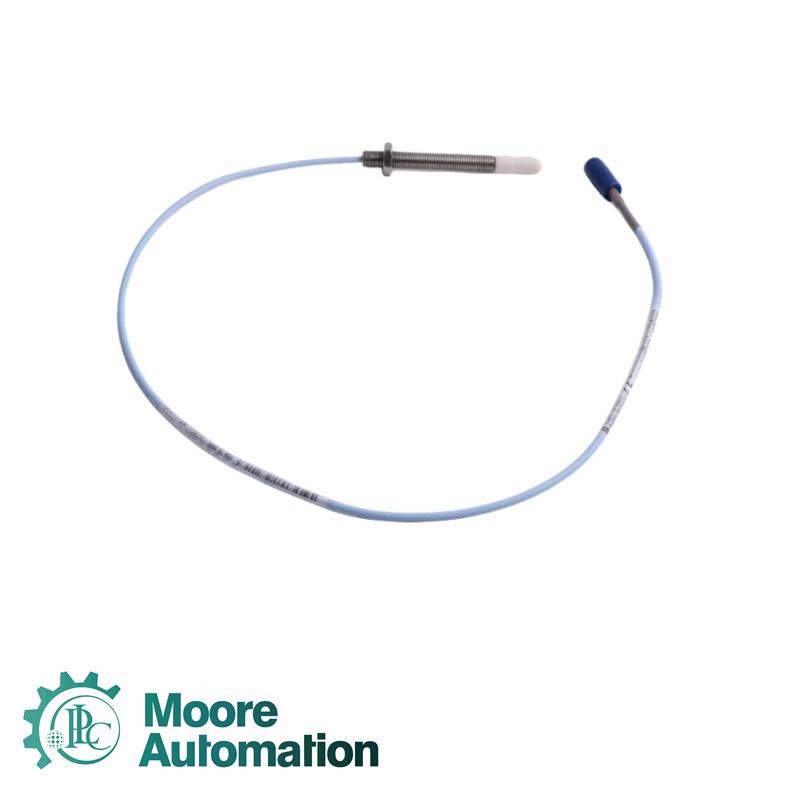

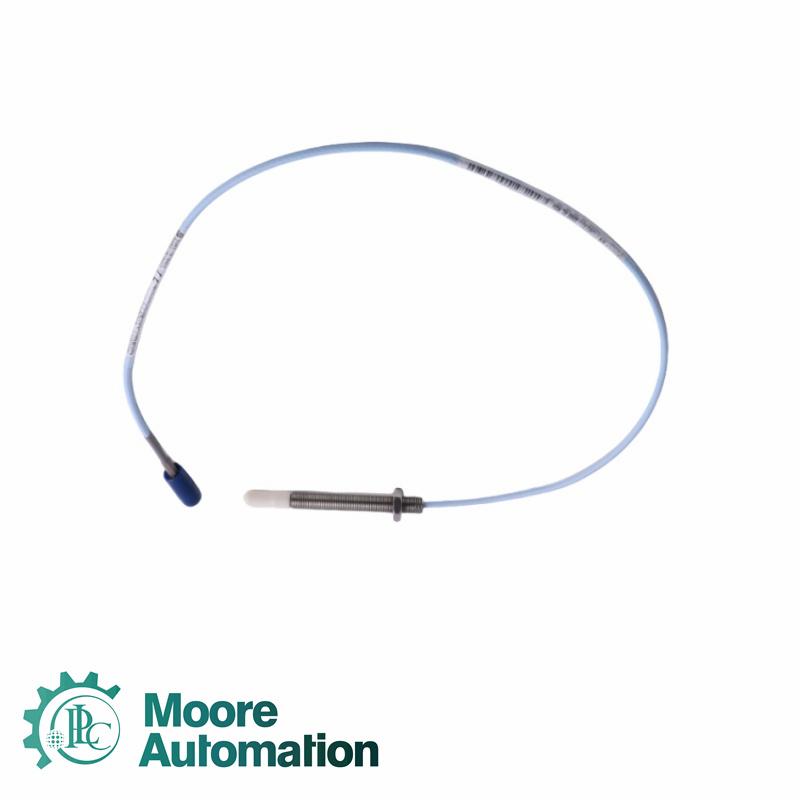

Here is the information about Bently Nevada 330903-03-11-05-02-05
Specifications
Unthreaded length option
30 mm
Overall case length option
120 mm
Cable length option
0.5 m (20 in)
Connector and cable option
Miniature coaxial ClickLoc connector, standard cable
Agency approval option
Multiple approvals
Probe case thread
M8×1 thread
Maximum thread engagement length
12 mm
Dimensions
1.3x1.1x65cm
Weight
0.04kg
Probe temperature range
-52°C to +177°C (-62°F to +351°F)
Storage temperature range
-52°C to +177°C (-62°F to +351°F)
Probe tip material
Polyphenylene sulfide (PPS)
Probe case material
AISI 304 stainless steel (SST)
Field wiring
0.2 to 1.5 mm² (16 to 24 AWG); 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules
Linear range
1.5 mm (60 mils)
Recommended gap setting
1.0 mm (40 mils)
Output resistance
50 Ω
Supply sensitivity
<2 mV change in output voltage per 1 V change in input voltage
Product Description
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
Application
Micro Motor Manufacturing Plants: Used for vibration monitoring of high-speed miniature spindles, where the M8 size fits perfectly into compact end-cap spaces.
Aircraft Engine Plants: Provide real-time rotor displacement feedback during auxiliary power unit (APU) testing, using wide-temperature capability to handle extreme thermal variations.
Fine Chemical Plants: Monitor mechanical seal conditions of small centrifugal pumps and mixers, with 304 stainless steel housing resisting acidic and alkaline vapor corrosion.
Food Packaging Plants: Installed on high-speed filling line rotating mechanisms, where PPS head material meets industrial-grade durability requirements.
Pharmaceutical Machinery Plants: Used to monitor shaft eccentricity in sterile centrifuges, with 3300 NSv systems optimized for small target applications.
Frequently Asked Questions
Q: What are the advantages of the 30mm unthreaded length of the 330903-03-11-05-02-05 in installation?
A: It allows deeper penetration into thick brackets or housings, avoiding thread limitations and preventing probe mispositioning.
Q: Why is a 1.0 mm gap recommended for 330903-03-11-05-02-05 systems?
A: Because it sits near the midpoint of the 1.5 mm linear range, providing optimal bidirectional vibration response.
Q: Will the PPS head of the 330903-03-11-05-02-05 deform at 177°C?
A: No. PPS material has high thermal stability and maintains structural strength at rated temperatures.
Q: Can the 0.5 m cable version of the 330903-03-11-05-02-05 be used with 5 m or 9 m preamplifiers?
A: Yes, but total cable length must match system specifications with proper extension for impedance compensation.
Q: What happens if the target is not standard 4140 steel for the 330903-03-11-05-02-05?
A: Output sensitivity shifts, and recalibration is required for materials like aluminum or stainless steel.
|
