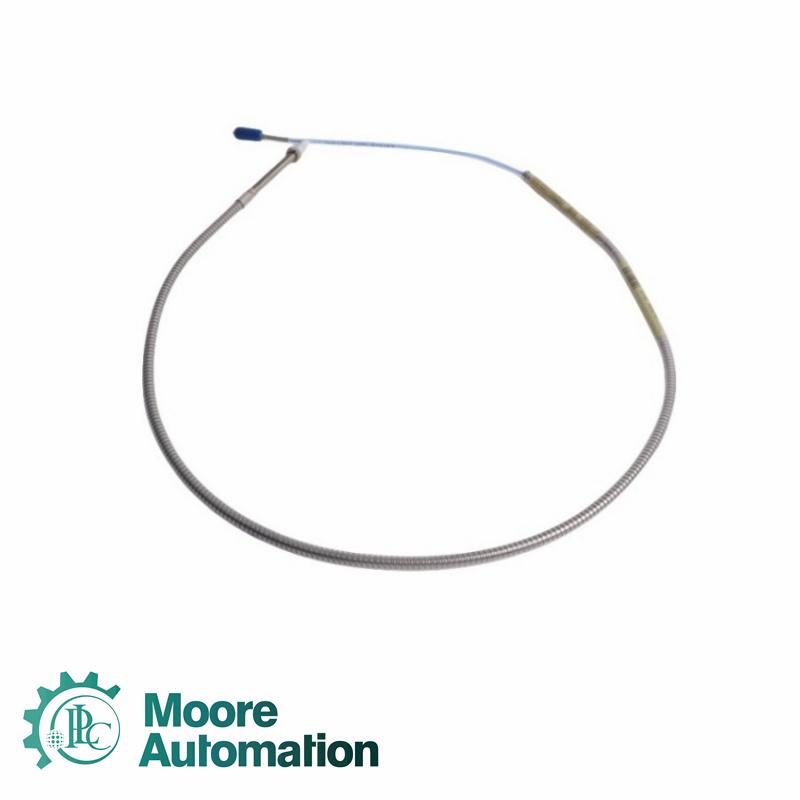

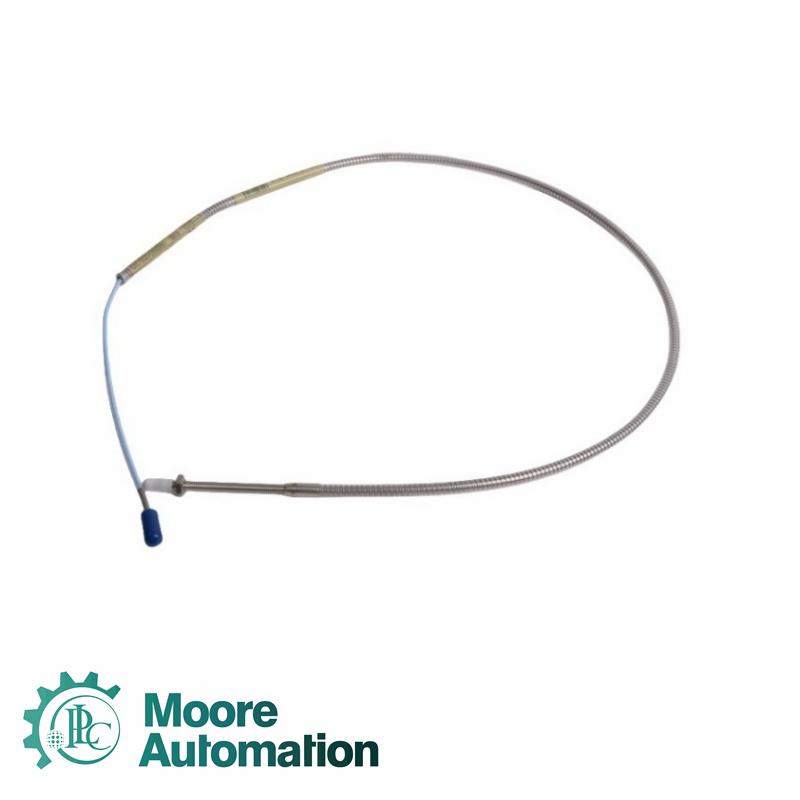

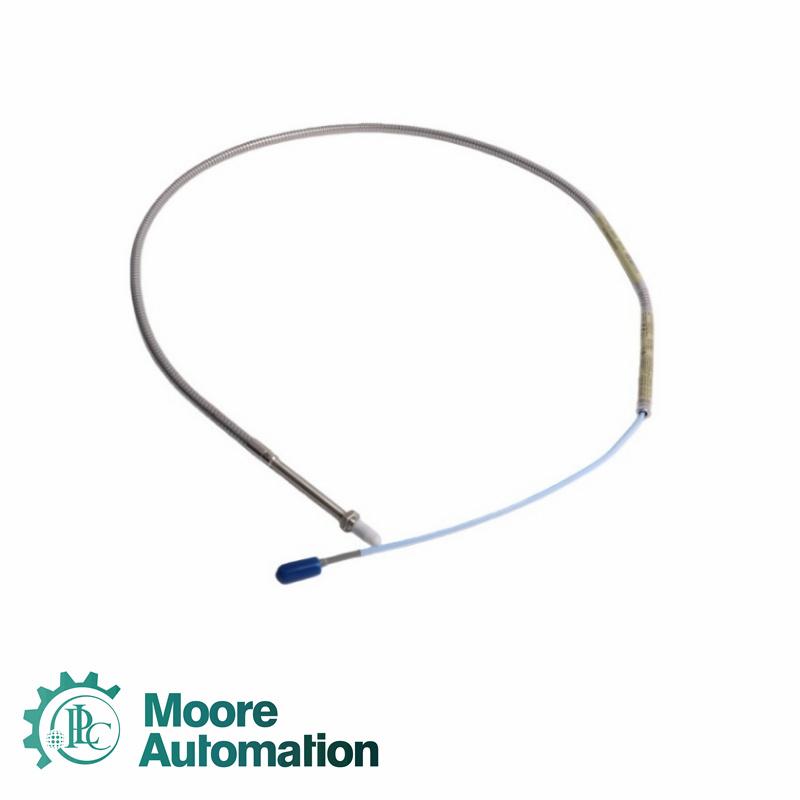

Bently Nevada 330902-00-25-05-01-05 3300 NSv Proximity Probe

Get detailed product info

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Product Introduction

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:a 3300 NSv probe,a 3300 NSv extension cable,a 3300 XL NSv Proximitor Sensor. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

Technical Data

Unthreaded Length Option: 0.0 in
Overall Case Length Option: 2.5 in
Cable Length Option: 0.5 meter (20 in)
Connector and Cable Option: Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option: Multiple Approvals
Probe Case Thread: 1/4-28 UNF thread
Maximum Length of Thread Engagement: 0.375 in
Probe Temperature Range: -52°C to +177°C (-62°F to +351°F)
Storage Temperature: -52°C to +177°C (-62°F to +351°F)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 304 stainless steel (SST)
Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG) [0.25 to 0.75 mm² (18 to 23 AWG) with ferrules]
Linear Range: 1.5 mm (60 mils)
Recommended Gap Setting: 1.0 mm (40 mils)
Output Resistance: 50 Ω
Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage

Frequently Asked Questions (FAQ)

Q: Does 330902-00-25-05-01-05 are new and original?
Yes, they are new and original.

Q: How long warranty?
A:One-year warranty.

Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.

Best Quality Assurance
1. We only provide the original new items, 100% make sure the best quality!
2.1 year warrant GUARANTEE OF QUALITY (After Our Delivery Date).

Shipping
1. We will ship the items within 3 working days after the payment is reached.
2. All the goods will be tested before shipment.
3. Packing in professional anti-static bag.
4. We can ship to you by DHL/UPS/EMS/Fedex... Pls contact us directly and we will ship as your requirement.
