Bently Nevada 330901-00-08-05-11-05 Sensor Proximity Probe Cable

Contact me

Yuki (Sales Manager)

Email: sales6@askplc.com

WhatsApp: +86 17359287459

Introduce

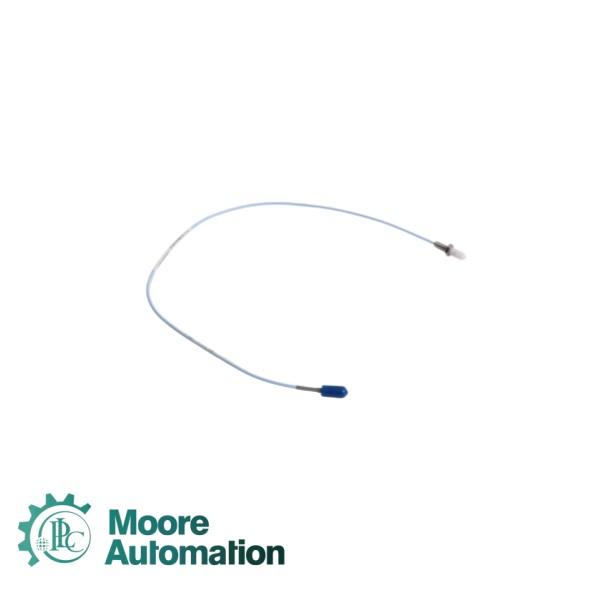

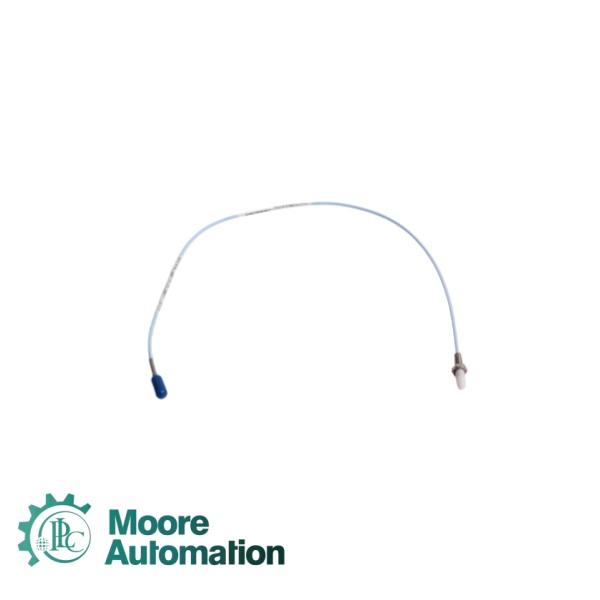

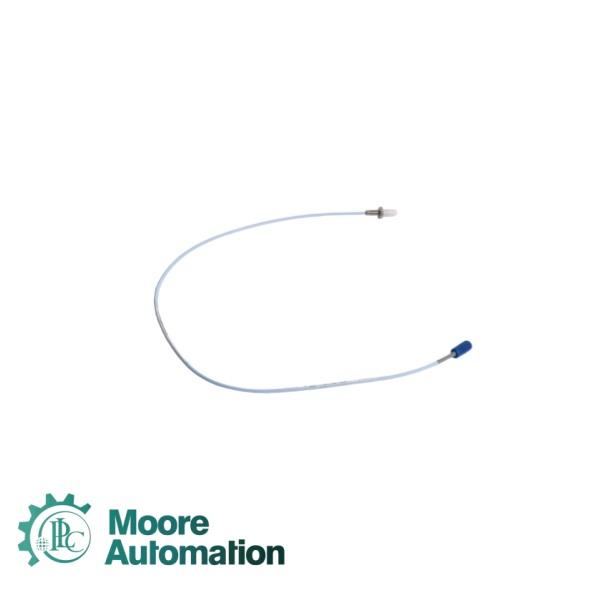

The 330901-00-08-05-11-05 is a Bently Nevada 3300 NSv Proximity Probe, a non-contact eddy-current sensor designed for precision vibration and displacement measurements in small and compact rotating machinery . The NSv series is specifically engineered for applications where standard-sized probes cannot fit due to space constraints, such as small-frame motors, pumps, compressors, gearboxes, and turbines . This probe features a 1/4-28 UNF thread and is supplied without armor . It is part of the Bently Nevada 3300 NSv Proximity Transducer System, which provides reliable non-contact measurement of shaft vibration and position for machinery protection and condition monitoring . The probe works in conjunction with a Proximitor® sensor and extension cable (sold separately) to deliver stable and accurate displacement signals, enabling predictive maintenance strategies and reducing unexpected downtime .

Detailed Information

Unthreaded Length: 00=0.0in

Overall Case Length: 08=0.8in

Total Length: 05=0.5 meter (20 in)

Connector and Cable-Type: 11=Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

Agency Approval: 05=Multiple Approvals

Nominal Measurement Range: 2.0 mm (80 mils)

Linear Range: 1.6 mm (63 mils)

Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)

Frequency Response: 0 to 10 kHz

Supply Voltage (Proximitor): -17.5 VDC to -26 VDC (typical)

Output Voltage (Prox Out): -2 VDC to -18 VDC (linear region)

Gap Voltage (Nominal): -10 VDC at 1.27 mm (50 mils) gap

Operating Temperature: -51℃ to +177℃ (-60℉ to +351℉)

Features

The 330901-00-08-05-11-05 NSv Proximity Probe offers the following key features:

(1) Compact NSv Design for Tight Spaces: The narrow side view (NSv) profile and small tip diameter (8mm) allow installation in machines with restricted clearances where standard 8mm probes cannot maintain linearity due to target curvature or space limitations . Ideal for small-diameter shafts under 51 mm (2 inches) .

(2) Non-Contact Eddy-Current Measurement: Provides accurate, non-contact measurement of shaft vibration and position without mechanical wear, ensuring long-term reliability and minimal maintenance requirements .

(3) Precision Linear Range: Provides a scale factor of 7.87 V/mm (200 mV/mil) over a linear range of 1.6 mm (63 mils), delivering high-fidelity displacement signals for accurate machinery diagnostics .

(4) Wide Frequency Response: 0 to 10 kHz frequency response captures both low-speed and high-frequency vibration events, enabling comprehensive machinery condition assessment .

(5) Rugged Construction for Harsh Environments: Built with premium-grade, corrosion-resistant materials to withstand temperature extremes, vibration, humidity (IP54 rated), and electromagnetic interference .

(6) Compatibility with 3300 NSv System: Fully compatible with the Bently Nevada 3300 NSv Proximity Transducer System, allowing seamless integration with existing monitoring infrastructure and upgrades from 3300 RAM systems .

FAQ

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
