Bently Nevada 330881-28-05-050-03-02 PROXPAC XL Proximity Transducer Assembly

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

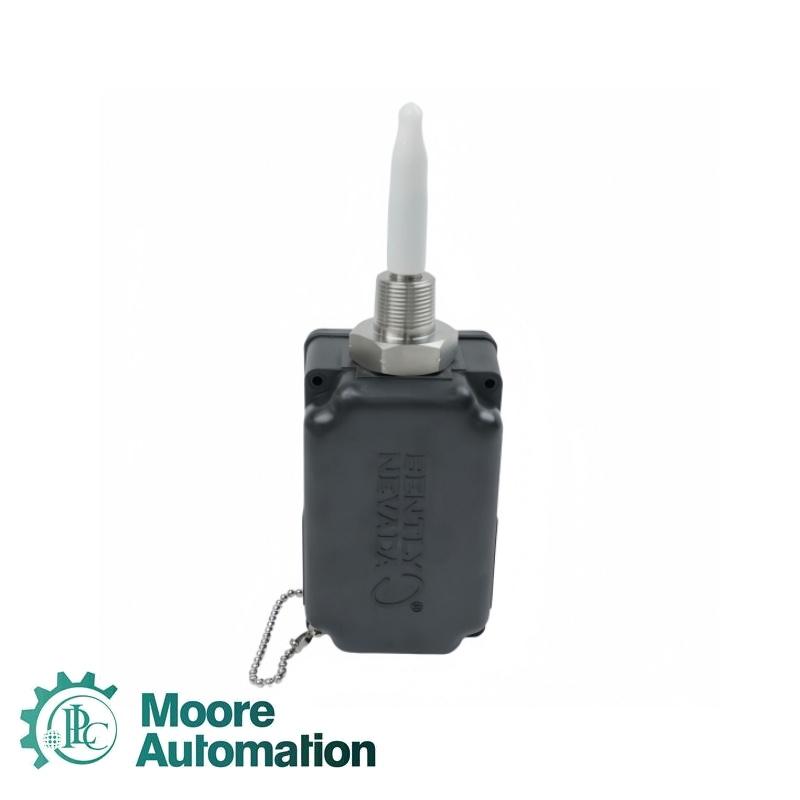

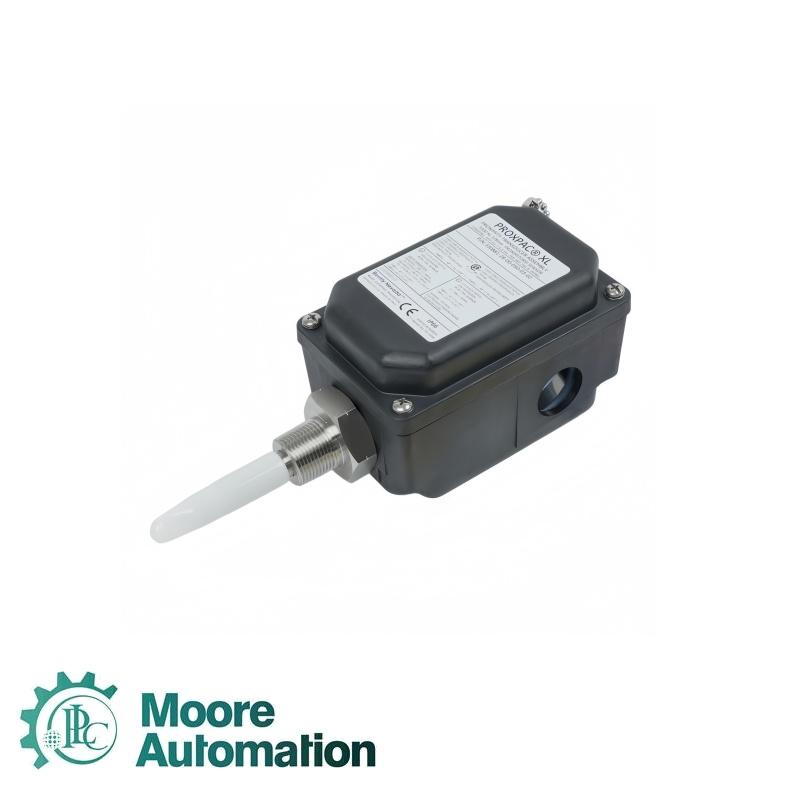

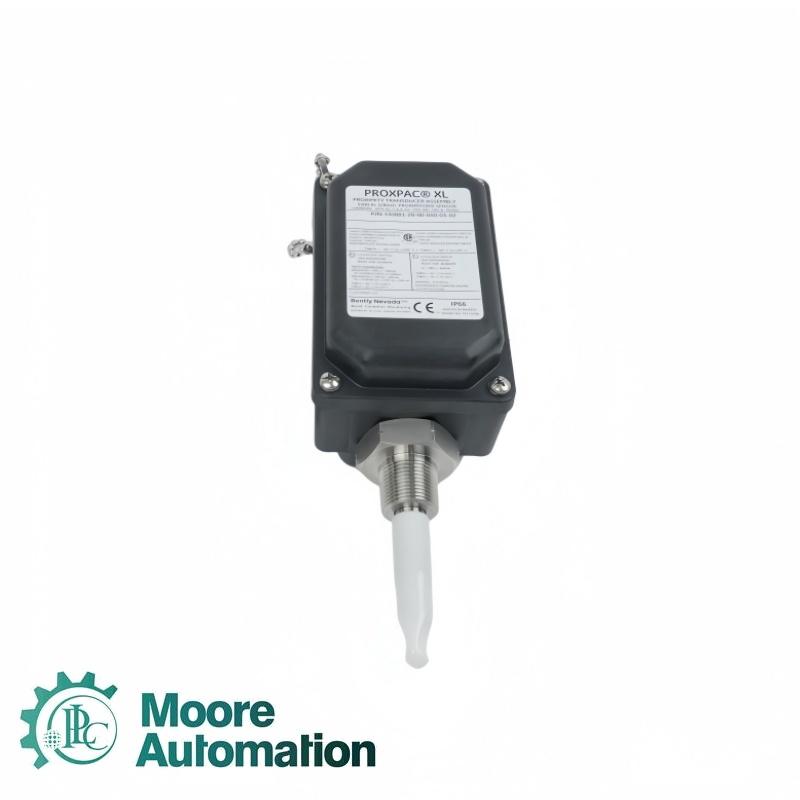

This PROXPAC XL configuration combines a 3300 XL 8 mm probe and Proximitor sensor in a self-contained housing. The suffix specifies multiple approvals, a 50 mm standoff adapter, 50 mm probe penetration, one M20 fitting with two plugs and a 3/4-14 NPT mounting thread.

ManufacturerBently Nevada

Ordering number330881-28-05-050-03-02

Product familyPROXPAC XL

Product typeProximity transducer assembly

Probe option3300 XL 8 mm with multiple approvals

Standoff adapter50 mm

Probe penetration50 mm

Fitting optionOne M20 fitting, two plugs

Mounting thread3/4-14 NPT

Housing materialPolyphenylene sulfide (PPS)

Environmental ratingType 4X and IP66

Extension cableNot required between probe and sensor

Application Industry

Severe-environment machinerySelf-contained housing protects the transducer electronics in exposed installations.

Bearing vibration monitoringMeasures shaft-relative motion using an integrated 3300 XL 8 mm probe loop.

Remote machine locationsDirect field wiring reduces external transducer components at the measurement point.

Maintenance retrofitsProvides externally adjustable probe access where the mounting dimensions match.

FAQ

What is integrated inside 330881-28-05-050-03-02?

The housing contains the proximity probe interface and its own Proximitor sensor, so a separate extension cable is not needed between them.

Which mounting thread is supplied with 330881-28-05-050-03-02?

The configured outer sleeve uses a three-quarter-inch, fourteen-thread-per-inch NPT connection.

Is 330881-28-05-050-03-02 suitable for outdoor or washdown areas?

The housing is rated Type 4X and IP66, but the complete installation and conduit entries must also preserve the required enclosure rating.

How much probe penetration is configured for 330881-28-05-050-03-02?

The ordered penetration dimension is fifty millimetres.

What should be checked before replacing 330881-28-05-050-03-02?

Confirm the probe option, standoff dimension, penetration length, fitting kit, thread and approvals against the installed assembly.
