Product Overview

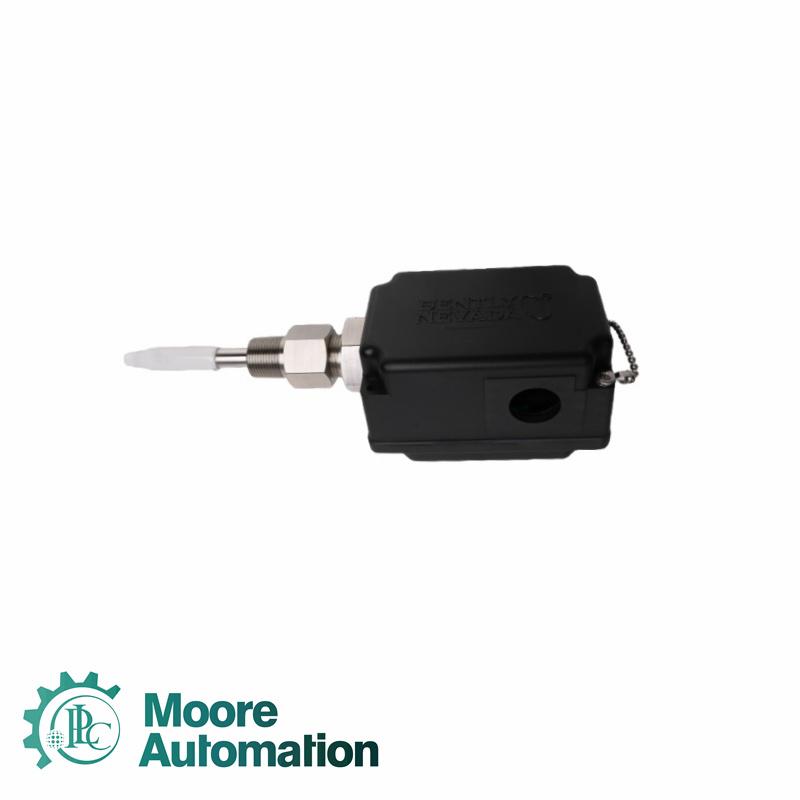

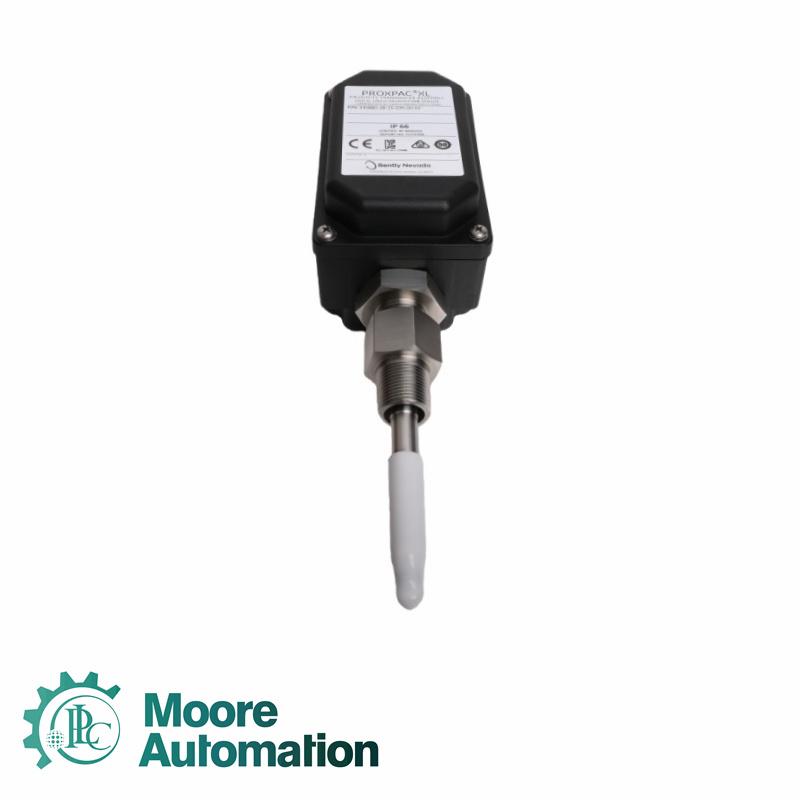

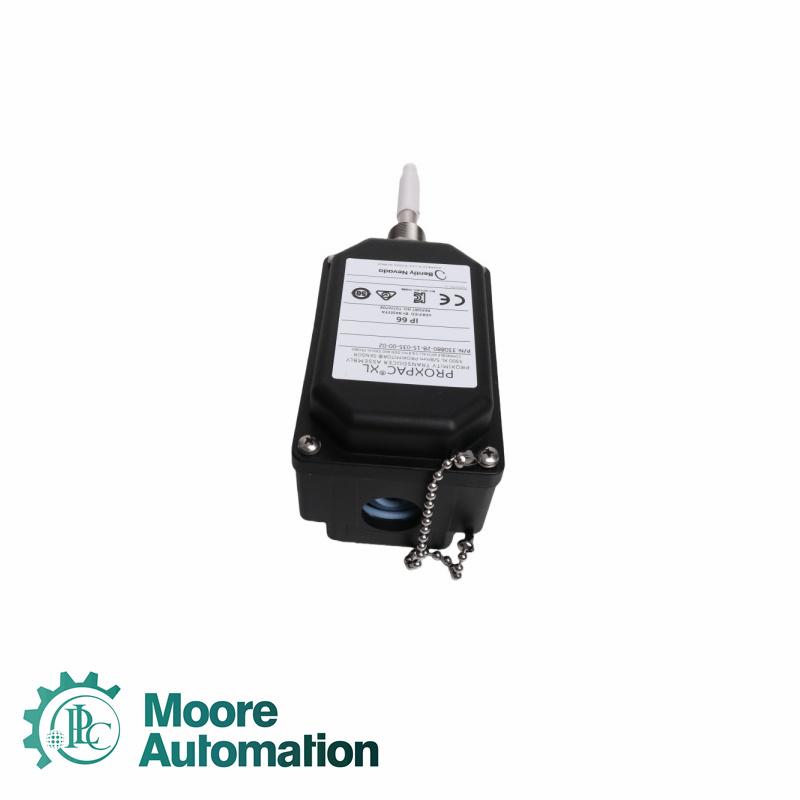

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.
Call John Yang For Assistance
✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685
Detailed Specifications
|
Parameter |
Value |
|
Probe and Approvals Option |
3300 XL 8 mm probe with multiple approvals |
|
Standoff Adapter Option (B Dimension) |
4.5 in |
|
Probe Penetration Option (C Dimension) |
2.0 in |
|
Fittings Option |
1 × 3/4-14 NPT fitting; 1 × 3/4-14 NPT to 1/2-14 NPT SST reducer; 2 × plugs |
|
Mounting Thread Option |
3/4-14 NPT (required with standoff adapter option) |
|
Dimensions |
36.5 x 9 x 9.3 cm |
|
Weight |
1.35 kg |
|
Supply Sensitivity |
< 2 mV change in output per volt change in input |
|
Output Resistance |
50 Ω |
|
Field Wiring |
0.2–1.5 mm² (16–24 AWG) |
|
Linear Range |
2 mm (80 mils) |
|
Recommended Gap Setting |
1.27 mm (50 mils) |
|
Shaft Diameter (Minimum) |
50.8 mm (2.0 in) |
|
Shaft Diameter (Recommended) |
76.2 mm (3.0 in) |
|
Housing Rating |
IP66 (BASEEFA report T07/0709) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Dimensions |
36.5 x 9 x 9.3 cm |
|
Weight |
1.35 kg |
|
Supply Sensitivity |
< 2 mV change in output per volt change in input |
Moore upholds the following values: We help keep global production running smoothly!
<<Global footprint>>
<<Integrity in business>>
<<Rapid response>>
<<High-quality products and highly competitive prices.>>
FAQ of 330880-28-45-020-03-02
Q: What are the probe specifications for the 330880-28-45-020-03-02?
A: This model uses a 3300 XL 8 mm probe with a 2 mm (80 mils) linear range.
Q: Are there shaft diameter requirements for the 330880-28-45-020-03-02?
A: The recommended shaft diameter is at least 76.2 mm (3.0 in), with a minimum of 50.8 mm (2.0 in).
Q: How do I set the mounting clearance for the 330880-28-45-020-03-02?
A: The recommended clearance is 1.27 mm (50 mils) for optimal performance.
Q: What is the protection rating of the 330880-28-45-020-03-02?
A: This system has an IP66 rating and operates from -52°C to +100°C.
Q: What are the mounting specifications for the 330880-28-45-020-03-02?
A: This model uses a 3/4-14 NPT thread with a 4.5-inch adapter and 2.0-inch penetration depth.
Application
Thermal power plants: Installed in turbine bearing housings, they monitor rotor axial movement and radial vibration in real time to prevent mechanical collisions.
Oil and gas plants: Deployed in high-speed centrifugal compressors, they provide high-precision key phase signals to aid in speed and phase analysis.
Large chemical plants: In the continuous operation monitoring of large motors and pumps, their explosion-proof and high-protection characteristics ensure stable data transmission.
Metallurgical and steel plants: Used in large fans and rolling equipment, maintaining sensor accuracy under harsh conditions of high temperature and frequent vibration.
Nuclear power plants: As part of a critical safety instrumented loop, they provide highly reliable displacement data that meets international certification standards.
