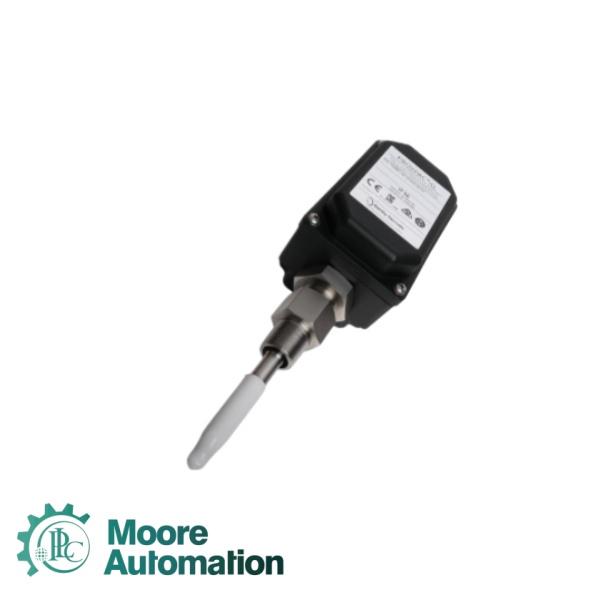

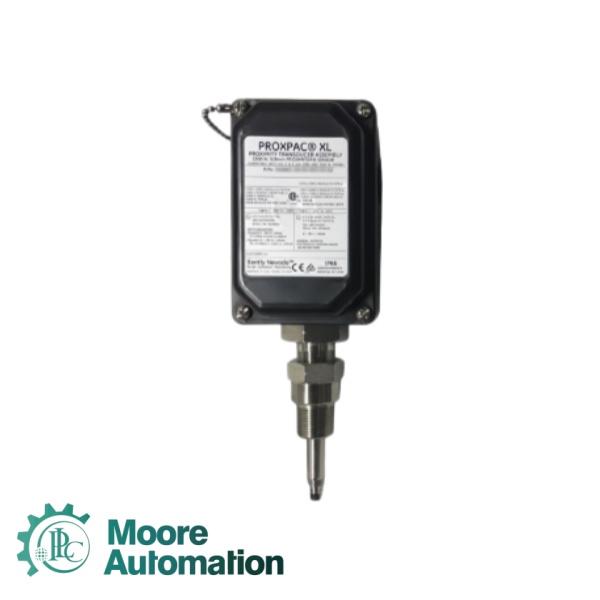

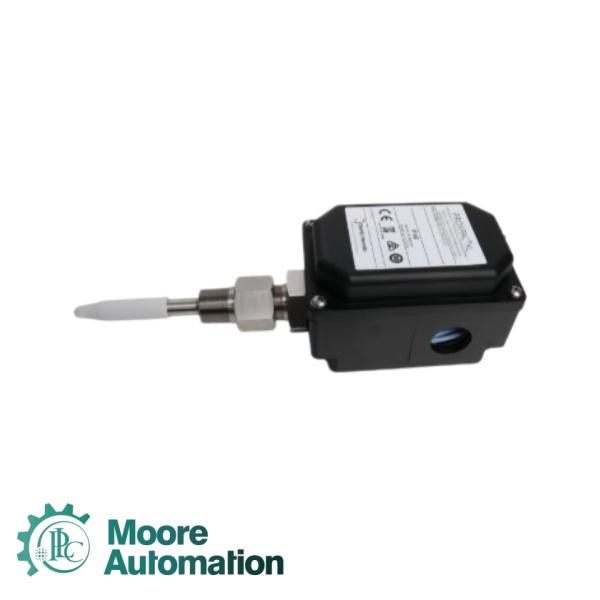

Bently Nevada 330880-28-15-044-01-02 PROXPAC XL Proximity Transducer Assembly

Connect With Us

Sales Manager: Yuki Huang

Email: sales6@askplc.com

Whatsapp: +86 17359287459

Product Snapshot

The Bently Nevada 330880-28-15-044-01-02 is engineered to provide advanced machinery case and shaft position vibration monitoring on critical heavy rotating industrial equipment like steam turbines, gearboxes. Constructed from a highly specialized, glass-reinforced polyphenylene sulfide (PPS) thermoplastic resin that incorporates micro-conductive fibers, its rugged outer shell is designed to prevent damaging electrostatic charge build-ups.

✅ New & Original                   ✅Available Now                   ✅Quick Delivery

Product Details

Probe and Approvals(28): 3300 XL 8 mm probe with Multiple Approvals

Standoff Adapter(15): 1.5 in (38 mm)

Probe Penetration(044): 4.4in

Fittings(01): One 3/4-14 NPT fitting, two plugs

Mounting Thread(02): 3/4-14 NPT

Power Input Voltage Range: -17.5 V DC to -26 V DC (without barriers); -23 V DC to -26 V DC (with barriers)

Maximum Current Consumption: 12 mA maximum current draw

Output Resistance Specification: 50Ω nominal internal output buffer resistance

Linear Measurement Range: 2.0 mm (80 mils) total sensor dynamic range span

Scale Factor Calibration: 7.87 V/mm (200 mV/mil) nominal response factor
