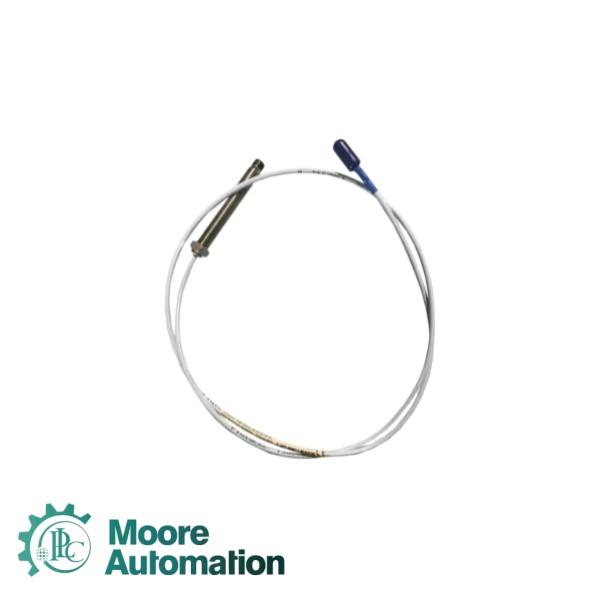

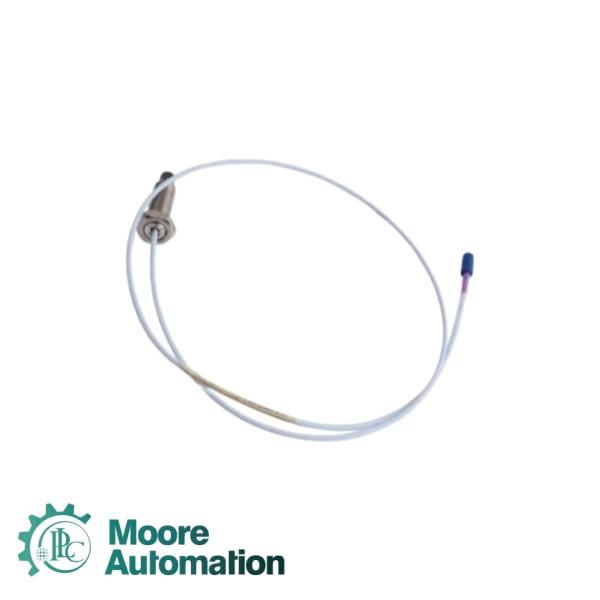

Bently Nevada 330702-00-25-10-02-00 3300 XL 11 mm Proximity Transducer System

/Description/

The Bently Nevada 330702-00-25-10-02-00 is a high-precision, non-contact eddy current proximity probe assembly engineered to measure fluid-film bearing axial (thrust) position, ramp differential expansion, and rod drop displacements on heavy rotating machinery. Built with an extended 11 mm tip diameter, it provides a significantly longer linear measuring range compared to standard 8 mm probes, making it ideal for systems with wide mechanical travel thresholds. The probe body features a robust stainless steel shell, while its 1.0-meter triaxial lead line is fully encased in a flexible stainless steel armored jacket to protect the raw electronic signals from harsh industrial lubricants, abrasive wear, and crushing forces.

/Key Information/

Unthreaded Length: 00-0.0in

Overall Case Length: 25-2.5in

Total Length: 10-1.0 meter (3.3 feet)

Connector and Cable-Type: 02-Miniature coaxial ClickLoc connector, standard cable

Agency Approval: 00-Not required

System Supply Voltage: -17.5V DC to -26V DC nominal input logic

Operating Load Current Draw: 12 mA maximum consumption

Standard Gap Voltage Reference: Typically calibrated at a 2.5 mm (100 mils) gap

Operating Temperature Range: -51°C to +177°C (-60°F to +350°F)

/Service/

1.All items are NEW.

2.Any inquiries will be replied within 1 hour.

3.We check them more than three times before we send out the goods!

/Shipping/

1.Item within 1-2 days after the payment is cleared.

2.Item ship By E-packing/FedEx/EMS/TNT/DHL/UPS.

3.All the packing ship with tracking number.

/Faq/

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
