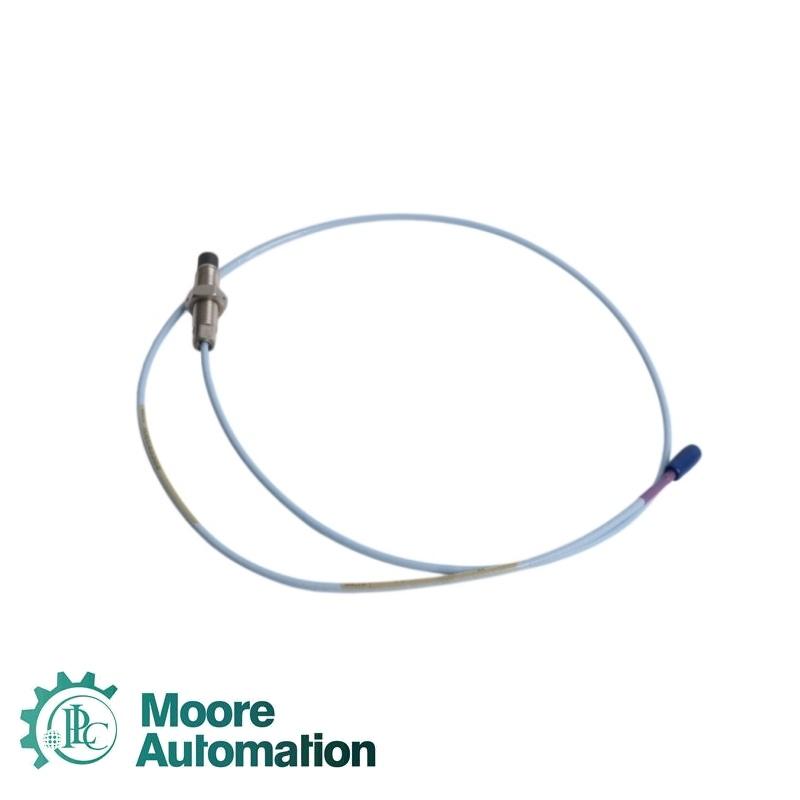

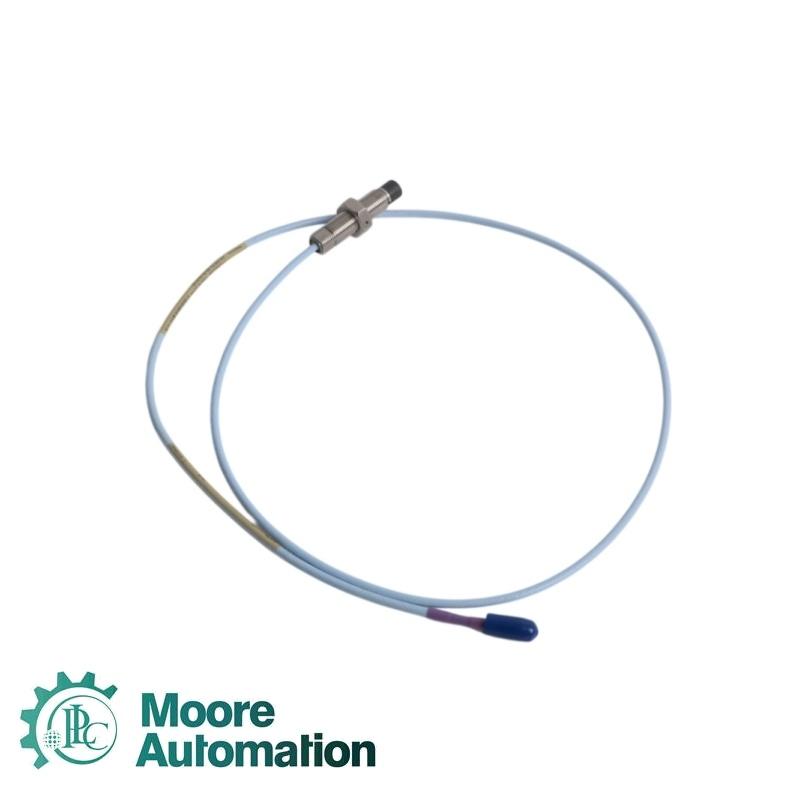

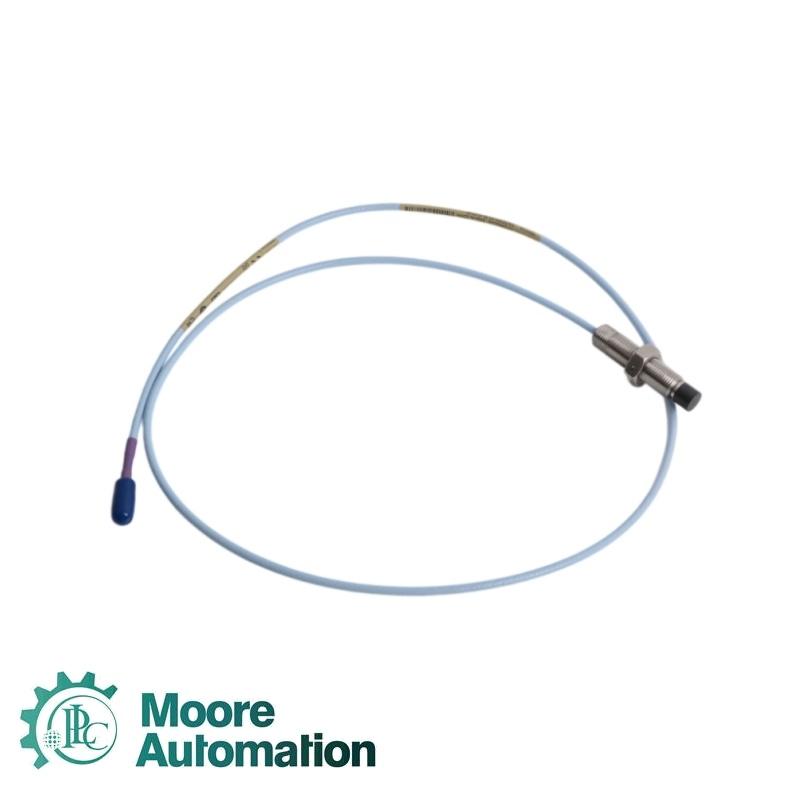

Bently Nevada 330701-00-25-90-02-00 3300 XL 11 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year

Product Detail

Specifications

Bently Nevada 330701-00-25-90-02-00 3300 XL 11 mm Proximity Probe is Bently Nevada 330701-00-25-90-02-00 is a 3300 XL 11 mm proximity probe with a 1/2-20 UNF threaded case and no cable armor. The selected configuration has 0.0 in unthreaded length, a 2.5 in case, a 9.0 m total lead, standard cable, a ClickLoc connector without protector and no agency-approval option.

Product type

3300 XL 11 mm proximity probe

Probe thread

1/2-20 UNF

Cable armor

Not included

Probe tip diameter

11 mm

Unthreaded length

0.0 in

Overall case length

2.5 in

Total length

9.0 m (29.5 ft)

Connector

Miniature coaxial ClickLoc

Connector protector

Not included

Cable type

75 Ω triaxial FEP-insulated cable

Agency approval option

Not required

Probe tip material

Polyphenylene sulfide (PPS)

Probe case material

AISI 304 stainless steel

Minimum cable bend radius

25.4 mm (1.0 in)

Linear range

4.0 mm (160 mils)

Recommended gap

2.5 mm (100 mils)

Scale factor

3.94 V/mm (100 mV/mil) ±10%

Frequency response

0 to 8 kHz, +0/-3 dB typical

Application Industry

Axial thrust position

Uses the extended linear range for shaft axial-position measurements.

Ramp differential expansion

Measures turbine differential expansion where a longer measurement span is required.

Reciprocating compressor rod position

Monitors rod position or rod drop without physical contact.

Tachometer and phase reference

Supports zero-speed, tachometer and Keyphasor signal applications.

FAQ

What probe thread is supplied on Bently Nevada 330701-00-25-90-02-00?

The probe uses a 1/2-20 UNF threaded case and is supplied without cable armor.

What total lead length is configured for Bently Nevada 330701-00-25-90-02-00?

The probe lead is 9.0 m long and must be matched to the corresponding system-length components.

What linear range is available from Bently Nevada 330701-00-25-90-02-00?

The transducer system provides a 4.0 mm linear range when installed and gapped under the documented conditions.

Where should Bently Nevada 330701-00-25-90-02-00 be gapped?

Set the probe at approximately 2.5 mm from the target and verify the electrical output during commissioning.

What upgrade check is required before using Bently Nevada 330701-00-25-90-02-00?

When replacing an older 11 mm or 14 mm system, replace every transducer component and confirm the monitor configuration supports the complete 11 mm system.
