Item Details
|
Mounting Thread Adaptor |
01: 1/2 - 20 UNF |
|
Agency Approval |
00: Not required |
|
Sensitivity |
3.94 mV/mm/s (100mV/in/s) ±5%. |
|
Frequency Response |
4.5 Hz to 5 kHz (270 cpm to 300 kcpm) ±3.0 dB. 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) ±0.9 dB |
|
Temperature Sensitivity |
-14% to +7.5% typical over the operating temperature range. |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Amplitude Linearity |
±2% to 152 mm/s (6 in/s) peak. |
|
Mounted Resonant Frequency |
Greater than 12 kHz. |
|
Output Bias Voltage |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
|
Dynamic Output Impedance |
Less than 2400 Ω |
|
Broadband Noise Floor (4.5Hz to 5 kHz) |
0.004 mm/s (160 μin/s) rms, nominal |
|
Grounding |
Case isolated |
|
Maximum Cable Length |
305 m (1,000 ft) of cable, part number 02173006, with no degradation of signal. |
|
Operating Temperature Range |
-55°C to 121°C (-67°F to 250°F) |
|
Shock Survivability |
5,000 g peak, maximum |
|
Relative Humidity |
To 100% non-submerged; case is hermeticallysealed. |
|
Base Strain Sensitivity |
0.005 in/s/mstrain. |
|
Magnetic Field Susceptibility |
<51 min/s/gauss (50 gauss,50-60Hz). |
Features

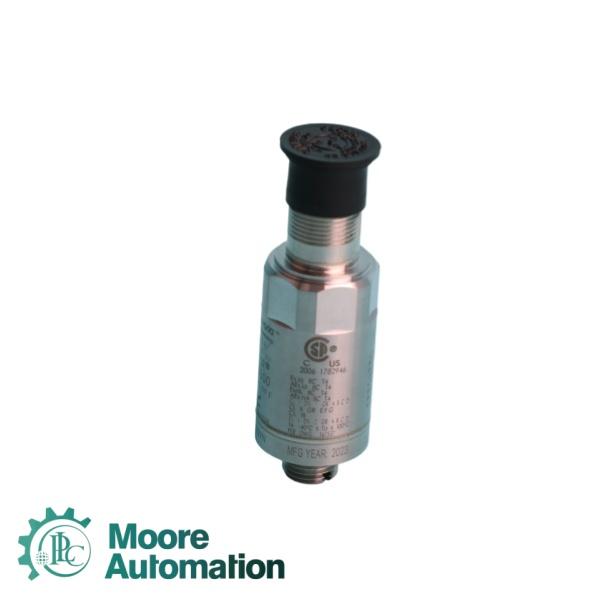

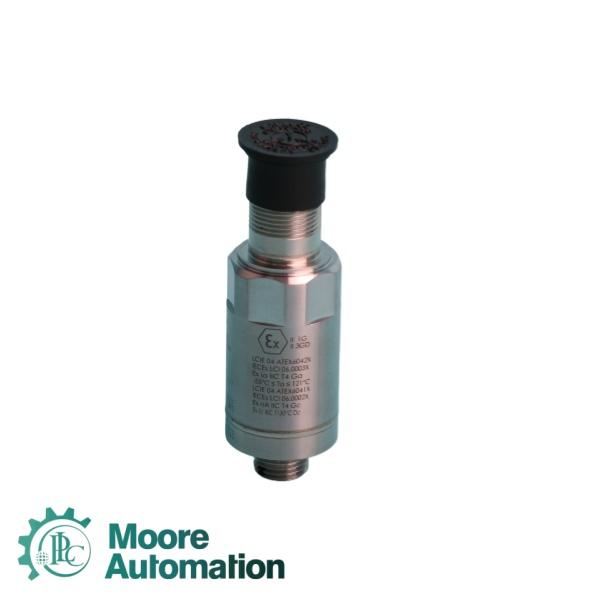

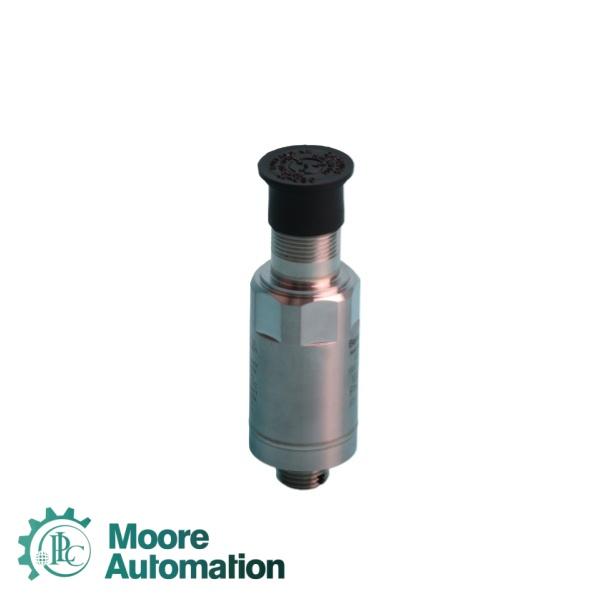

Bently Nevada™ Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.
· Primary Function: Measures absolute vibration velocity on machinery casings, bearing housings, or structures .
· Output Type: Directly outputs absolute velocity vibration data, eliminating the need for external integrators .
· Sensitivity: 100 mV/in/s (3.94 mV/mm/s) .
· Wide Bandwidth: 4.5 Hz to 5 kHz (±3 dB) for comprehensive vibration monitoring across low to medium frequency ranges.
· Operating Temperature: -55°C to +121°C (-67°F to +250°F) .
· Housing Material: 316L stainless steel for maximum corrosion resistance in harsh industrial environments .
· Sealing: IP68 hermetically sealed construction for protection against dust and moisture ingress .
· Connector: 2-pin Mil-C-5015 hermetically-sealed, 316L stainless steel shell .
· Mounting Thread: 1/2 - 20 UNF (with mounting adapter option, suffix 01) . Alternative: M8 x 1.25 .
· Case Material: Stainless steel with electrical isolation design .
· Output Impedance: ≤ 500 Ω at 100 Hz .
· Polarity: Pin A becomes positive relative to Pin B when sensor case moves toward connector .
Q & A
|
Q: What is Bently Nevada known for? A: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment. |
|
Q: What industries does Bently Nevada serve? A: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries. |
|
Q: What types of measurements do Bently Nevada products provide? A: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring. |
|
Q: Are Bently Nevada products compliant with international standards? A: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards. |
|
Q: What is the 3500 monitoring system? A: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown. |
