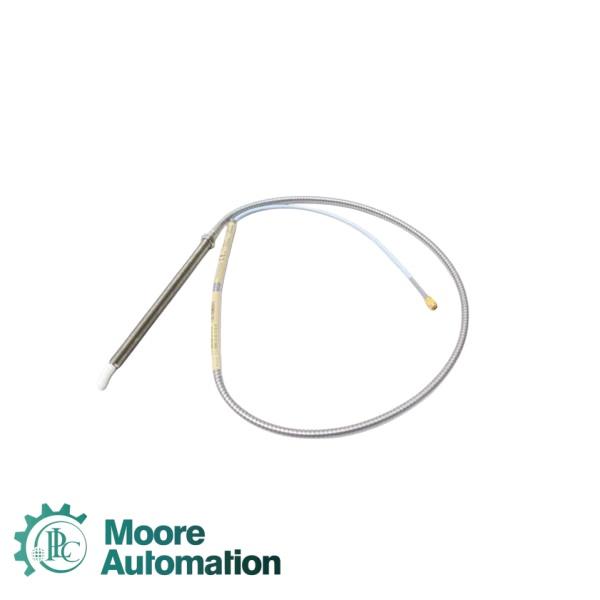

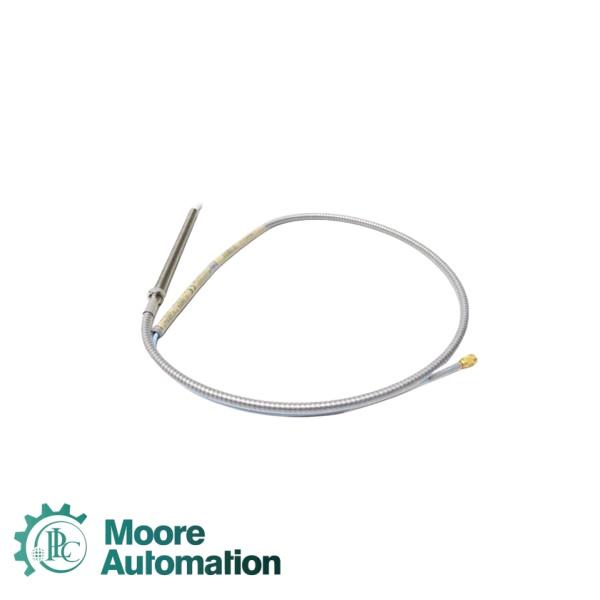

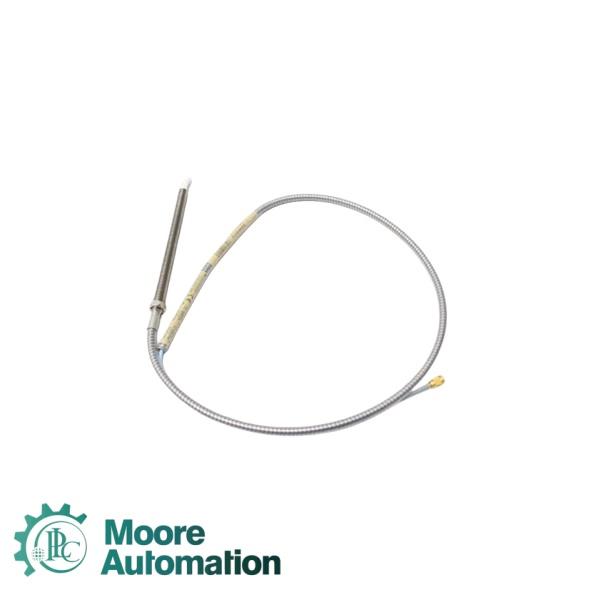

Bently Nevada 330192-00-68-05-05 3300 XL 8 mm Proximity Transducer System

/Description/

The Bently Nevada 330192-00-68-05-05 is a high-precision, non-contact eddy current proximity probe assembly engineered to measure fluid-film bearing vibrations, axial shaft positioning, and keyphasor speed thresholds on high-temperature critical rotating machinery. Operating as part of the 3300 XL 8 mm platform, it features a polyphenylene sulfide (PPS) tip and a specialized internal configuration optimized to withstand extreme continuous thermal exposures without signal drift or material breakdown. The sensor body is fully threaded for deep-reach case installations, and its integrated short triaxial lead line is fully encased in a flexible stainless steel armored jacket to protect the raw electronic signals from harsh industrial lubricants, abrasive wear, and severe crushing forces.

/Key Information/

Unthreaded Length: 00-0.0in

Overall Case Length: 68-6.8in

Total Length: 05-0.5 meter (1.6 feet)

Agency Approval: 05-CSA, ATEX, IECEx  Approvals

System Supply Voltage: -17.5V DC to -26V DC nominal input

Operating Current Draw: 2 mA to 12 mA maximum consumption

Sensitivity: 7.87 V/mm (200 mV/mil) on AISI 4140 steel

Operating Temperature Range: -51°C to +260°C (-60°F to +500°F)

/Service/

1.All items are NEW.

2.Any inquiries will be replied within 1 hour.

3.We check them more than three times before we send out the goods!

/Shipping/

1.Item within 1-2 days after the payment is cleared.

2.Item ship By E-packing/FedEx/EMS/TNT/DHL/UPS.

3.All the packing ship with tracking number.

/Faq/

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
