 Bently Nevada 330180-X1-05 MOD: 145193-01 3300 XL Proximitor Sensor
330180-X1-05 MOD 145193-01 330180-X1-05 MOD 145193-01 330180-X1-05 MOD 145193-01

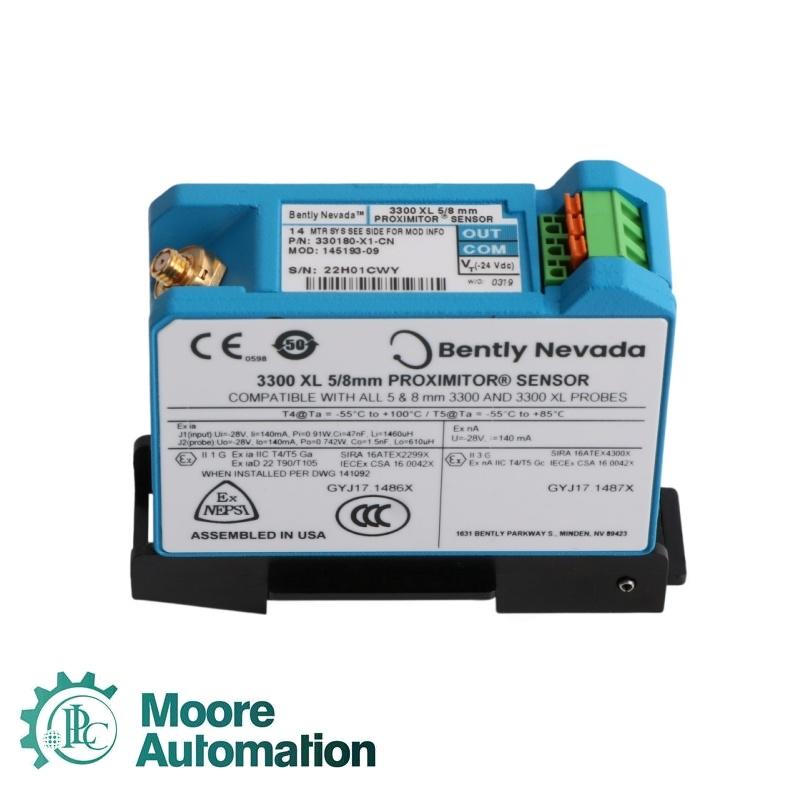

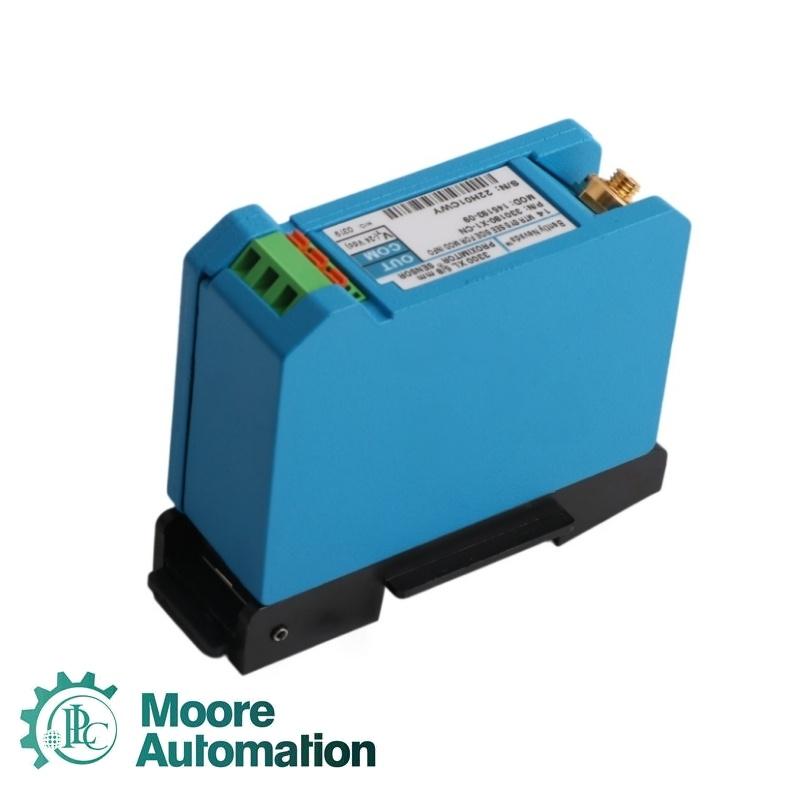

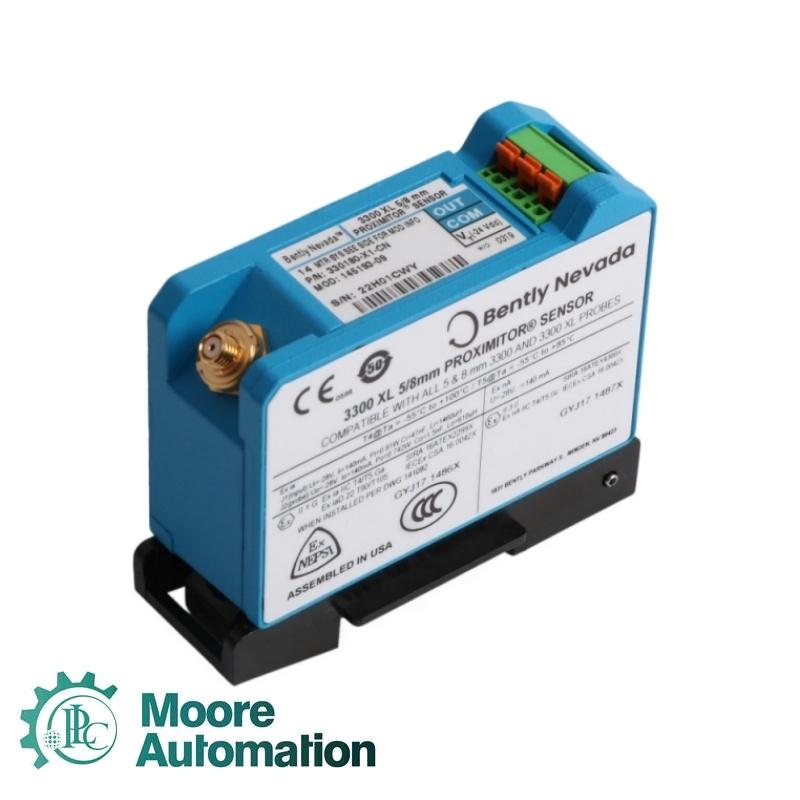

Bently Nevada 330180-X1-05 MOD: 145193-01 3300 XL Proximitor Sensor

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330180-X1-05 MOD: 145193-01 is a Proximitor sensor configuration for the 3300 XL 8 mm Proximity Transducer System. The public ordering table identifies 330180 as the Proximitor sensor family, uses mounting-position digit 1 for DIN-rail hardware, and defines approval option 05 for CSA, ATEX and IECEx approvals. The X placeholder and modification number must be matched to the installed label before replacement.
Product typeProximitor sensor
Transducer system3300 XL 8 mm
Base ordering code330180
Configured code330180-X1-05
Modification number145193-01
Mounting codeDIN-rail hardware
Approval optionCSA, ATEX and IECEx
Sensor supply-17.5 to -26 V DC
Maximum current12 mA
Output resistance50 Ω
Linear range2 mm (80 mil)
Nominal scale factor7.87 V/mm (200 mV/mil)
Operating temperature-52 to +100 °C
Factory calibration targetAISI 4140 steel
Application Industry
01
Fluid-film bearing machinesProvides non-contact shaft vibration and position signals in rotating machinery monitoring loops.
02
Axial-position monitoringSupports thrust-position measurement when paired with the specified probe and extension cable.
03
Keyphasor and speed referenceSupplies a conditioned proximity signal for approved rotational-reference applications.
04
Machinery protection systemsIntegrates with compatible monitoring channels using the matched total-length transducer system.
FAQ
How should 330180-X1-05 MOD: 145193-01 be matched to an existing probe loop?
Match the transducer family, probe type, extension cable, total electrical length and installed sensor label as one complete loop.
What mounting arrangement does 330180-X1-05 MOD: 145193-01 use?
The mounting-position digit identifies DIN-rail hardware in the official ordering table.
What power supply is required for 330180-X1-05 MOD: 145193-01?
Use a regulated negative supply within -17.5 to -26 V DC and observe the 12 mA maximum current requirement.
Which approvals are associated with 330180-X1-05 MOD: 145193-01?
Approval option 05 covers CSA, ATEX and IECEx markings; the actual unit label and site requirements must still be checked.
What must be checked before replacing 330180-X1-05 MOD: 145193-01?
Confirm the full X value, modification label, mounting hardware, cable length and target material before installation.
