--About Moore--
As a leading supplier of new and surplus industrial automation and control equipment, Moore Automation's growth over the past two decades is a testament to the unwavering dedication and tireless efforts of its outstanding team.
--Detailed parameters--
|
Total Length and Mounting Option |
1.0 meter (3.3 feet) system length, no mounting hardware |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
Proximitor Sensor Input |
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable |
|
Power |
-17.5 Vdc to -26 Vdc |
|
Proximitor Sensor Material |
A308 aluminum |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Dimension |
8.6x3.5x7cm |
|
Weight |
0.22kg |
|
Output Resistance |
50 Ω |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Frequency Response |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size |
15.2 mm (0.6 in) diameter (flat target) |
|
Output Voltage in Mil pp/Gauss(9 meter Proximitor Sensor) |
0.0247 (Gap 10) |
|
Output Voltage in Mil pp/Gauss(9 meter Proximitor Sensor) |
0.0323 (Gap 50) |
|
Output Voltage in Mil pp/Gauss(9 meter Proximitor Sensor) |
0.0348 (Gap 90) |
--Find John Yang for discounts--
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
--Key description--

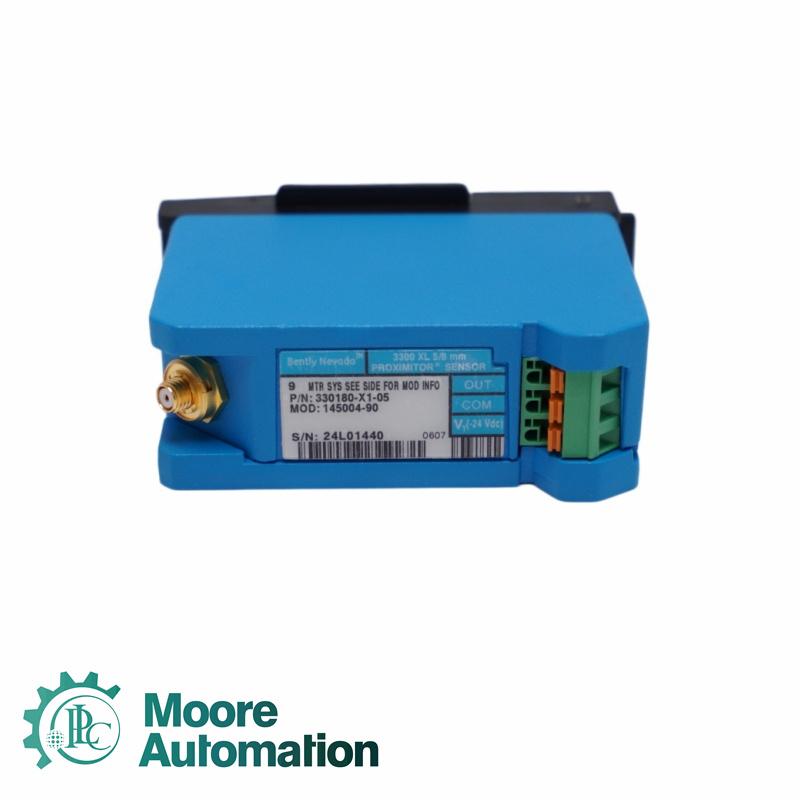

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
--Application--
--5 reasons why you should choose Moore--
⭐Extensive & Real Inventory
⭐Save up 20%-60% off
⭐Fully Tested and Guaranteed
⭐Flexible Payment & Shipment
⭐Unparalleled Experience & Service
--FAQ--
Q: What are the total length and mounting options of 330180-X1-05 MOD: 143416-02?
A: Its total length and mounting options are 1.0 meter (3.3 feet) system length, no mounting hardware.
Q: What is the power supply range of 330180-X1-05 MOD: 143416-02?
A: Its power supply range is -17.5 Vdc to -26 Vdc.
Q: What is the frequency response of 330180-X1-05 MOD: 143416-02?
A: Its frequency response is 0 to 10 kHz (+0, -3 dB) with field wiring lengths up to 305 meters (1000 feet).
Q: What is the minimum target size of 330180-X1-05 MOD: 143416-02?
A: Its minimum target size is a flat target with a diameter of 15.2 mm (0.6 inches).
Q: What is the output voltage of 330180-X1-05 MOD: 143416-02 at a gap of 50?
A: Its output voltage is 0.0323 Mil pp/Gauss.
