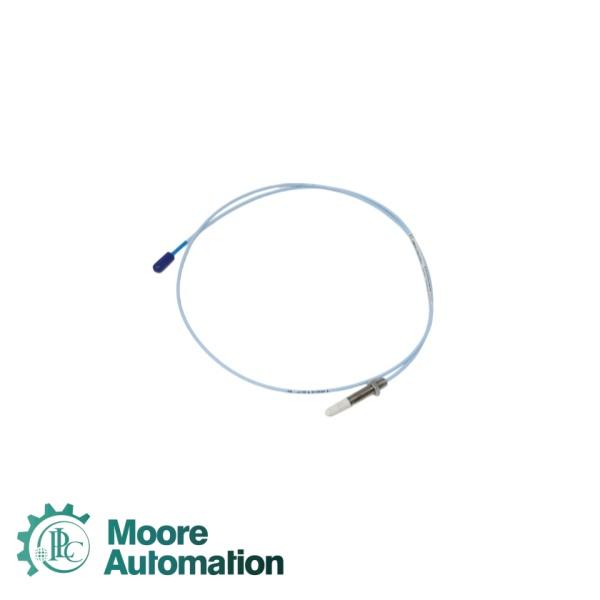

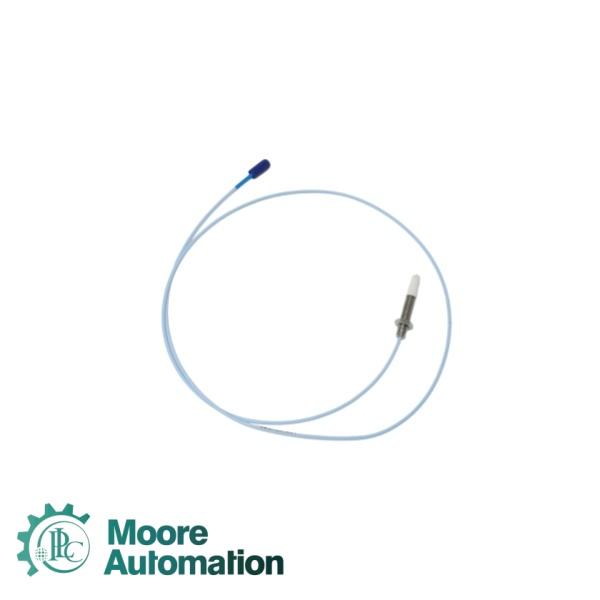

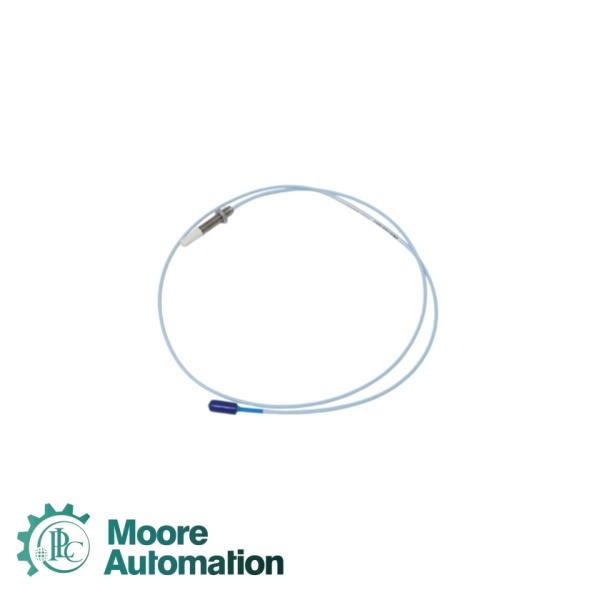

Bently Nevada 330173-00-04-20-12-05 3300 5 mm Transducer System

The Bently Nevada 330173-00-04-20-12-05 is a high-precision, non-contact eddy-current proximity probe engineered. It forms a complete measurement loop when connected to a 3300 XL extension cable and a 3300 XL Proximitor Sensor. The probe calculates the exact physical gap between its tip and a rotating conductive metal surface, translating mechanical distance variations into a proportional electrical voltage output. It is primarily deployed in space-constrained industrial machinery to track both static parameters and dynamic changes across fluid-film bearing systems, critical pumps, and gas turbines.

Unthreaded Length(00): 0.0mm

Overall Case Length(04): 40mm

Total Length(20): 2.0 metres (6.6 feet)

Connector(12): Miniature coaxial ClickLoc connector, FluidLoc cable

Agency Approval(05): Multiple Approvals

System Input Power (Proximitor): -17.5 Vdc to -26 Vdc

Scale Factor / Sensitivity: 7.87 V/mm (200 mV/mil)

Probe Tip Operating Temperature: -35 °C to +177 °C

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
