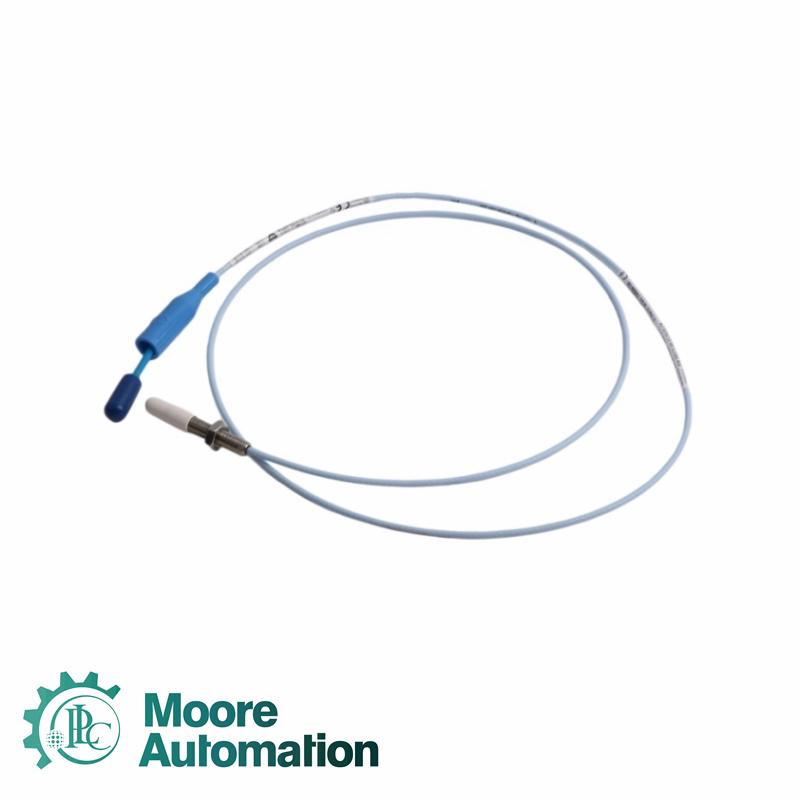

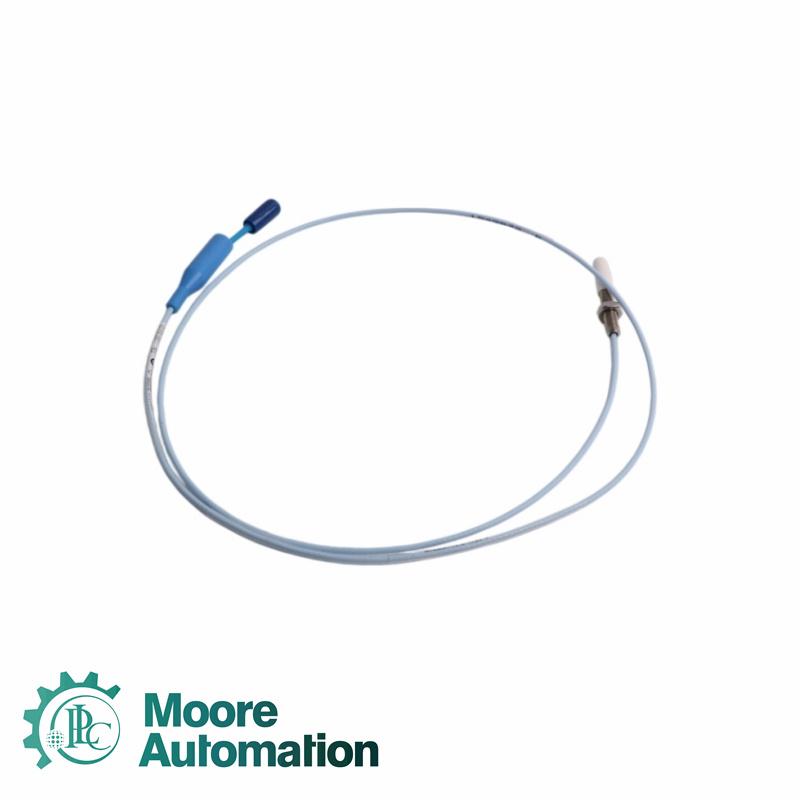

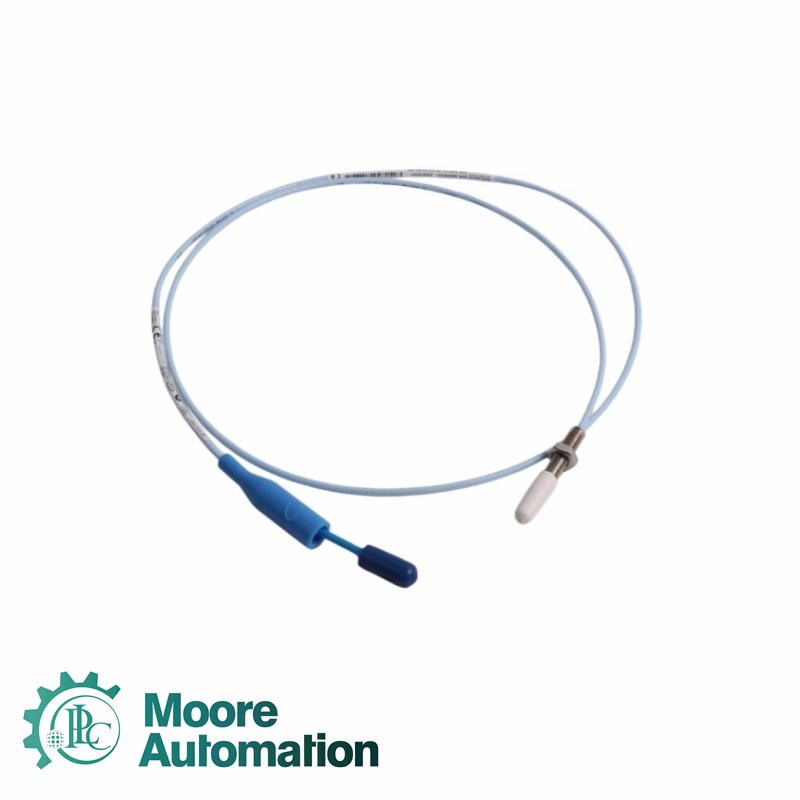

The 3300 5 mm Proximity Transducer System consists of: a 3300 5 mm probe; a 3300 XL extension cable (ref 141194-01); a 3300 XL Proximitor Sensor(ref 141194-01). When combined with a 3300 XL Proximitor Sensor and XL extension cable, the system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. The system can measure both static (position) and dynamic (vibration) data.
|
Quick details |
|
|
Brand name: |
Bently Nevada |
|
Model: |
330171-00-14-10-02-05 |
|
Warranty period: |
1 year |
|
Condition: |
100% original brand |
|
Transportation period: |
DHL FEDEX EMS UPS TNT |
Welcome to Inquiry John Yang for more information
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
Key Product Specifications
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
1.4 in |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Multiple Approvals |
|
Probe Case Thread |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement |
Maximum Rated 7.3 N•m (65 in•lb); Recommended 5.1 N•m (45 in•lb) |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance |
50 Ω |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range |
2 mm (80 mils) |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
Application
Our service for you
Q: How about the warranty ?
A: Moore provide 12 months warranty for all the goods from us.
Q: Other supplier have a better price than yours.
A: "To create more benefit fir clients"is our belief, if you have a better price , please let we know , we will try best to meet your price and support you.
Q: We have not cooperation before , how we can believe you ?
A: For the in stock products, we can take pictures and videos before you process payment.
Q: What about shipment ?
A: We have DHL/FEDEX/UPS/CHIRLINE/Aramex,you can use your own freight forwarder for transportation.
Frequently Asked Questions (FAQ)
Q: What is the overall case length of 330171-00-14-10-02-05?
A: Its overall case length is 1.4 inches.
Q: What are the agency approval options of 330171-00-14-10-02-05?
A: Its agency approval options are Multiple Approvals.
Q: What is the probe case thread of 330171-00-14-10-02-05?
A: Its probe case thread is 1/4-28 UNF thread.
Q: What is the unthreaded length of 330171-00-14-10-02-05?
A: Its unthreaded length is 0.0 inches.
Q: What is the extension cable capacitance of 330171-00-14-10-02-05?
A: Its extension cable capacitance is typically 69.9 pF/m (21.3 pF/ft).
|
