Bently Nevada 330162-03-45-45-45-05-05-94-01-02 Dual Triaxial High-Pressure Feedthrough

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

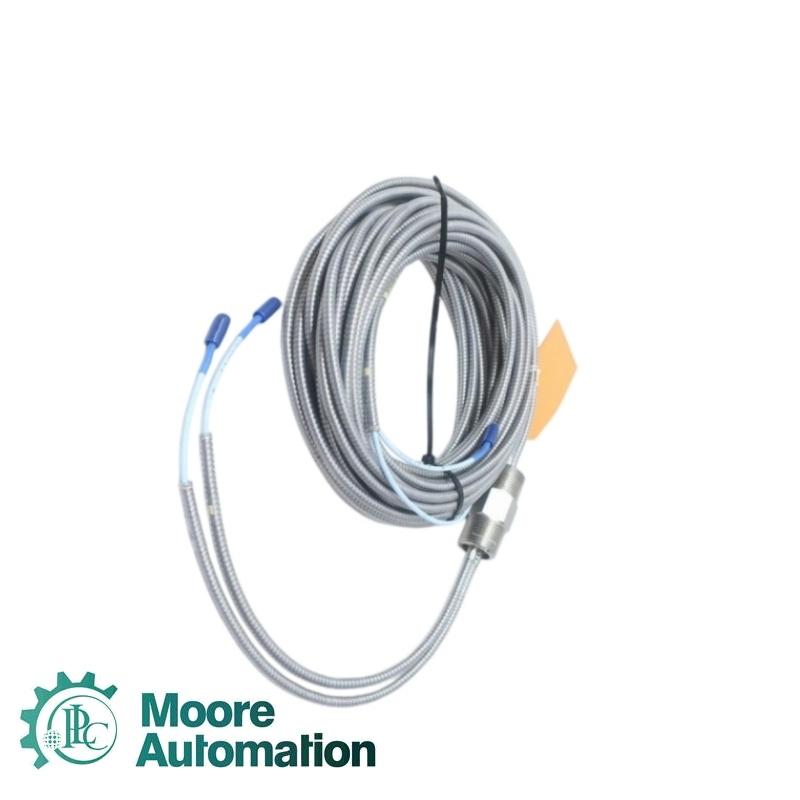

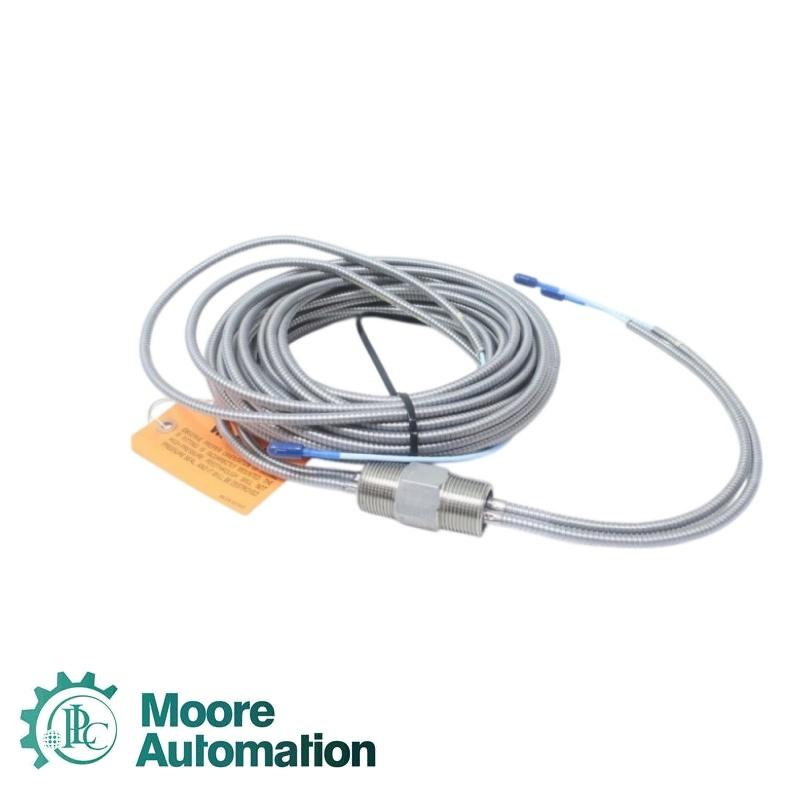

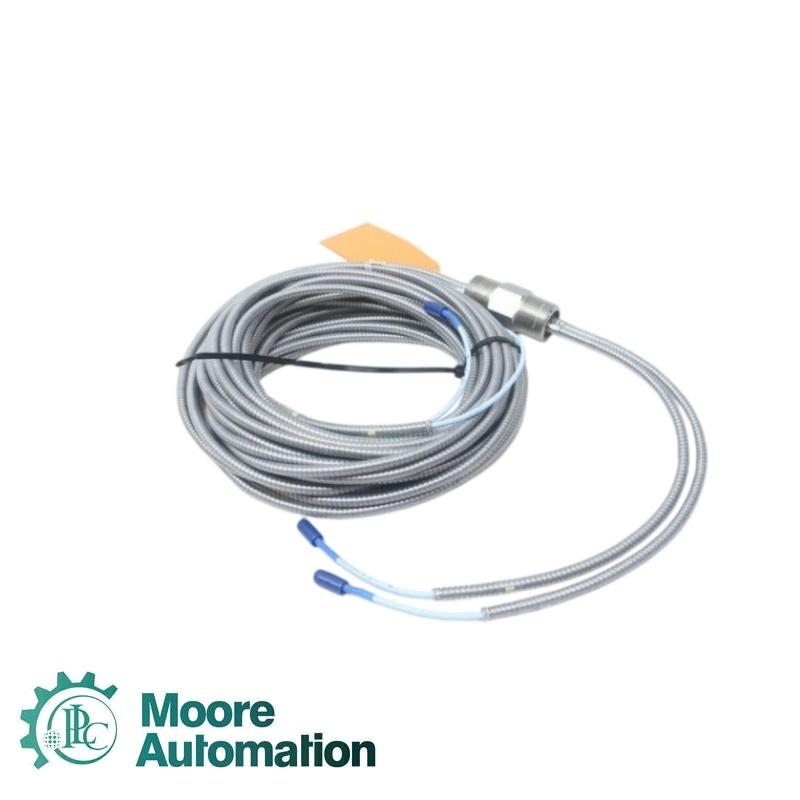

The 330162 family is a dual triaxial high-pressure feedthrough for 3300 systems. It routes two probe cables through pressurized machine cases, uses corrosion-resistant gold-plated brass ClickLoc connectors and has a standard pressure rating of 2.76 MPa (400 psi).

ManufacturerBently Nevada

Ordering number330162-03-45-45-45-05-05-94-01-02

Product family3300 XL High-Pressure Feedthrough

Product typeDual triaxial HP feedthrough

Cable circuits2

Maximum pressure2.76 MPa (400 psi)

Humidity100% non-condensing

Minimum bend radius25.4 mm (1.00 in)

Fitting material303 stainless steel

Connector materialGold-plated brass

Connector typeClickLoc

Compatible probe families3300 XL 8 mm, 3300 XL 11 mm, 3300 5 mm

Application Industry

Pressurized compressor casesRoutes two proximity-probe cables through a pressure boundary.

Turbine casing penetrationsMaintains probe wiring continuity from the pressurized interior to ambient conditions.

High-pressure seal pointsProvides a specified cable passage where ordinary cable routing cannot retain case pressure.

Dual-channel probe installationsSupports two triaxial probe circuits through one feedthrough assembly.

FAQ

What pressure can 330162-03-45-45-45-05-05-94-01-02 seal?

The standard assembly is rated for 2.76 MPa, equivalent to 400 psi, when installed according to the official instructions.

How many probe cables pass through 330162-03-45-45-45-05-05-94-01-02?

It is the dual version and routes two triaxial probe circuits through the machine case.

Which probe families can use 330162-03-45-45-45-05-05-94-01-02?

The official datasheet lists 3300 XL 8 mm, 3300 XL 11 mm and 3300 5 mm probe systems.

What bend radius applies to 330162-03-45-45-45-05-05-94-01-02?

Maintain at least 25.4 millimetres, with or without armor.

What installation detail is critical for 330162-03-45-45-45-05-05-94-01-02?

Select the O-ring for the process fluid, keep the cable interface protected from water and preserve the required total transducer-system length.
