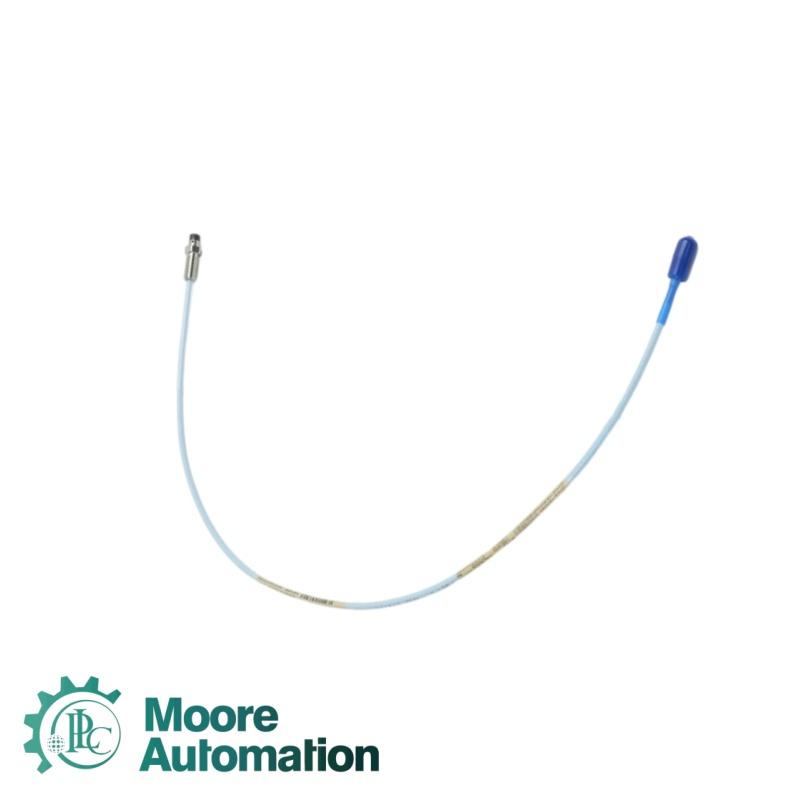

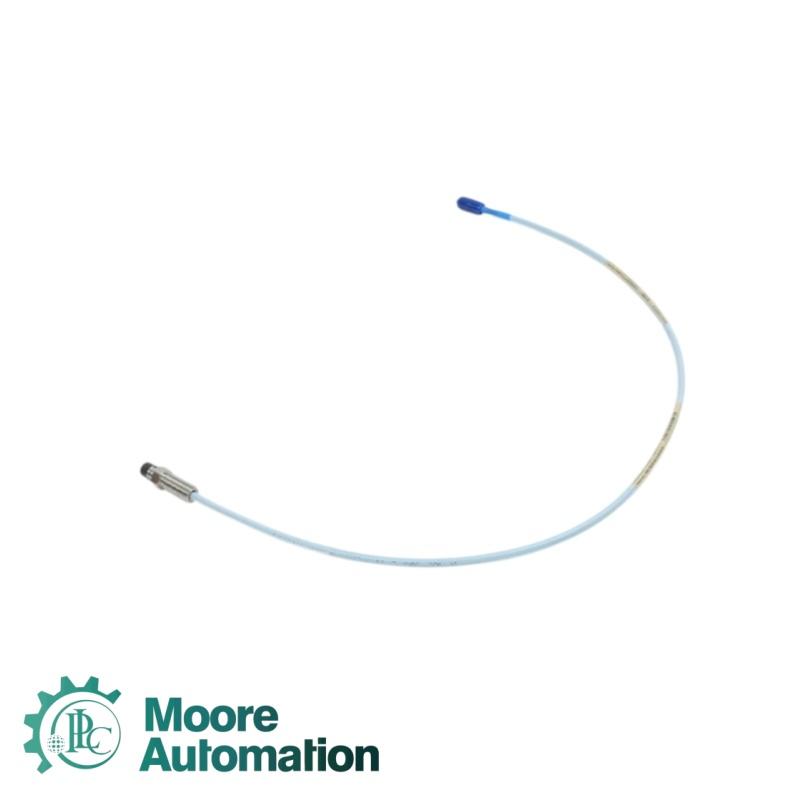

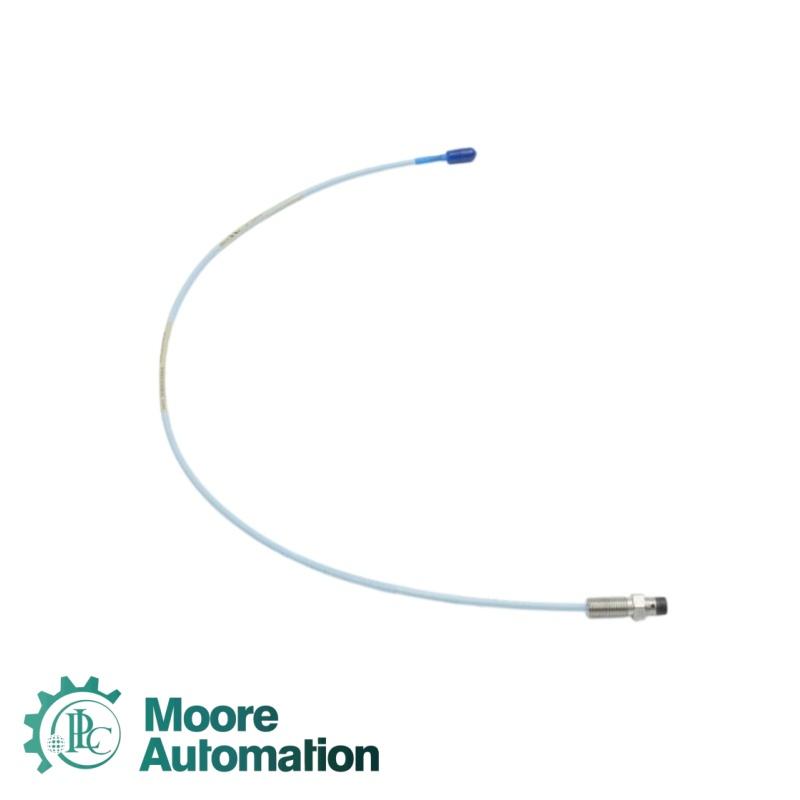

Bently Nevada 330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Proximity Probe

Bently Nevada 330105-02-12-05-02-05 3300 XL 8 mm reverse mount proximity probe, 3/8-24 UNF, 0.5 m total length, Miniature ClickLoc coaxial connector and CSA/ATEX/IECEx approval option.

Official Baker Hughes order-code specifications. Contact Moore Automation for model verification, availability and quotation.

Item NO.:
330105-02-12-05-02-0
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 year
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

Specifications

The Bently Nevada 330105-02-12-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe with a 3/8-24 UNF thread. Its order code specifies 0.2in unthreaded length, 1.2in case length, 0.5m total length, a Miniature ClickLoc coaxial connector and the CSA, ATEX and IECEx approval option. It is designed for non-contact radial vibration and axial position measurements on rotating machinery when used with the matching 3300 XL extension cable and Proximitor sensor.

Product family330105=3300 XL 8mm reverse mount probe

Unthreaded length02=0.2in

Case length12=1.2in

Total length05=0.5m

Connector option02=Miniature ClickLoc coaxial connector

Approval option05=CSA, ATEX, IECEx

Mounting thread3/8-24 UNF

Probe tip8mm

Linear range2.0mm (80mil)

Nominal scale factor7.87V/mm (200mV/mil)

Application Industry

Steam and gas turbinesSupports non-contact shaft vibration and axial position monitoring on critical rotating equipment.

Compressors and pumpsProvides close-clearance probe installation where reverse mounting is required.

Motors and generatorsHelps monitor shaft motion in machinery protection and condition-monitoring systems.

Maintenance and retrofit projectsSupports exact order-code replacement in installed 3300 XL 8 mm transducer systems.

FAQ

What does the complete 330105-02-12-05-02-05 order code specify?

It identifies a 330105 reverse mount 8 mm probe with 02=0.2in unthreaded length, 12=1.2in case length, 05=0.5m total length, 02=Miniature ClickLoc coaxial connector and 05=CSA, ATEX and IECEx approvals.

Can this probe directly replace a standard-mount 330101 or 330102 probe?

Not automatically. Reverse-mount geometry and installation hardware differ, so buyers should match the complete order code, mounting drawing and installed transducer system.

Does the listing include an extension cable and Proximitor sensor?

This model identifies the probe. Please confirm the quoted supply and order matching 3300 XL extension-cable and Proximitor-sensor components separately when required.

What should I verify before ordering?

Check the 3/8-24 UNF reverse-mount arrangement, all five order-code options, total system length, connector type, approval requirements and compatibility with the installed 3300 XL system.

Is this reverse-mount probe available with armor or a connector protector?

Baker Hughes documentation states that reverse-mount probes are not available with armor or a connector protector.

What pre-shipment service does Moore Automation provide?

Moore Automation can verify model markings, inspect the item, provide available technical documents and share shipment photographs before dispatch.
