Brand:
Bently NevadaOrder(MOQ):
1Payment:
T/TProduct Origin:
USAColor:
Brand NewShipping Port:
XiamenLead Time：
in stock

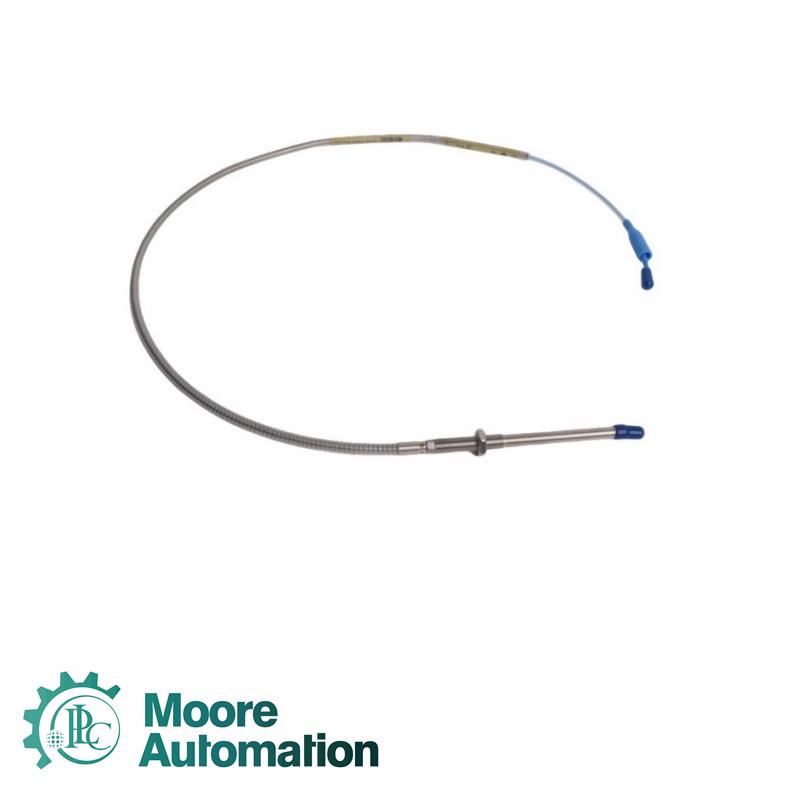

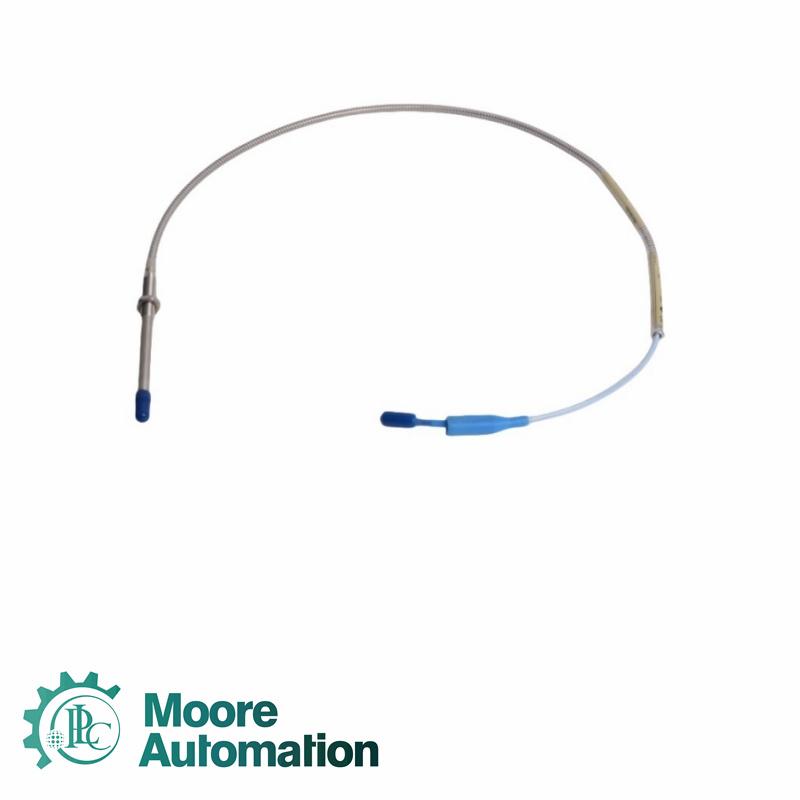

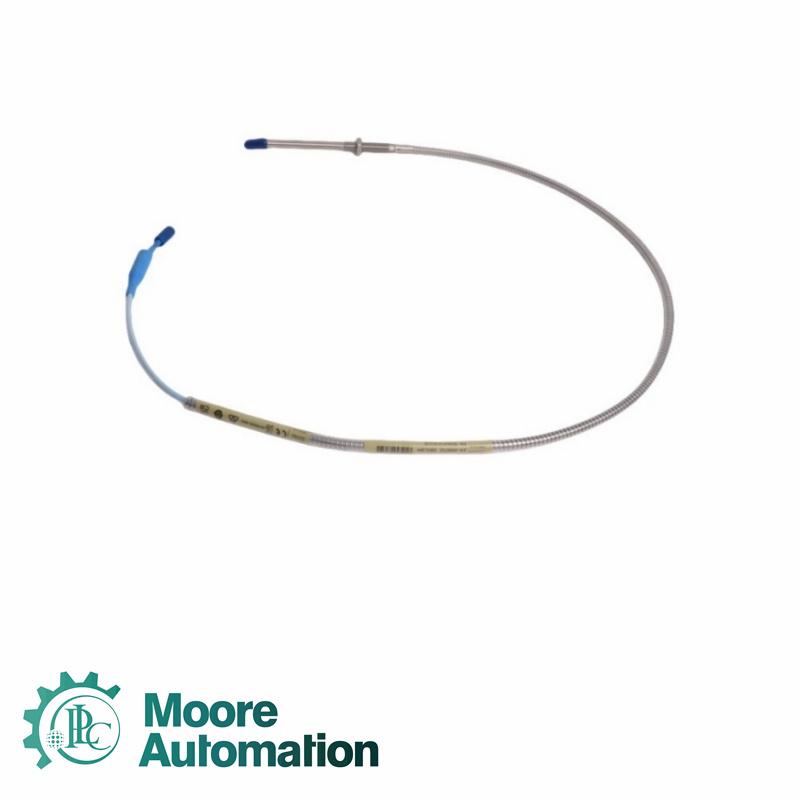

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
Property
Characteristics
Unthreaded Length Option (Minimum):
70 mm
Overall Case Length Option (Minimum):
140 mm
Total Length:
5.0 m (16.4 ft)
Connector Type:
Miniature coaxial ClickLoc connector with protector, standard cable
Agency Approval:
CSA, ATEX, IECEx
Probe Case Thread:
M10 x 1
Max Thread Engagement Length:
15 mm
Dimensions:
1.8x1.5x112cm
Weight:
0.14kg
Operating and Storage Temperature:
-52 °C to +177 °C (-62 °F to +350 °F)
Supply Sensitivity:
< 2 mV change in output voltage per volt change in input voltage
Output Resistance:
50 Ω
Extension Cable Capacitance:
69.9 pF/m (21.3 pF/ft) typical
Field Wiring:
0.2 to 1.5 mm² (16 to 24 AWG)
Linear Range:
2 mm (80 mils)
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Quick to get a competitive price |
|
Sale Manager: John Yang |
|
More brands you may want to find |
|
----(DCS)Distributed Control System ABB/Invensys/Foxboro/Invensys Triconex/Westinghouse/Woodword/HIMA/Yokogawa/Honeywell/Emerson ----(PLC)Programmable Logic Controller Rockwell/Allen-Bradley/Schneider/Modicon/GE Fnauc/Siemens/Prosoft/Bachmann/Woodhead ----(TSI)Turbocharger Stratified Injection Bently Nevada/EPRO/ENTEK |
Application
Chemical plants/refineries: large centrifugal compressors, turbine-driven pumps, extrusion presses.
Power plants (thermal/nuclear): steam turbine units, generators, feedwater pumps.
Steel plants: blast furnace blowers, large induced draft fans.
Air separation plants: air separation unit rotor monitoring.
FAQ
Q: What is the 330104-07-14-05-01-05?
A: It is a 3300 XL 8 mm Proximity Probe.
Q: Why choose "reverse installation" of 330104-07-14-05-01-05?
A: For use with the probe housing, allowing for external probe replacement or gap adjustment without disassembling the housing.
Q: What installation voltage should I set of 330104-07-14-05-01-05?
A: The standard mounting point corresponds to a preamplifier output of -10.0 VDC.
Q: Can a 0.5-meter 330104-07-14-05-01-05 be directly connected to the preamplifier?
A: No. A 4.5-meter or 8.5-meter extension cable must be used to match the total system length (5 meters or 9 meters).
