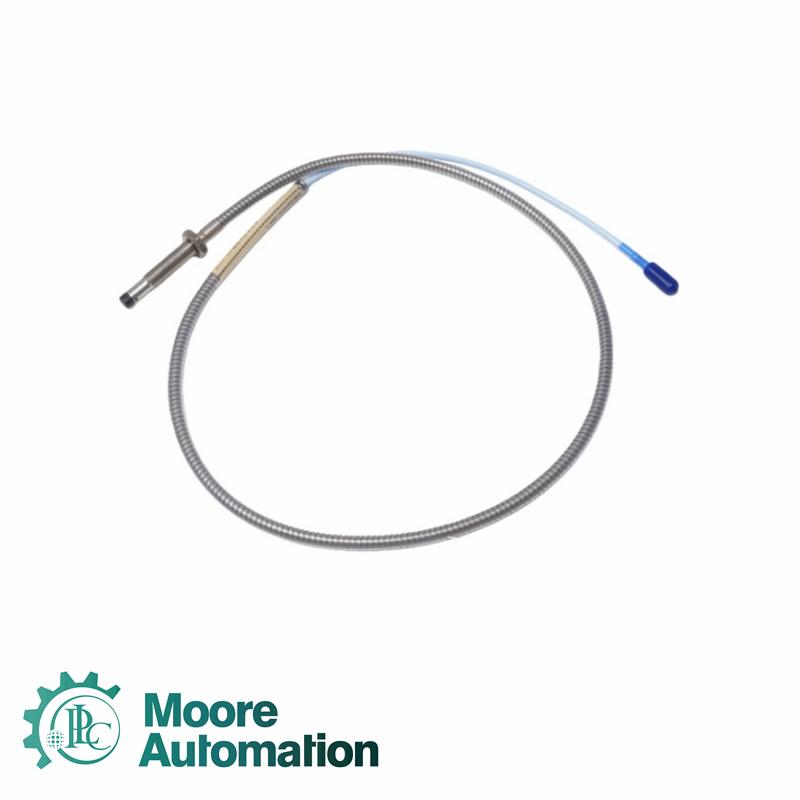

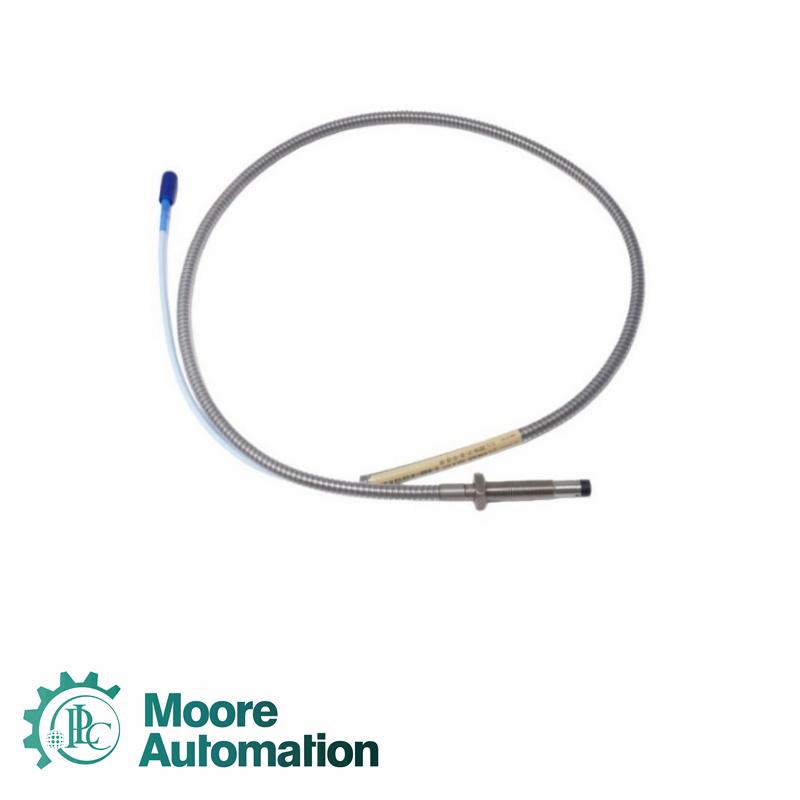

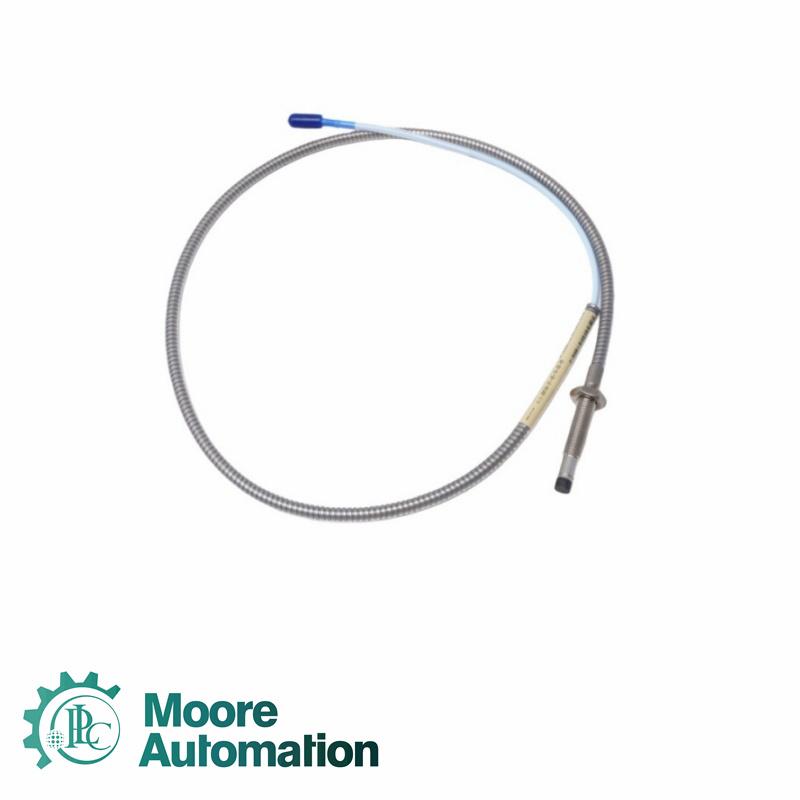

Here is the information about Bently Nevada 330104-01-04-15-02-05
Specifications
Unthreaded length option (minimum)
10 mm
Overall case length option (minimum)
40 mm
Total length option
1.5 m (4.9 ft)
Connector and cable-type option
Miniature coaxial ClickLoc connector, standard cable
Agency approval option
CSA, ATEX, IECEx approvals
Probe case thread
M10×1
Maximum thread engagement length
15 mm
Dimensions
2x1.5x112cm
Weight
0.14kg
Operating and storage temperature
-52°C to +177°C (-62°F to +350°F)
Supply sensitivity
<2 mV change in output voltage per 1 V change in input voltage
Output resistance
50 Ω
Extension cable capacitance
69.9 pF/m (21.3 pF/ft) typical
Field wiring
0.2 to 1.5 mm² (16 to 24 AWG)
Linear range
2 mm (80 mils)
Product Description
The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
Application
Combined Cycle Power Plants: Used for turbine shaft vibration monitoring, with a 1.5-meter cable length suitable for compact bearing housing wiring requirements.
Petroleum Refining Plants: Deployed on reciprocating compressors in hazardous explosion-proof zones, with IECEx certification ensuring compliance in flammable environments.
Fine Chemical Plants: Applied in critical pump vibration monitoring, with M10 metric threads enabling direct installation compatibility with European and Asian equipment.
Special Steel Metallurgy Plants: Used in high-dust and high-vibration rolling equipment, where ClickLoc interfaces maintain electrical continuity of signal transmission.
Frequently Asked Questions
Q: How does the 10mm threadless length of the 330104-01-04-15-02-05 help with installation gap adjustment?
A: It provides more freedom within mounting holes, enabling easier gap positioning in compact bearing supports.
Q: How is signal quality ensured for the 330104-01-04-15-02-05 within a 1.5-meter length limit?
A: Low impedance design with capacitance matching and 16–24 AWG cabling reduces signal loss.
Q: Can the 330104-01-04-15-02-05 operate directly at -50°C cold start conditions?
A: Yes, it operates down to -52°C for reliable cold-region monitoring without extra heating.
Q: What should be done if oil enters the connector of the 330104-01-04-15-02-05?
A: Clean with special solvent, dry, then reconnect to restore proper electrical contact.
Q: Why does the 330104-01-04-15-02-05 require CSA, ATEX, and IECEx certifications?
A: To ensure global hazardous-area compliance and meet international safety and insurance standards.
|
