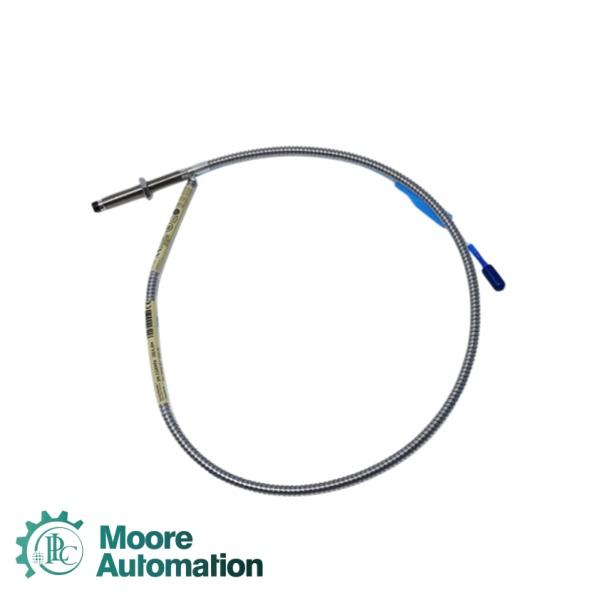

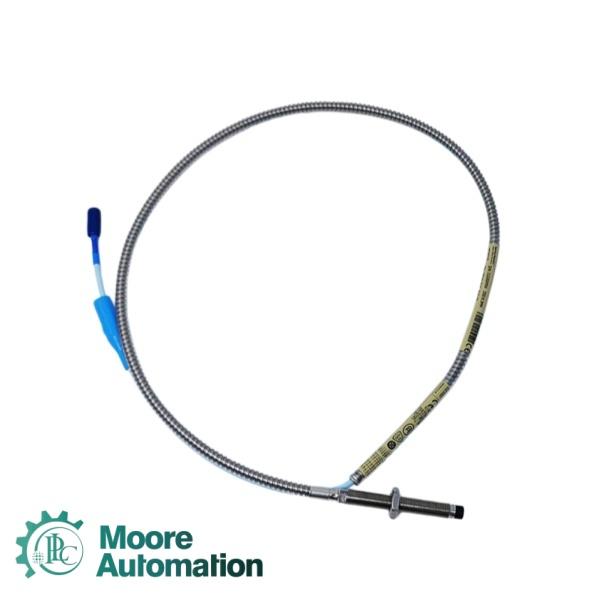

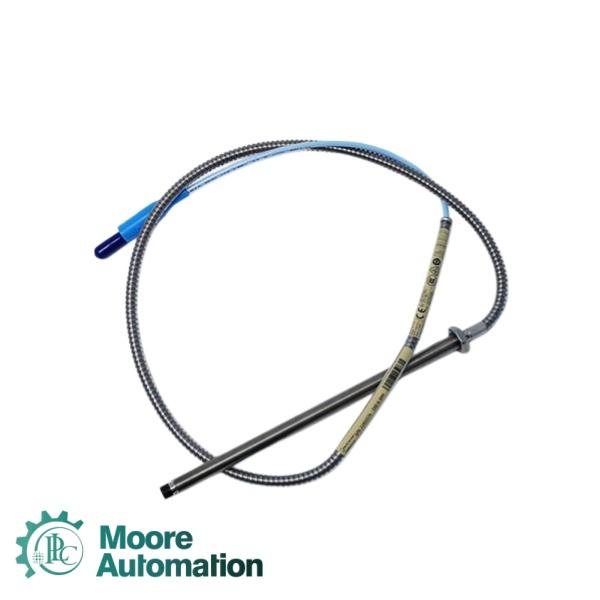

Bently Nevada 330104-00-17-10-11-05 3300 XL 8 mm Proximity Probes

 We stand by 100% authentic products for every order

Unthreaded Length: 0 0 = 0 mm

Overall Case Length: 1 7 = 170mm

Total Length: 10 = 1.0 meter (3.3 feet)

Connector and Cable-Type: 11 = Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

Agency Approval: 05: CSA, ATEX, IECEx  Approvals

DC Resistance: 7.59 Ω ±0.50

Capacitance: 69.9 pF/m (21.3 pF/ft)

Output Impedance: 50 Ω

Linear Range: 0.25–2.3 mm (10–90 mils)

Weight: Approx. 323 g to 500 g (varies by configuration)

Input Voltage Range: -17.5 Vdc to -26 Vdc (from Proximitor® sensor)

Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%

Recommended Gap Setting:  -9 Vdc (approximately 1.27 mm / 50 mils)

Accuracy (Standard System): ±5% including interchangeability error over 0°C to +45°C

 Features

·The probe's cable features a patented CableLoc™ design that provides 330 N (75 lbf) of pull strength, securely attaching the probe cable to the probe body . This prevents accidental cable pull-out during installation or maintenance, significantly enhancing mechanical reliability in harsh industrial environments.

·This specific configuration includes the FluidLoc cable with a connector protector . This specialized cable prevents internal liquid leaks—such as oil, water, or industrial lubricants—from wicking through the cable interior. It provides critical protection for applications where the probe may be exposed to fluid immersion.

·All 3300 XL 8 mm system components (probes, extension cables, and Proximitor sensors) are fully interchangeable without the need for individual matching or bench calibration . The standard system also fully complies with API 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability .

 Application

 FAQ

 Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
