Bently Nevada 330104-00-06-50-02-00 3300 XL 8mm Proximity Transducer System

Item Overview

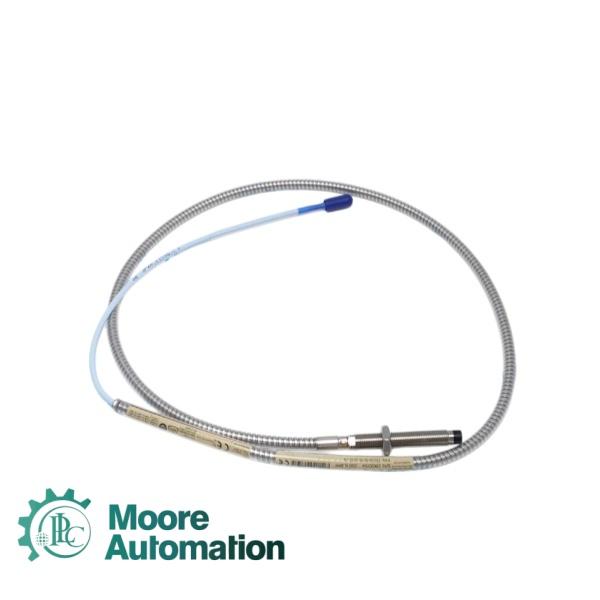

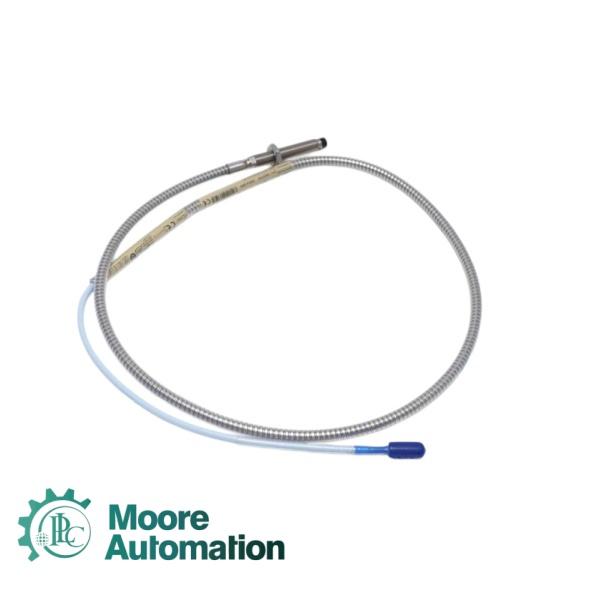

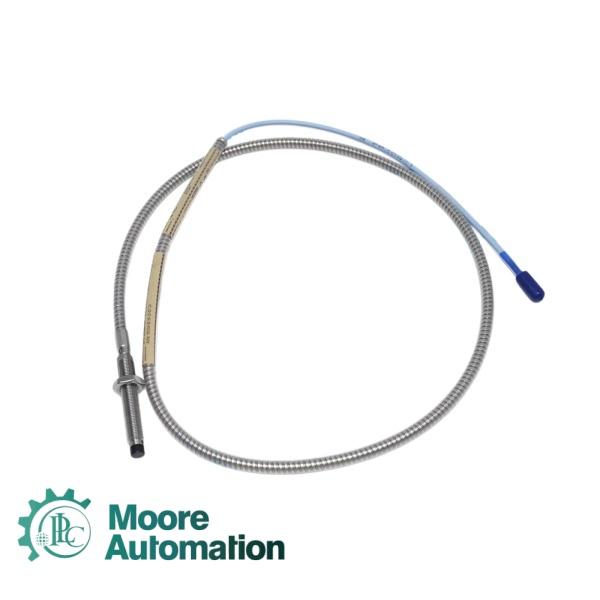

The 330104-00-06-50-02-00 is a 3300 XL 8 mm Proximity Probe from Baker Hughes (Bently Nevada). It is a critical component of the 3300 XL proximity transducer system, designed for non-contact vibration and position measurement of conductive surfaces.

Performance Specifications

part number：

330104-00-06-50-02-00

Weight:

0.95kg

Estimated shipping dimensions:

30x30x5cm

Total Length Option:

5.0 meters (16.4 feet)

Unthreaded Length:

Length configurations: Maximum unthreaded length:

 0 0 = 0.0 in.

Overall Case Length:

Order in increments of 0.1 in. Threaded Length configurations:

 0 6 = 0.6 in.

Total Length:

5  0

5.0 meters (16.4 feet)

Connector:

0  2

Miniature coaxial ClickLoc connector, standard cable

Agency Approval:

0  0

Not required

Application

Radial Vibration Monitoring – Measures shaft vibration on fluid-film bearing machines such as steam turbines, gas turbines, compressors, and large pumps.

Shaft Eccentricity Measurement – Detects rotor bow during startup or shutdown, especially in large turbines.

With armor – Suitable for installations where the probe cable may be exposed to abrasion, high temperature, or mechanical stress.

 M10 x 1 thread – Metric thread for mounting in standard European or international machine casings.

High temperature capability – Standard probe operates up to +177°C (+350°F); extended temperature range (ETR) versions available for up to +218°C (+425°F).

FAQ

Question

Answer

Q1：What is the matching rule between probe length and Proximitor sensor?

A1: 5m probe must pair with a 5m system Proximitor (e.g., 330180-50-00).

Q2：What is the minimum bend radius for the armored cable?

A2: 25.4 mm (1.0 in). Bending tighter may damage the internal cable.

Q3：What is the linear range per API 670 standard?

A3: 2 mm (80 mils), from 0.25 mm (-1V) to 2.3 mm (-17V).

Q4：What is the Incremental Scale Factor (ISF) accuracy?

A4: 7.87 V/mm (200 mV/mil) ±5%, including interchangeability error.

Q5：What is the recommended minimum target shaft diameter?

A5: 76.2 mm (3.0 in); absolute minimum is 50.8 mm (2.0 in).
