Bently Nevada 330104-00-06-10-02-00 Proximity Probes

Contact Info

Product 330104-00-06-10-02-00

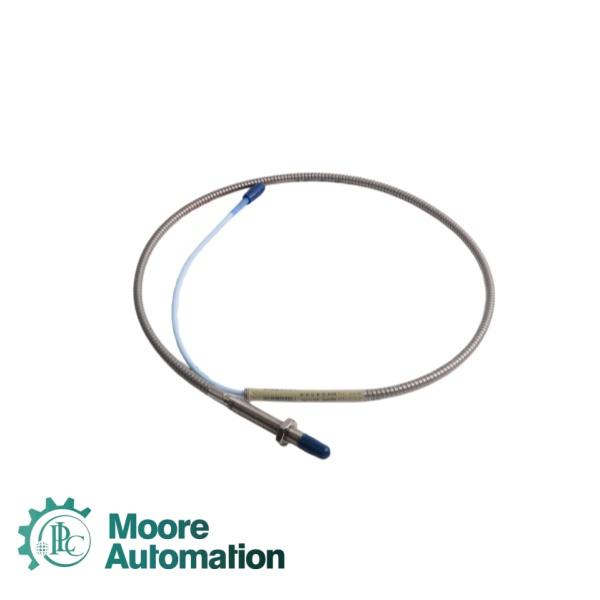

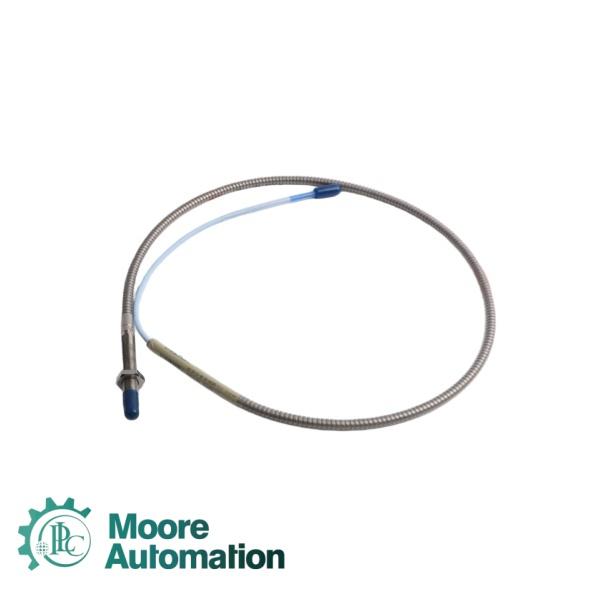

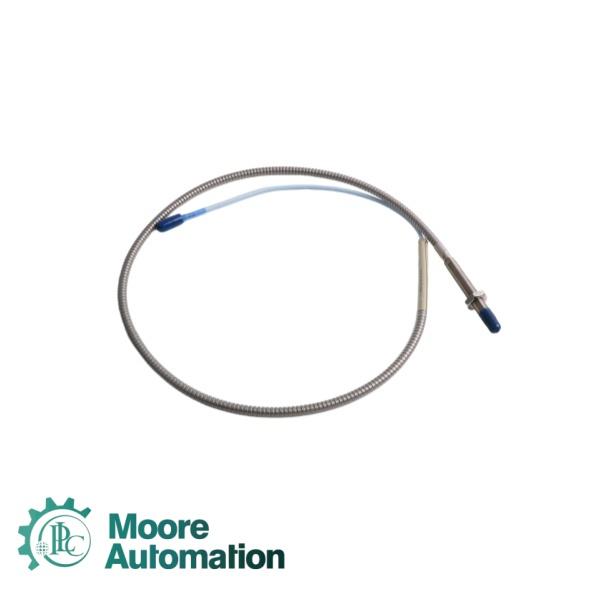

The 330104-00-06-10-02-00 is a 3300 XL Series 8 mm Proximity Probe manufactured by Bently Nevada . It is a non-contact eddy current sensor designed for precision vibration and displacement monitoring of rotating machinery . This specific configuration features an M10 x 1 metric thread and an integral stainless steel armor jacket, which provides superior mechanical protection for the probe cable in harsh industrial environments .

Technical Specifications

Features

➟Non-Contact Eddy Current Measurement Technology: The probe uses eddy current principles to measure the distance between the probe tip and a conductive target without physical contact, enabling real-time monitoring of shaft vibration, axial displacement, Keyphasor® reference signals, and rotational speed .

➟Integral Armor for Enhanced Durability: The "with armor" design (denoted by the 330104 base model) includes a stainless steel braid or conduit over the probe cable. This provides excellent mechanical protection against cutting, abrasion, and crush damage, making it ideal for harsh environments where cables are exposed to debris or maintenance activities .

➟High Accuracy over a Standardized Linear Range: The probe offers a linear range of 2.0 mm (80 mils), typically starting from a 0.25 mm (10 mils) air gap . The recommended gap for radial vibration measurement is 1.27 mm (50 mils) . Sensitivity is rated at 7.87 V/mm (200 mV/mil) .

➟Robust Mechanical Design for Harsh Environments: The probe casing is constructed from AISI 303/304 stainless steel, and the tip is made from PPS for high dielectric strength and chemical resistance . A Viton® O-ring seals the probe tip to the case, preventing fluid ingress .

➟Wide Temperature Range Operation: The probe is engineered for extreme conditions, with a standard operating temperature range from -40°C to +177°C for the probe and extension cable, allowing for installation directly on or near high-temperature machinery like steam turbines and compressors .

FAQ

➪ Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

➪ Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

➪ Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

➪ Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

➪ Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
