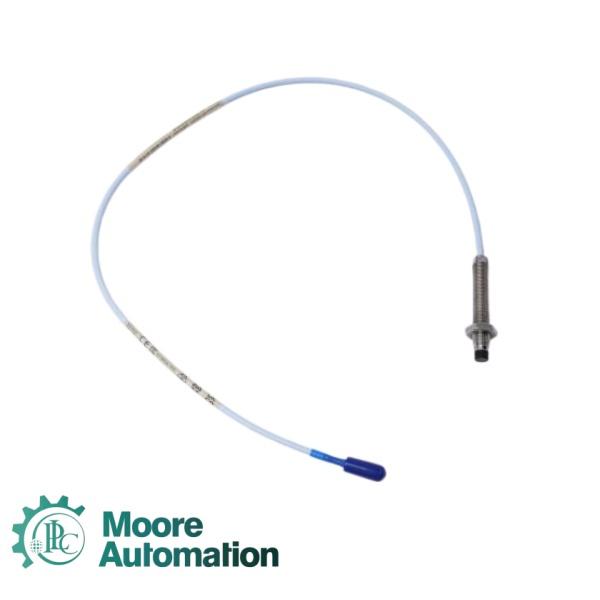

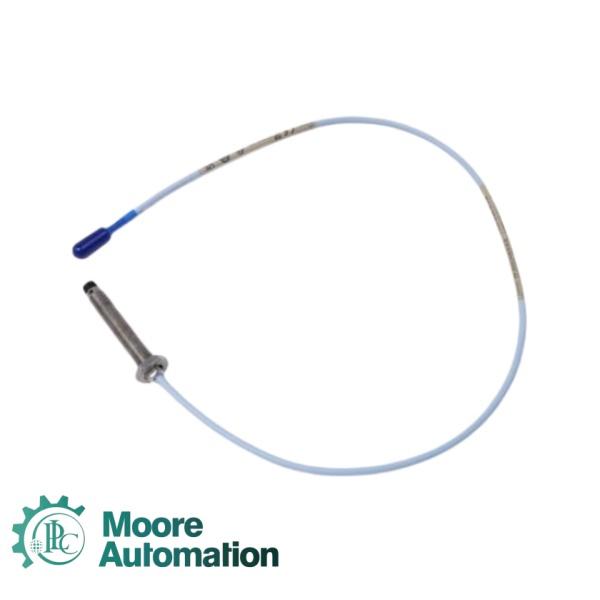

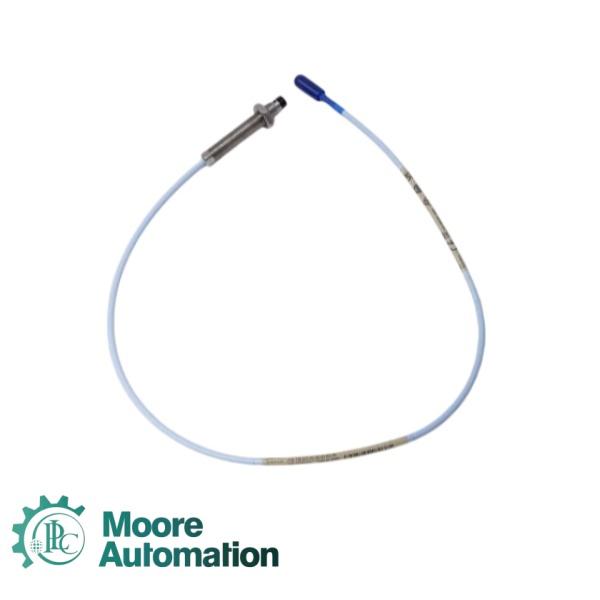

BENTLY NEVADA 330103-00-06-05-11-05
The Bently Nevada 330103-00-06-05-11-05 is a non-contact eddy current proximity probe from the 3300 XL series, designed for precision vibration and position monitoring of rotating machinery . This specific configuration features an M10 x 1 thread, an unthreaded length of 0 mm, an overall case length of 60 mm, and a 0.5-meter total length . As part of a complete transducer system (probe, extension cable, and Proximitor sensor), it provides an output voltage directly proportional to the distance between the probe tip and a conductive surface, enabling measurement of both static (position) and dynamic (vibration) values .
Sale Manager:
Email:
Mobile(WhatsApp):
Yuki Huang
Specification Highlights
Unthreaded Length
0 0 =0mm
Overall Case Length
0 6 = 60mm
Total Length
05: 0.5 meter (1.6 feet)
Connector and Cable-Type
11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
Agency Approval
05: CSA, ATEX, IECEx Approvals
Output Voltage Range
-1 Vdc to -17 Vdc
Sensitivity (ISF)
7.87 V/mm (200 mV/mil) ±5%
Recommended Gap
1.27 mm (50 mils) @ -9 Vdc
Frequency Response
0 to 10 kHz (0, -3 dB)
Nominal Probe DC Resistance
7.45 Ω ± 0.50 Ω (center to outer conductor)
Probe Tip Material
Polyphenylene sulfide (PPS)
★Your choice, our service ★Your trust, our quality ★Your satisfaction, our pursuit
If you want to more details，please contact me without hesitate.
Email: Sales6@askplc.com Mobile(WhatsApp): +86-17359287459
Applications
Speed & Keyphasor Reference – Provides once-per-turn timing marks for phase analysis, balancing, and precise speed measurement.
Radial Vibration Monitoring – Measures shaft vibration in steam and gas turbines, generators, and compressors to detect unbalance or bearing wear.
FAQ
Q: What is Bently Nevada known for?
A: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.
Q: What types of measurements do Bently Nevada products provide?
A: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.
Q: Are Bently Nevada products compliant with international standards?
A: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.
Q: What industries does Bently Nevada serve?
A: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.
