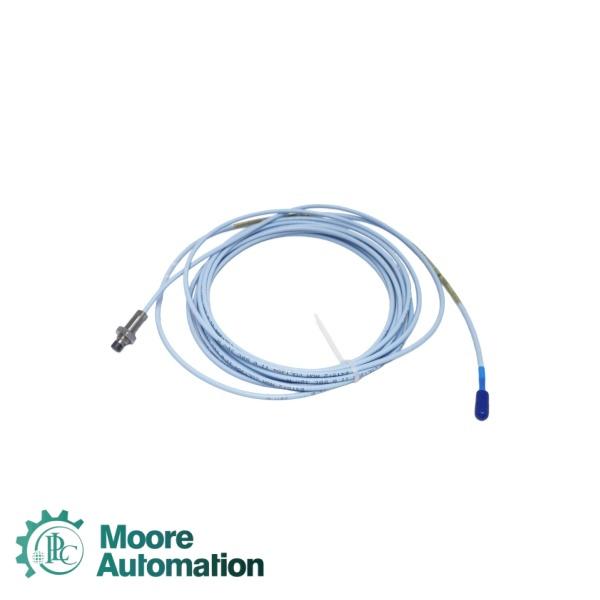

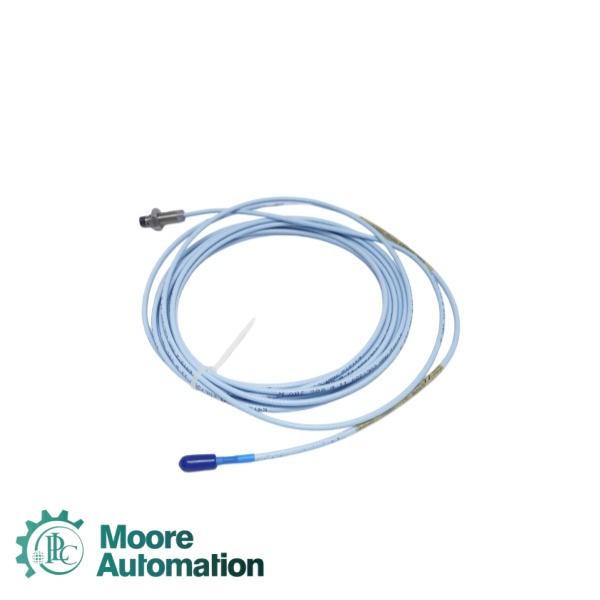

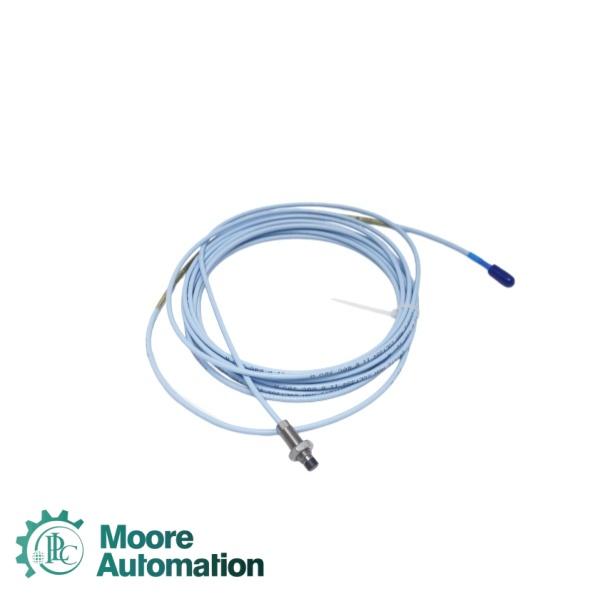

Bently Nevada 330103-00-03-15-01-CN 3300 XL 8 mm Proximity Transducer

Contact me

Yuki (Sales Manager)

Email: sales6@askplc.com

WhatsApp: +86 17359287459

Introduce

The Bently Nevada 330103-00-03-15-01-CN is a 3300 XL Series 8 mm Proximity Probe, designed for non-contact vibration and displacement measurement of rotating machinery shafts. This model is part of Bently Nevada's highly reliable 3300 XL family of eddy current sensors, which are widely used for continuous online monitoring of critical rotating equipment such as turbines, compressors, pumps, and fans . This probe features a metric M10 × 1 thread for installation in metric mounting holes, a standard feature in European and Asian machinery. The 330103 base model is a non-armored probe (without cable armor), and this specific configuration includes a 15 cm (150 mm) case length, allowing for deeper mounting into machine casings where standard case lengths may be insufficient.

Detailed Information

Unthreaded Length: 00=0mm

Overall Case Length: 03=30mm

Total Length: 15=1.5 meter (4.9 feet)

Connector and Cable-Type: 01=Miniature coaxial ClickLoc connector with connector protector, standard cable

Agency Approval: Approvals country specific

DC Resistance (probe only): 7.45 Ω ± 0.50 Ω (for 0.5m cable)

DC Resistance (1m cable): 7.59 Ω ± 0.50 Ω (for 1.0m cable)

Recommended Operating Gap: 1.27 mm (50 mils) @ -9 VDC

Supply Voltage (Proximitor): -24 VDC ±10%

Output Signal Range: -1 VDC to -17 VDC (linear range)

Nominal Gap Voltage: -9 VDC (typical operating point)

Features

(1) Metric Thread Standard: M10 × 1 metric thread for direct installation in metric mounting holes, common in European and Asian machinery.

(2) High Accuracy: Scale factor tolerance of ±5% with full interchangeability — probe replacement typically requires no recalibration.

(3) Extended Temperature Range: Probe tip withstands up to +218°C (+425°F) for high-temperature applications.

(4) Wide Linear Range: 2.0 mm (80 mils) linear range provides ample measurement span for vibration and position monitoring.

(5) Fully Threaded Design: 0 mm unthreaded length means the entire case is threaded, maximizing installation flexibility.

FAQ

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
