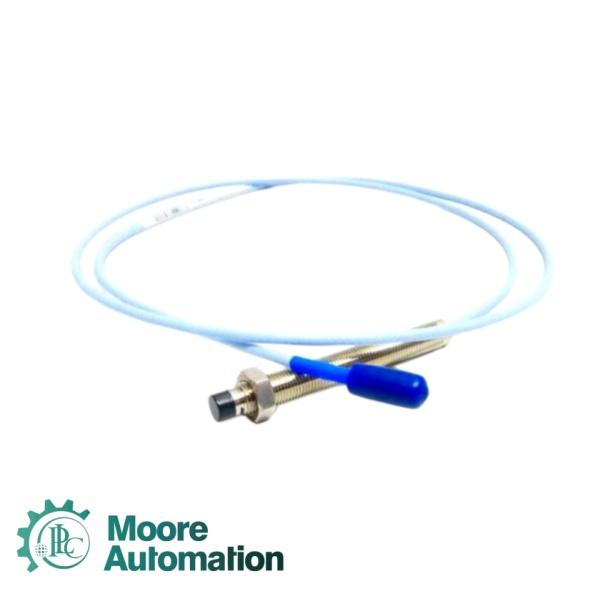

Bently Nevada 330102-60-96-10-02-00 3300 XL 8 mm Proximity Transducer System

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

Contact me

Sales manager →Yuki

Email→sales6@askplc.com

Phone/WhatsApp→+8617359287459

Product Information

The Bently Nevada 330102-60-96-10-02-00 is a non-contacting eddy current probe engineered for critical machinery protection and condition monitoring. It operates by emitting a high-frequency electromagnetic field from its 8 mm tip, detecting micro-level distance gaps between the tip and a target material.

When connected to a matching 3300 XL extension cable and Proximitor Sensor, it provides highly precise voltage outputs to monitoring systems, allowing operators to identify shaft misalignments, bearing wear, and dangerous rotor imbalances before a catastrophic mechanical failure occurs.

✦Unthreaded Length(60): 6.0in; ✦Overall Case Length(96): 9.6in; ✦Total Length(10): 1.0 meter (3.3 feet)

✦Connector and Cable-Type(02): Miniature coaxial ClickLoc connector, standard cable; ✦Agency Approval(00): Not required

✦Cable Type: 75 Ω coaxial cable; ✦Operating Temperature Range (Probe/Cable): -51 °C to +177 °C (-60 °F to +351 °F)

Key Features

Contactless Eddy Current Measurement: Observes static gaps and dynamic vibrations using magnetic fields without making physical contact, entirely eliminating mechanical wear and frictional drag on the machinery.

◯Example: Continuously tracking the high-speed radial shaft vibration of a centrifugal compressor rotor spinning at 14,000 RPM without causing any surface scratches or drag.

Universal Component Interchangeability: Allows any 3300 XL 8 mm series probe, extension cable, or Proximitor sensor to be field-swapped without requiring manual loop recalibration or adjusting external electronics.

◯Example: Swapping out a mechanically nicked probe with a standard spare unit from plant storage, immediately restoring full operation with the exact 200 mV/mil voltage response.

ClickLoc Connector with Protector: Equipped with a specialized miniature coaxial connection system and an integrated protective boot that prevents environmental contamination and accidental disconnection.

◯Sealing the critical probe-to-extension-cable connection link against moisture, dirt, and heavy-handed technician maintenance inside a damp field junction box.

FAQ

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
