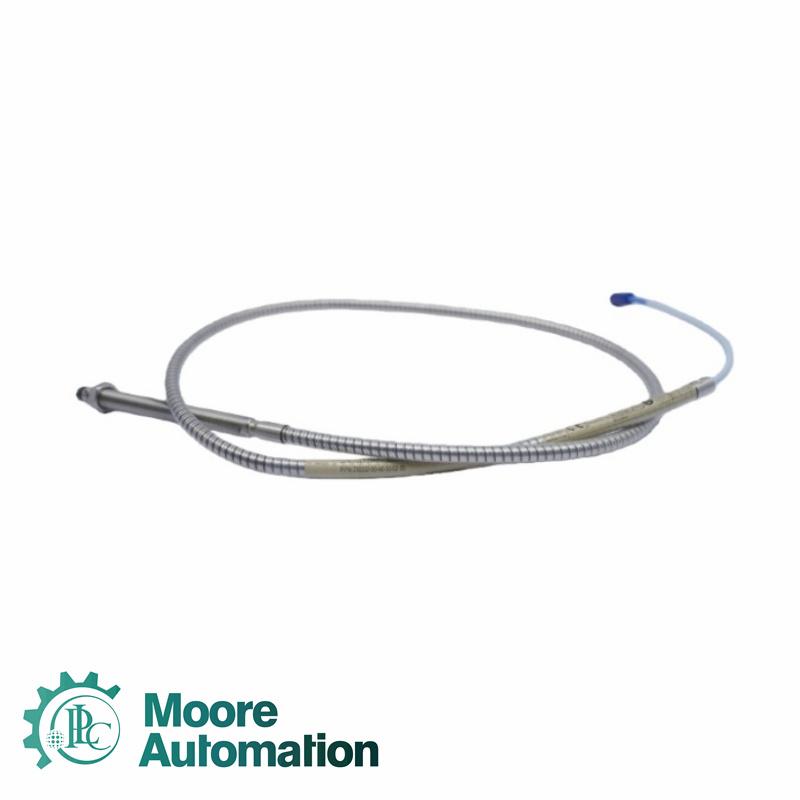

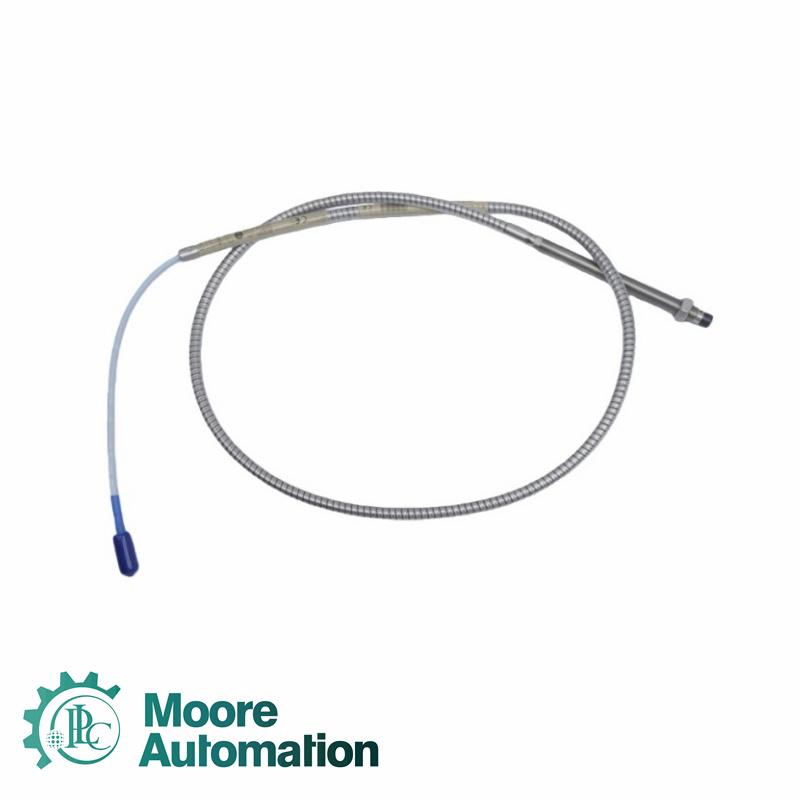

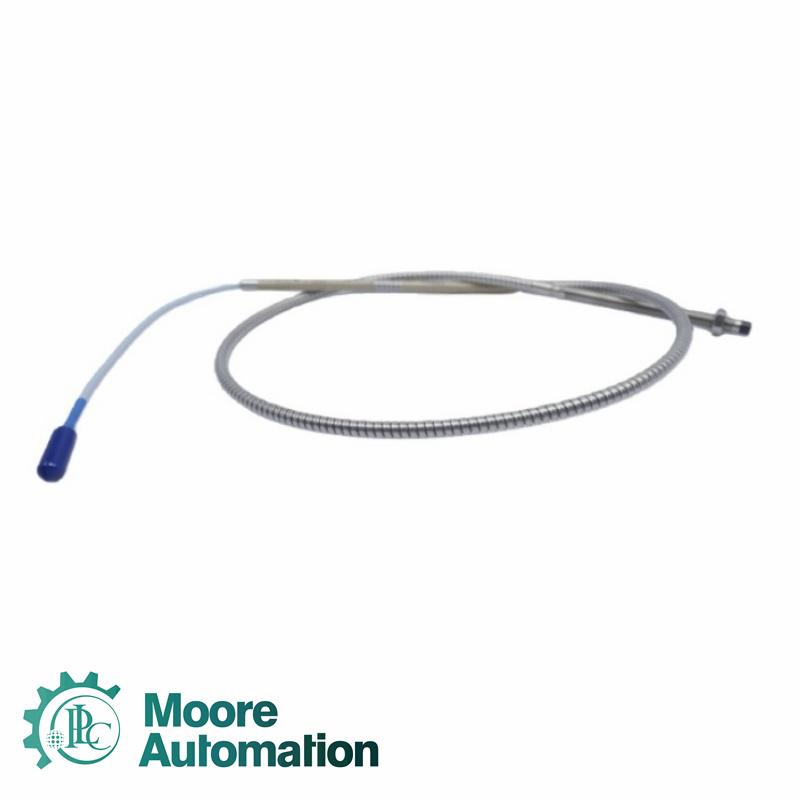

Bently Nevada 330102-00-40-10-01-00 3300 XL 8 mm Proximity Probe

24-hour Online Service-330102-00-40-10-01-00

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Long description-330102-00-40-10-01-00

Details-330102-00-40-10-01-00

The 3300 XL 8 mm Proximity Transducer System consists of: One 3300 XL 8 mm probe, One 3300 XL extension cable, and One 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Unthreaded Length (Minimum): 0.0 in
Overall Case Length (Minimum): 4.5 in
Total Length: 1.0 m (3.3 ft)
Connector and Cable Type: Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval: Not required
Probe Case Thread: 3/8-24 UNF
Maximum Thread Engagement Length: 0.563 in
Dimensions: 1.5x1.3x65cm
Weight: 0.05 kg
Operating and Storage Temperature: -52 °C to +177 °C (-62 °F to +350 °F)
Supply Sensitivity: < 2 mV/V
Output Resistance: 50 Ω
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Field Wiring: 0.2–1.5 mm² (16–24 AWG)
Linear Range: 2 mm (80 mils)
