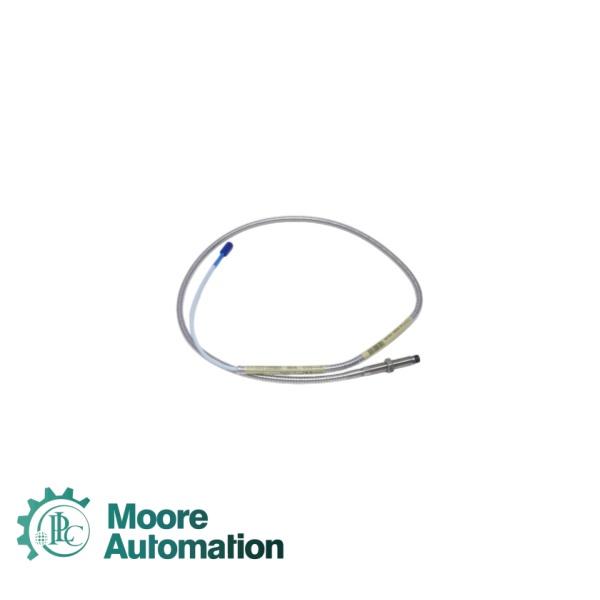

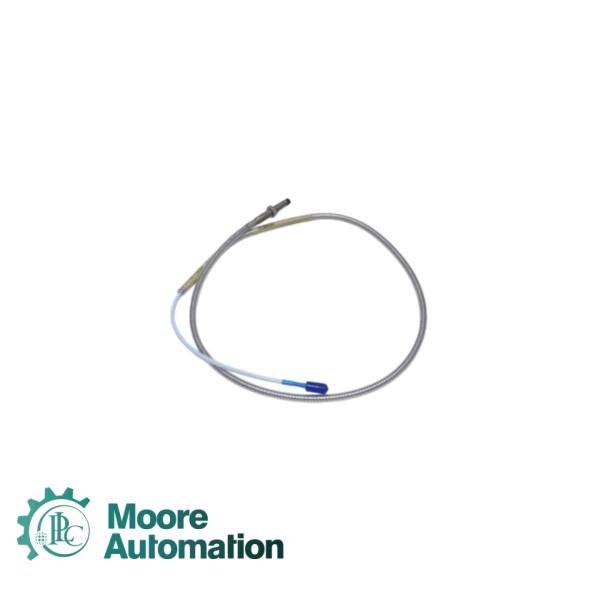

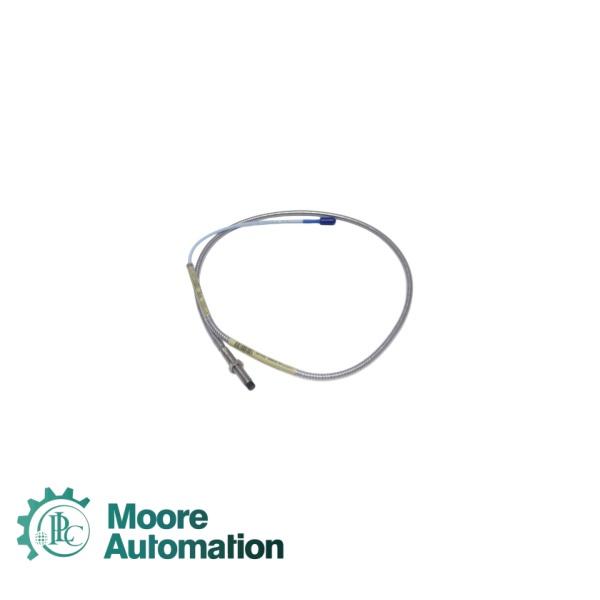

Bently Nevada 330102-00-20-05-02-00 Proximity Probes Cable

Contact Yuki

Email:Sales6@askplc.com   |    Whatsapp: +86-17359287459

The Bently Nevada 330102-00-20-05-02-00 is a high-performance eddy-current proximity probe from the 3300 XL 8 mm series. Designed for non-contact vibration and position monitoring, this model features a 3/8-24 UNF thread, a 2.0-inch case length, and 0.5-meter integral armored cable terminating in a miniature coaxial ClickLoc™ connector. As part of a 3300 XL transducer system (paired with a Proximitor® sensor), it converts physical displacement (shaft vibration or axial position) into a proportional voltage signal, providing critical machinery protection for turbines, compressors, and pumps in compliance with API 670 standards.

Product Details

Technical Data

➤ Cable Length: 0.5 meter (1.6 feet) integral armored cable

➤ Linear Range: 0.25 to 2.3 mm (10 to 90 mils)

➤ Output Voltage Range: –1 Vdc to –17 Vdc (over linear range)

➤ Frequency Response: DC to 10 kHz

➤ Nominal Probe DC Resistance: 7.45 Ω ± 0.50 Ω (for 0.5m cable)

➤ Operating Temperature: –52°C to +177°C (–62°F to +350°F)

➤ Storage Temperature: –52°C to +177°C

➤ Minimum Shaft Diameter: 50.8 mm (2.0 inches)

➤ Maximum Thread Engagement: 0.563 inches (14.3 mm)

➤ Pull Strength (CableLoc): 330 N (75 lbf)

Application

Radial Vibration Monitoring: Measuring shaft vibration relative to the bearing housing in high-speed rotating machinery .
Axial (Thrust) Position Monitoring: Monitoring shaft axial displacement to prevent thrust bearing failure .
Keyphasor® Reference Signal: Generating a once-per-turn timing marker for phase measurement and rotor balancing .
Small Shaft Monitoring: Specifically designed for shafts less than 51 mm (2 inches) in diameter, or planar targets less than 15 mm (0.6 inches) .

FAQ

Q: What is Bently Nevada known for?

A: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q: What industries does Bently Nevada serve?

A: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q: What types of measurements do Bently Nevada products provide?

A: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q: Are Bently Nevada products compliant with international standards?

A: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q: What is the 3500 monitoring system?

A: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
