Specification Highlights |
|
|
Dimensions |
115 × 1.5 × 4 cm |
|
Weight |
0.06 kg |
|
Unthreaded Length Option (Minimum unthreaded length) |
0.0 in |
|
Overall Case Length Option (Minimum case length) |
0.0 in |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement |
0.563 in |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance |
50 Ω |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range |
2 mm (80 mils) |
|
Probe Tip Material |
Polyphenylene sulfide |
|
Probe Case Material |
AISI 303 or 304 stainless steel |
Overview of the Product

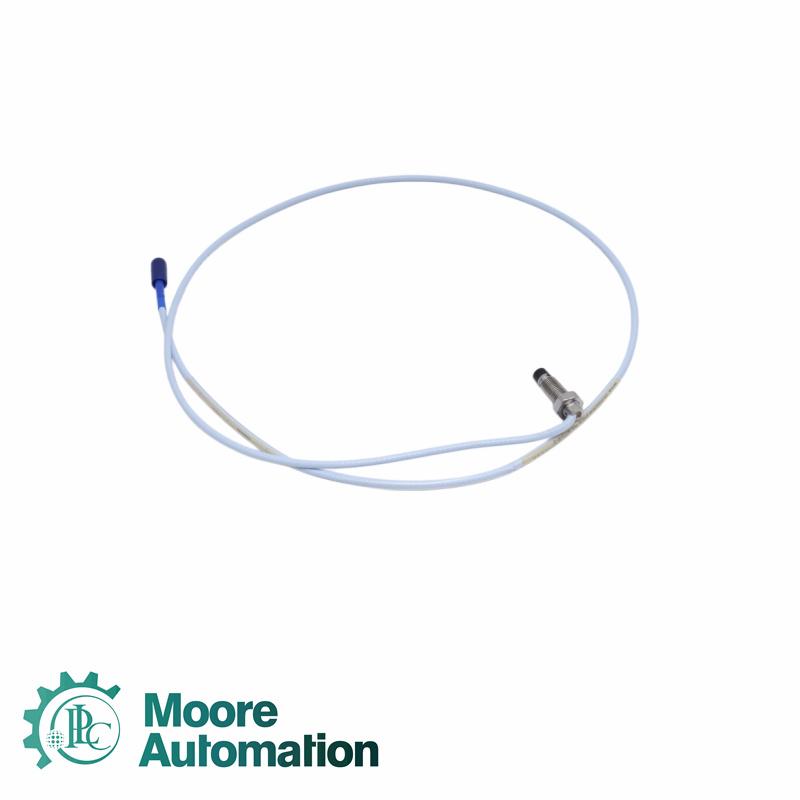

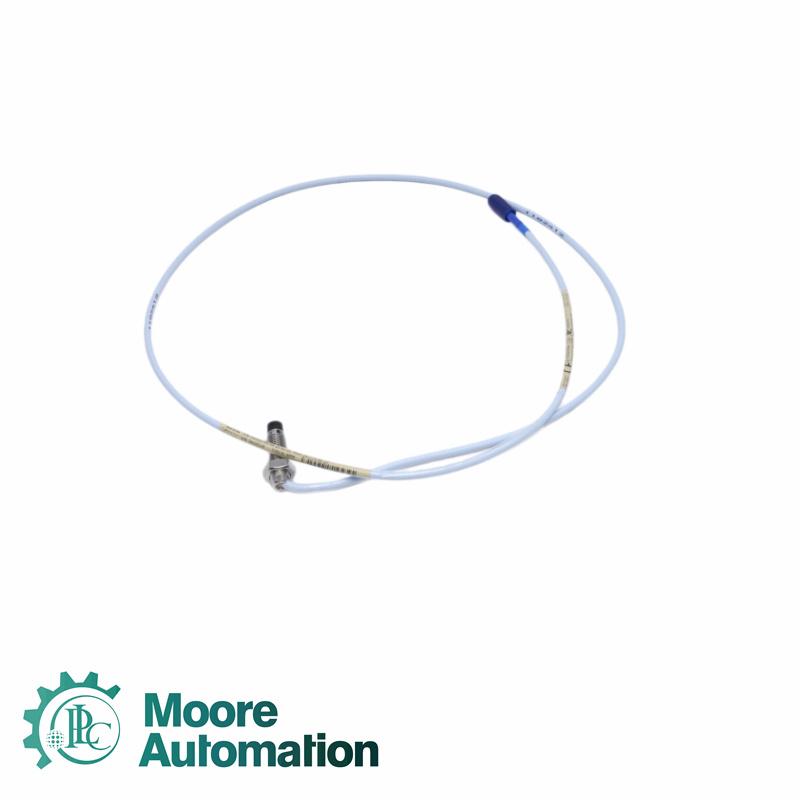

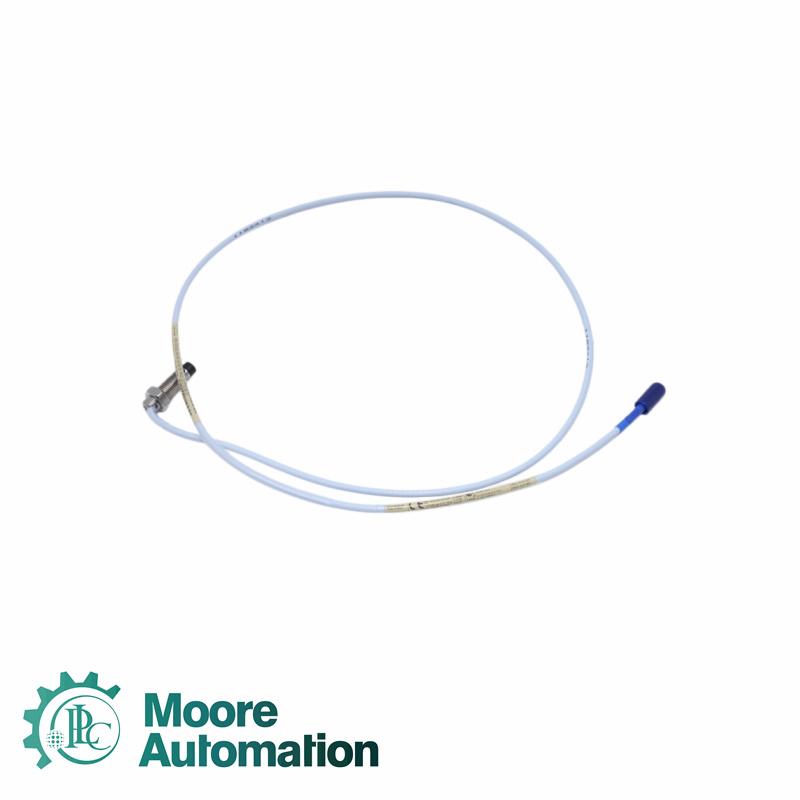

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
|
◆Best Price,Good price within limited time |
John Yang Email: sales3@askplc.com Mobile(WhatsApp): 86-18150117685 |
|
◆Fast Delivery&One Year Warranty |
|
|
◆24/7Service & Free Online Quotes |
Applicaiton
Thermal Power Plants: Used on turbine generators, pumps, and fans for shaft vibration and axial displacement monitoring.
Oil Refineries: Applied to compressors and pumps for early mechanical fault detection.
Natural Gas Transmission Plants: Installed in pipeline compressors for non-contact monitoring and trip protection.
Large Fertilizer Plants: Used on ammonia and CO₂ compressors to monitor shaft movement and key phase speed signals.
Industrial Gas Plants: Applied to high-speed expanders and compressors for accurate shaft dynamic monitoring.
Frequently Asked Questions
Q: What safety certifications does option 05 on the tail of the 330101-XX-XX-10-02-05 MOD:147773-00-12 with stainless steel armor protection provide?
A: Passed by the probe are multiple international explosion-proof safety certifications such as CSA, ATEX, and IECEx, as indicated by option 05.
Q: For probes with model number 330101-XX-XX-10-02-05 MOD:147773-00-12, what hardware basis does the basic order number 330101 determine?
A: It determines that it adopts a 3/8-24 UNF imperial thread structure and has a high-precision non-contact measurement base of 3300 XL 8mm.
Q: When routing cables in the field, what type of connector does option 02 in 330101-XX-XX-10-02-05 MOD:147773-00-12 specify?
A: Option 02 indicates that it is equipped with a standard coaxial mini ClickLoc connector without an additional protective sleeve.
Q: If a probe with the special customization mark 330101-XX-XX-10-02-05 MOD:147773-00-12 is connected to a regular non-MOD preamplifier, will it still work normally?
A: If the MOD changes the coil impedance or capacitance, connecting it to a regular preamplifier will cause output linearity distortion. Therefore, it is strongly recommended to purchase a corresponding customized preamplifier system.
Q: Regarding cable and capacitor configuration, what does option 10 in 330101-XX-XX-10-02-05 MOD:147773-00-12 represent?
A: Option 10 represents that the total length of the coaxial cable included with the probe is 1.0 meter (approximately 3.3 feet).
|
