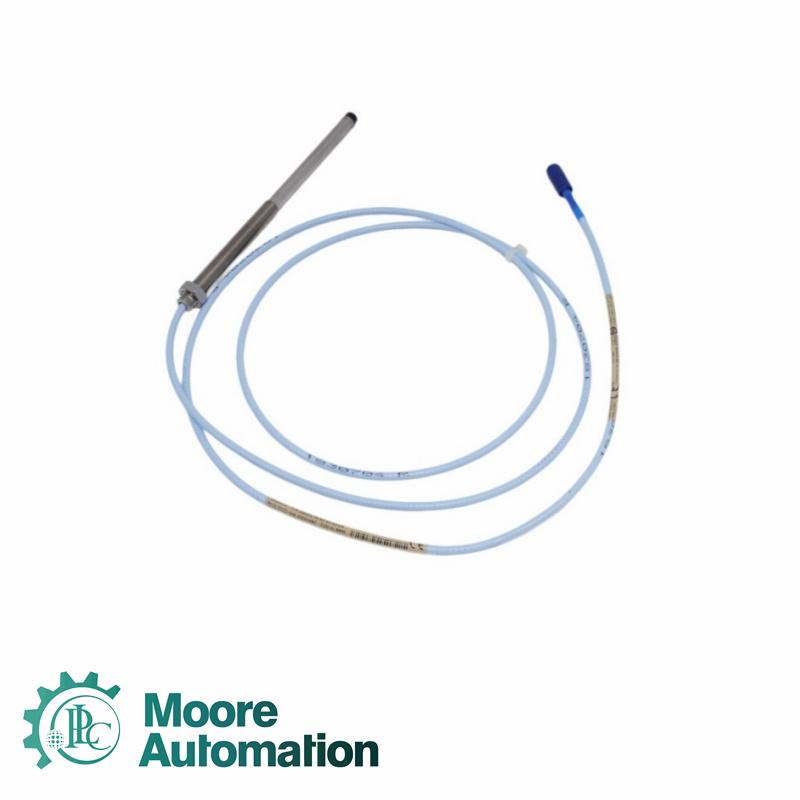

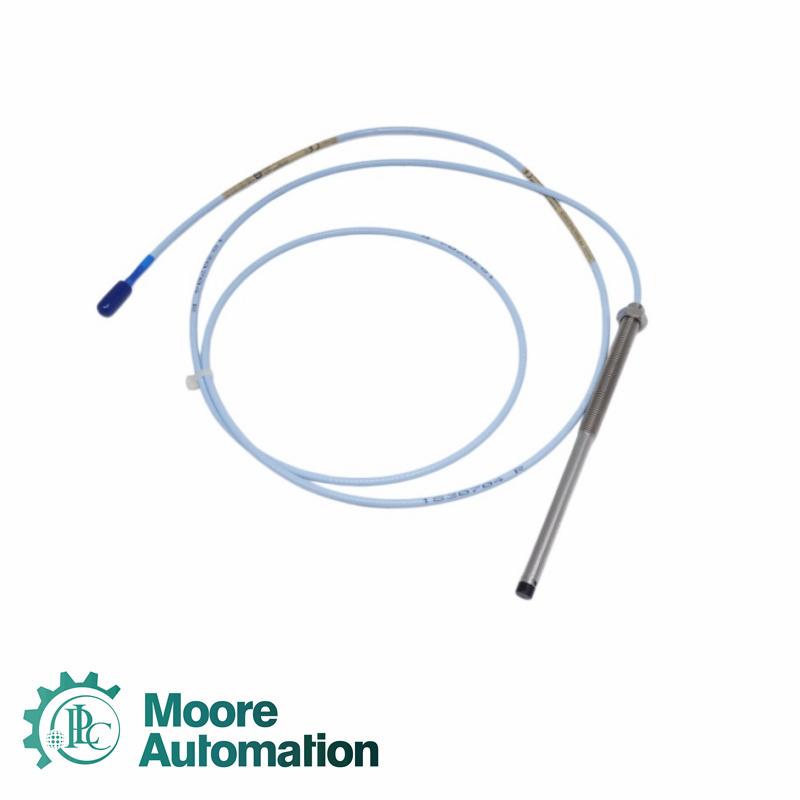

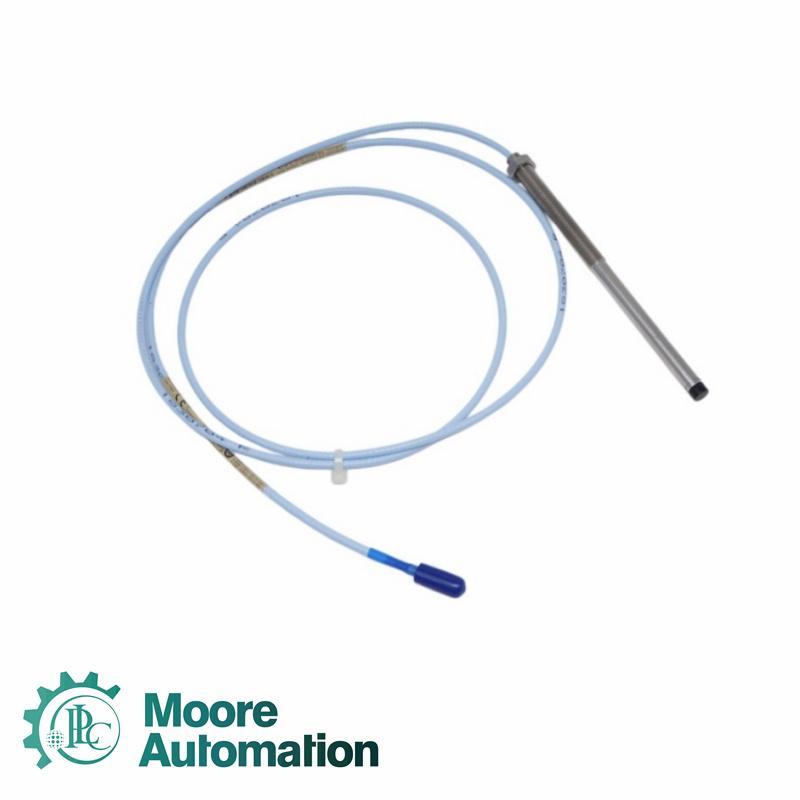

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
Property
Characteristics
Unthreaded Length Option (Minimum):
3.0 in
Overall Case Length Option (Minimum):
6.3 in
Total Length:
1.5 m (4.9 ft)
Connector Type:
Miniature coaxial ClickLoc connector, standard cable
Agency Approval:
CSA, ATEX, IECEx
Probe Case Thread:
3/8-24 UNF
Max Thread Engagement Length:
0.563 in
Dimensions:
22 x 20 x 2 cm
Weight:
0.12 kg
Operating and Storage Temperature:
-52 °C to +177 °C (-62 °F to +350 °F)
Supply Sensitivity:
< 2 mV change in output voltage per volt change in input voltage
Output Resistance:
50 Ω
Extension Cable Capacitance:
69.9 pF/m (21.3 pF/ft) typical
Field Wiring:
0.2 to 1.5 mm² (16 to 24 AWG)
Linear Range:
2 mm (80 mils)
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Quick to get a competitive price |
|
Sale Manager: John Yang |
|
More brands you may want to find |
|
----(DCS)Distributed Control System ABB/Invensys/Foxboro/Invensys Triconex/Westinghouse/Woodword/HIMA/Yokogawa/Honeywell/Emerson ----(PLC)Programmable Logic Controller Rockwell/Allen-Bradley/Schneider/Modicon/GE Fnauc/Siemens/Prosoft/Bachmann/Woodhead ----(TSI)Turbocharger Stratified Injection Bently Nevada/EPRO/ENTEK |
Application
Natural Gas/Refinery Plants: Large centrifugal compressors and expanders (must meet China's CCC explosion-proof certification).
Energy & Chemical Industry: Key rotating units and large blowers in coal chemical plants.
Power Engineering: Long-term monitoring of industrial steam turbines and extra-large electric motors.
FAQ
Q: What is the 330101-30-63-15-02-CN?
A: It is a 3300 XL 8 mm Proximity Probe.
Q: Why is this 330101-30-63-15-02-CN cable 1.5 meters long?
A: The 1.5-meter length is a non-standard special configuration by Bentley, typically used in special scenarios where mounting holes are extremely deep and connectors need to extend to the outside of the unit casing.
Q: Can 330101-30-63-15-02-CN directly replace the model without -CN?
A: The physical parameters are the same, but for sites in China with safety audits or explosion-proof requirements, the model with -CN must be used. The standard version cannot be substituted.
Q: Does installation require calibration of 330101-30-63-15-02-CN?
A: It needs to be matched with a 3300 XL series preamplifier. After installation, a linearity calibrator (TK-3) must be used to check the output voltage to ensure the probe is centered within the linear measurement range.
